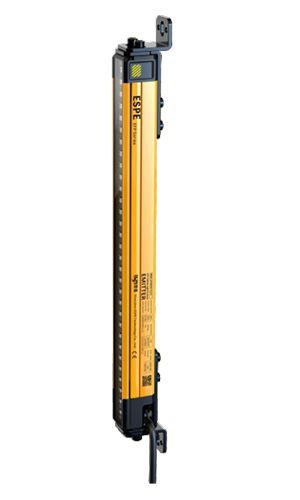

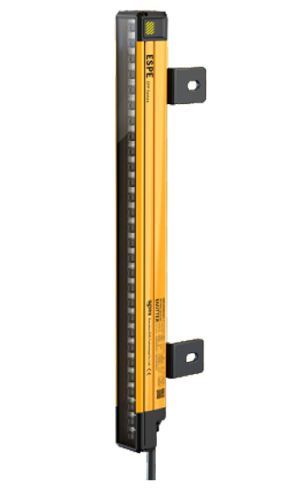

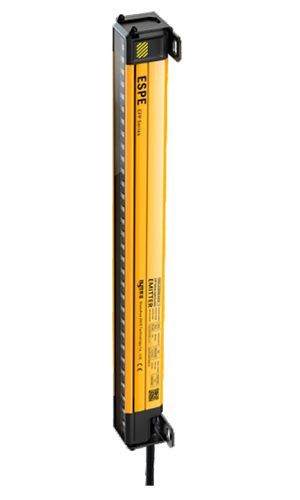

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

Brand: ESPE


Model: EFP Series

Product Feature:
1. Inquire to get latest price, goods can be finished within 2-3 working days.
2. EFP series is no dead-zone safety light curtain, in accordance with EU type 4 safety standards.
3. Adopting the internal MCU redundancy design, the safety light curtain has periodic self-inspection & mutual check function. Redundantdual output loop to ensure high security.

  • Product Details
  • Model Selection Table

Product Details

Parameter of safety light curtain
Safety Standard

Type 4 (IEC 61496-1/-2) Cat.4, PLe (ISO 13849-1)

Supply voltageDC24V±20%
Capacity<5W
Beam space10mm, 20mm,40mm
Resolution15mm, 25mm,45mm
Beams

10mm beam space:16, 20……160
20mm beam space: 8, 10……80

40mm beam space:4,6,……40

Protective heightS=N*Beam space+Resolution, N=Beams
Wave length940nm
Response time≤2*(N*0.1+3)ms (N is beams)
Type of output(OSSD)PNP/NPN semiconductors,current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire).
Protective circuitOverload voltage protection, power supply reverse polarity protection, over current protection.
Sensing distance0.1~5m、0.2~12m (remark: If have light reflection, please let us know)
Anti-optical interference10000Lux (angle>2.5°)
Sensing methodThrough-beam type
SynchronizationOptical-syn/ Wire-syn
Enclosure materialAluminum alloy
Enclosure ratingIP65
Housing cross-section30*28mm
Vibration resistance10 Hz~55 Hz, amplitude 0.35±0.05mm, 20 times each in X, Y, Z direction
Shock resistance100/s²(10G), 1000 times each at X, Y, Z directions
Ambient operating temperature-10℃~55℃(no freezing)
Storage temperature-30℃~70℃(no freezing)
Ambient operating humidityWhen temperature is 20℃,humidity max. 85%
T (Operation time)(ISO 13849-1)

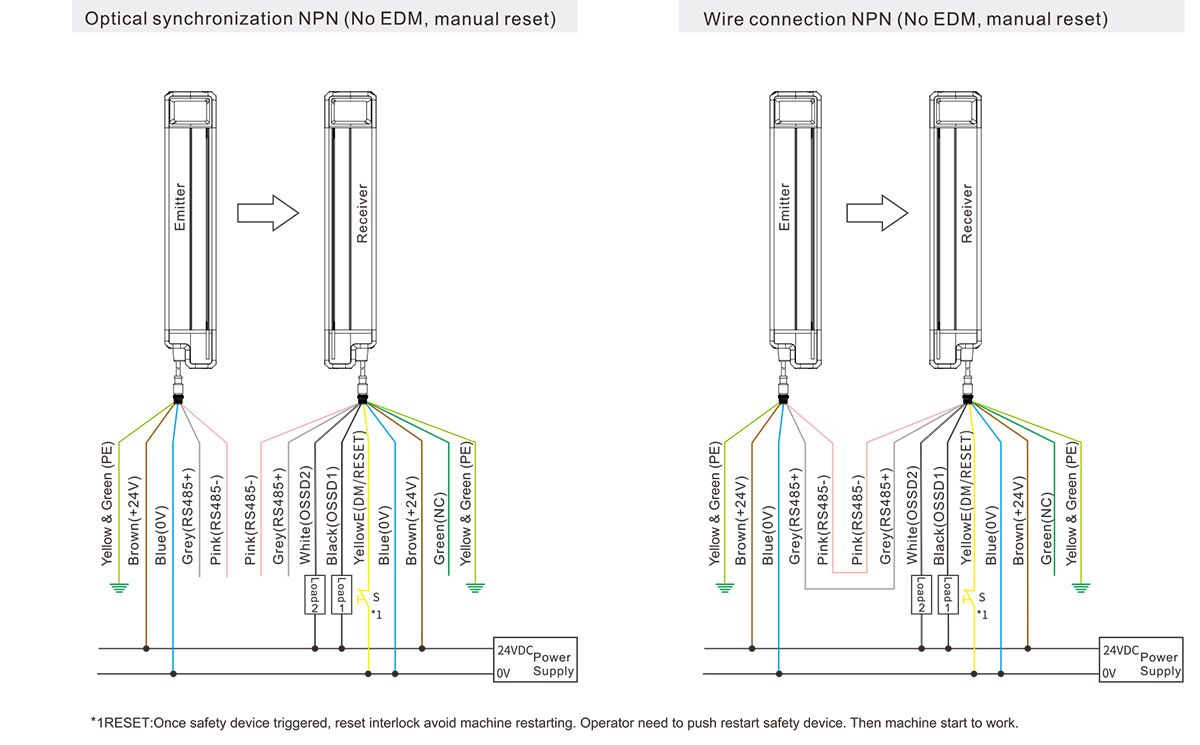

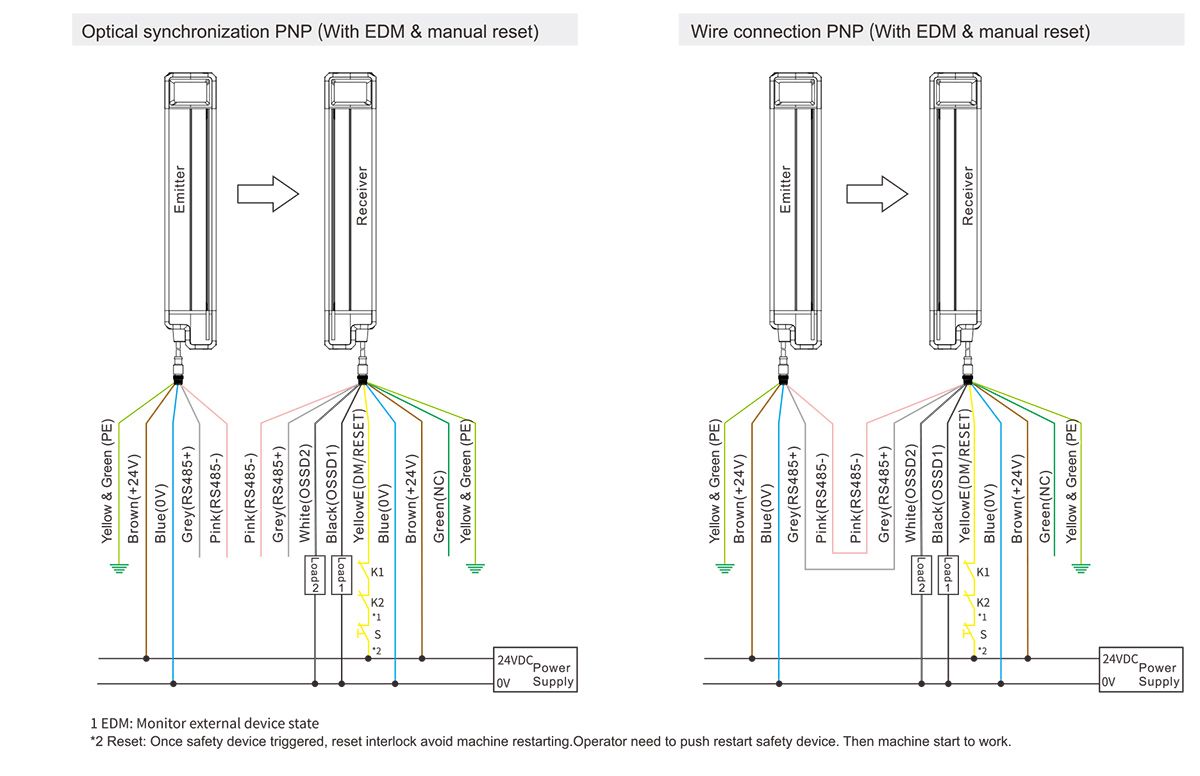

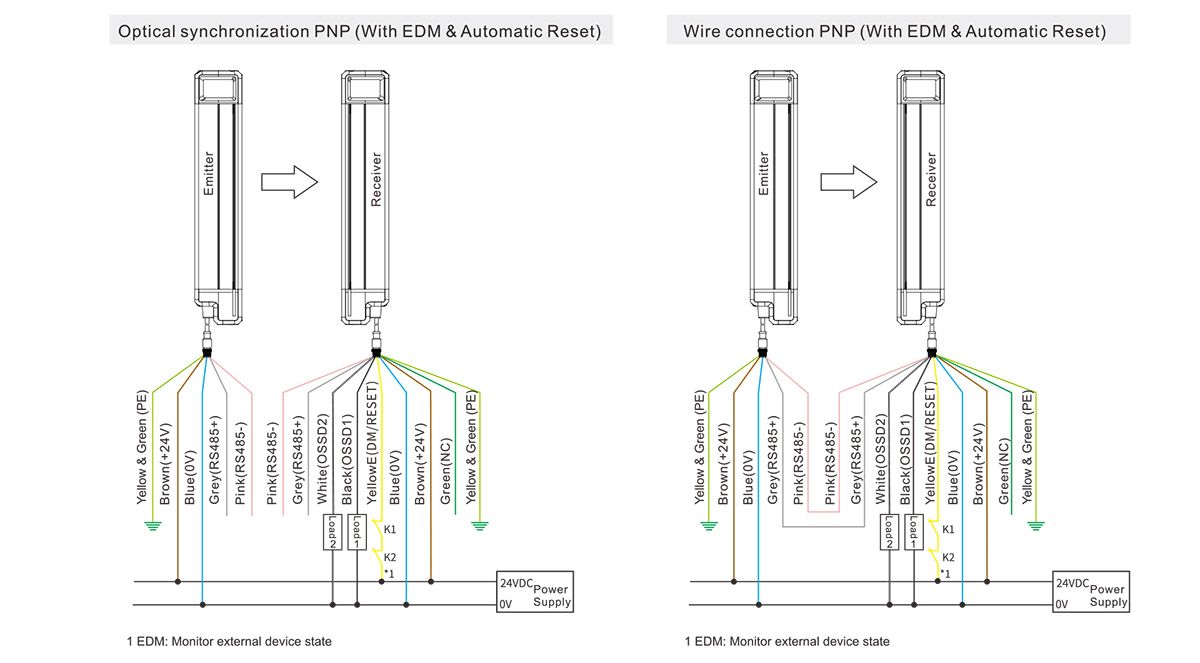

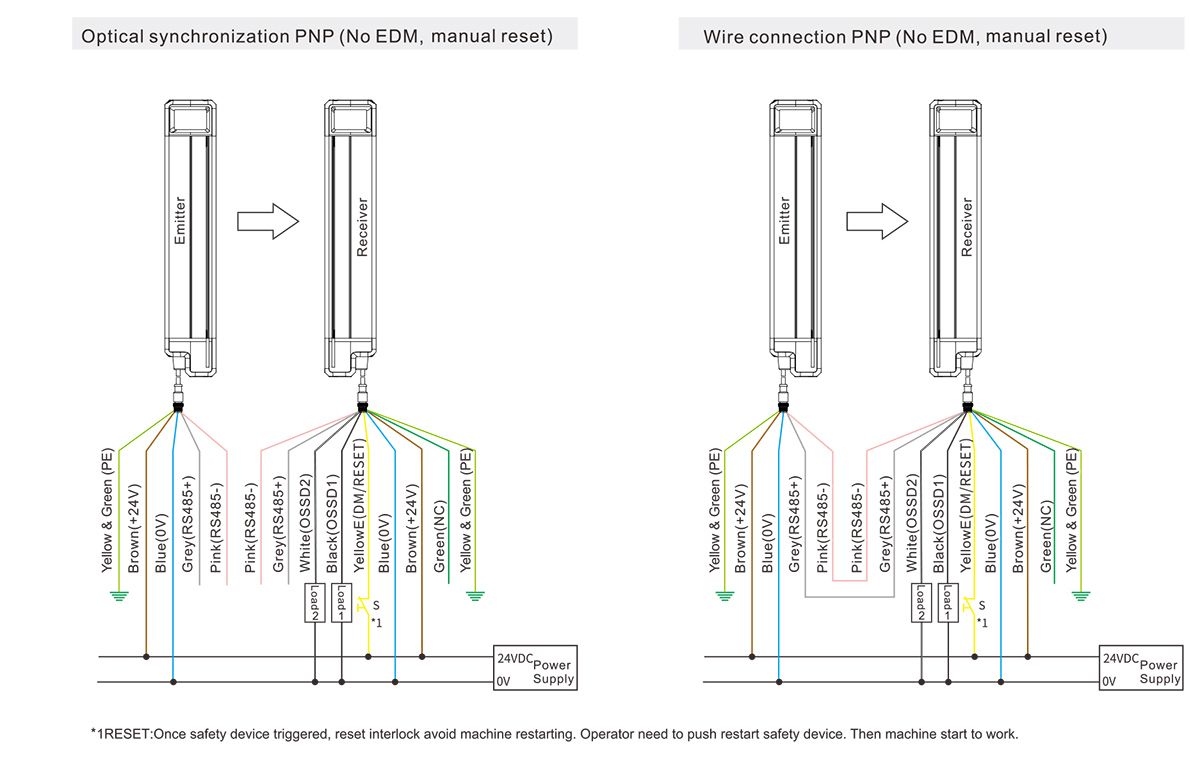

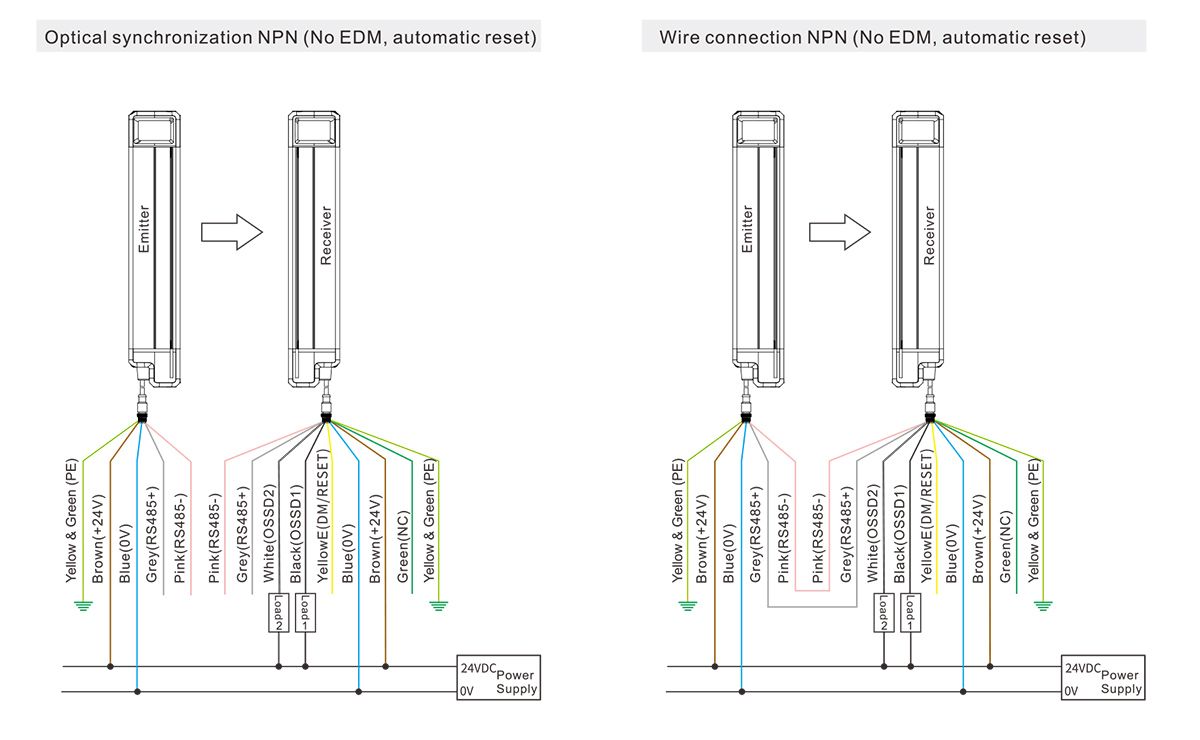

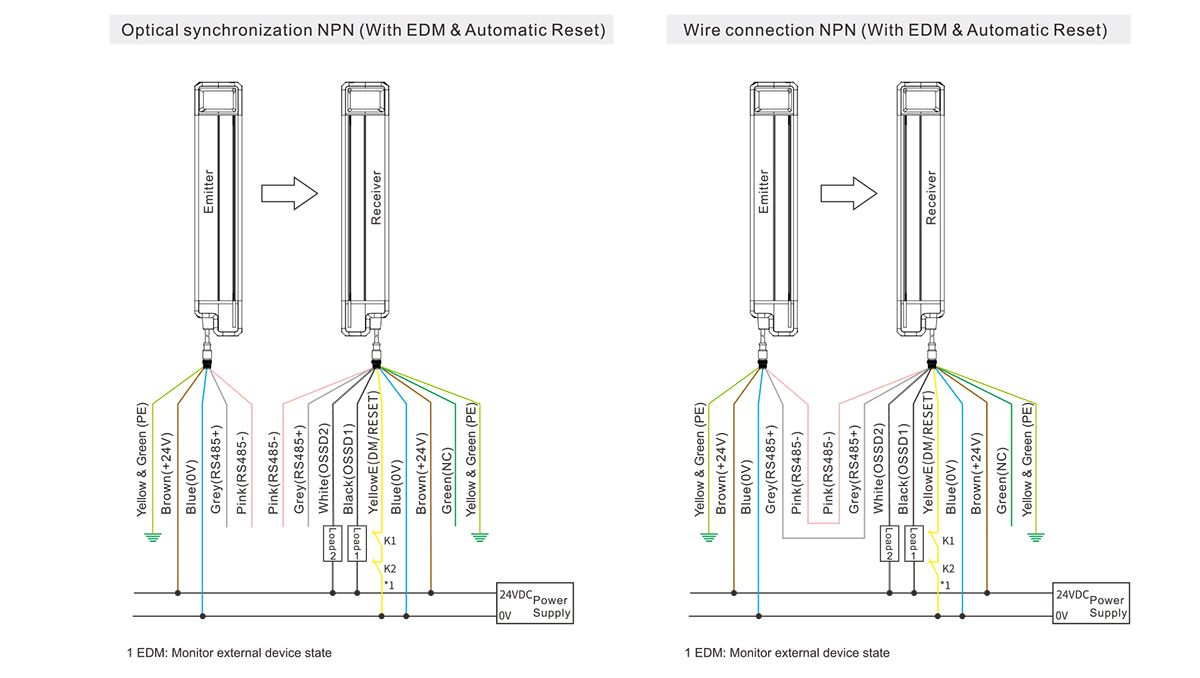

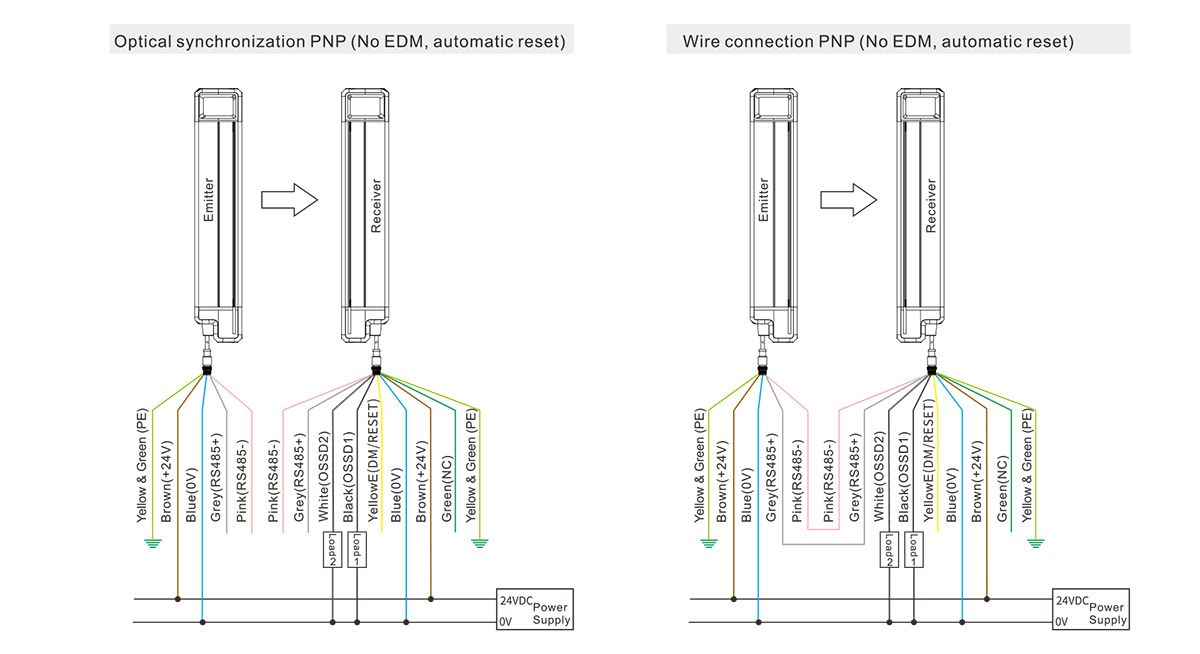

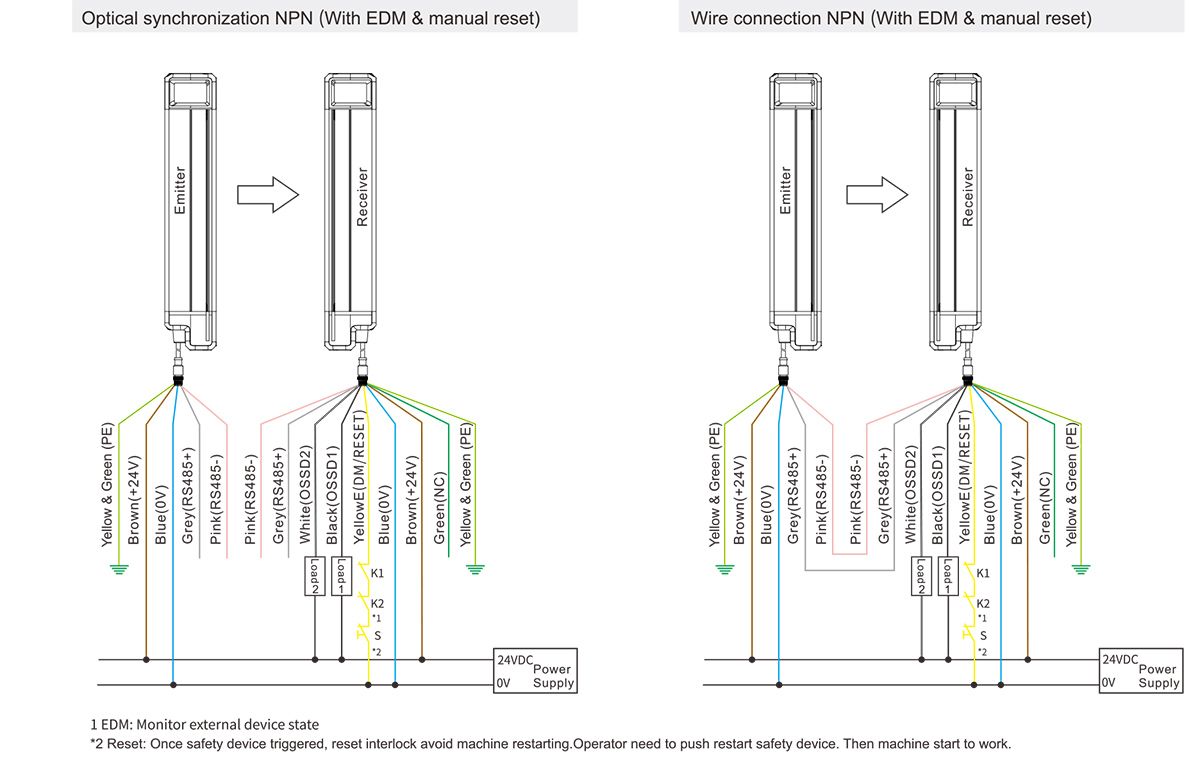

Wire Connection

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

No-dead zone safety light curtain

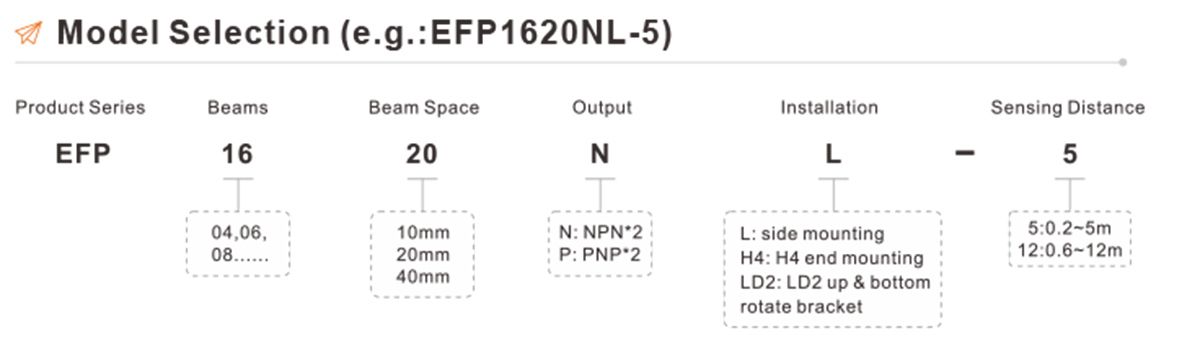

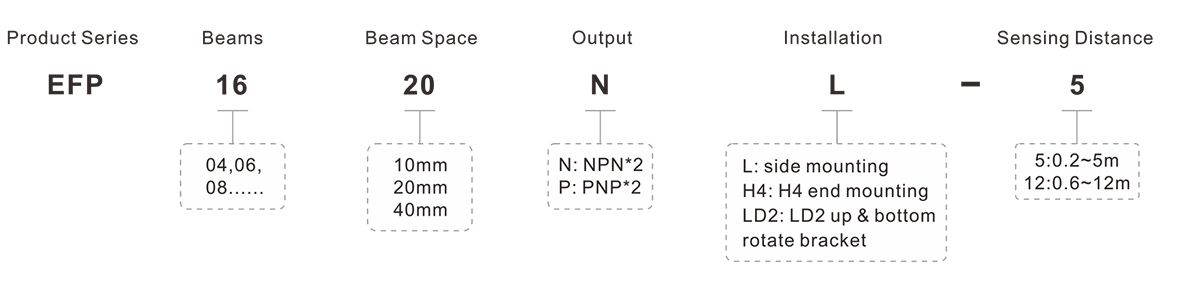

Model Selection (e.g.:EFP1620NL-5)

No-dead zone safety light curtain

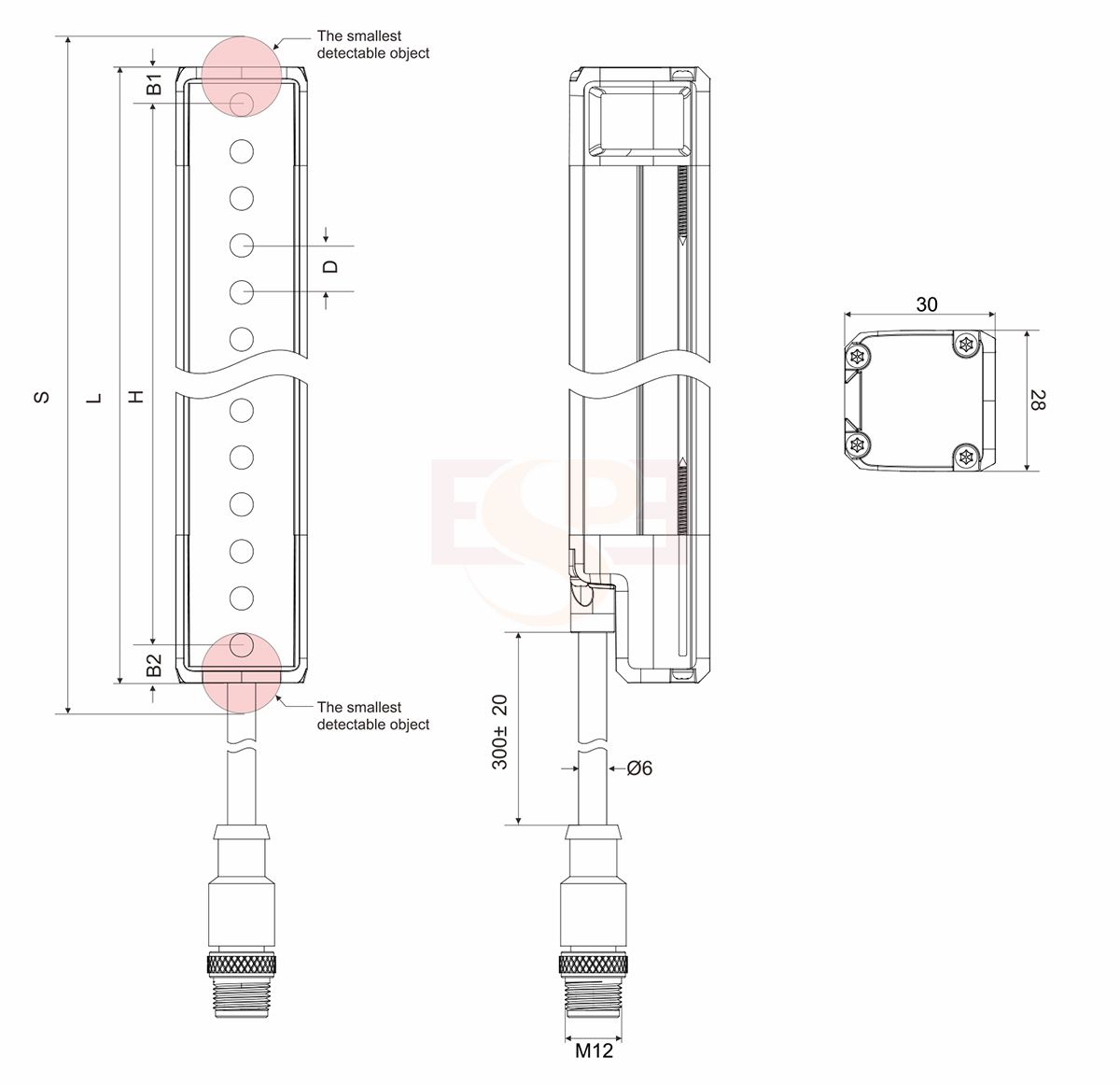

Product Size

No-dead zone safety light curtain

D=10mm;B1=8mm,B2=8mm

D=20mm;B1=8mm,B2=8mm

D=40mm;B1=18mm,B2=18mm

H=(N-1)xBeam space,N=Beams

S=NxBeam space+Resolution,N=Beams

L=B1+H+B2


 Indicator Light

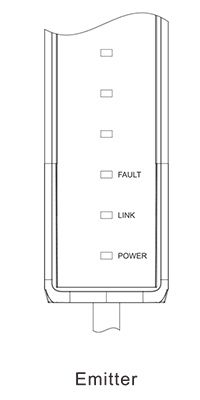

Emitter working state description
No-dead zone safety light curtainPowerLinkFaultDescription
Green ONGreen ONOFFNormal working
Green ONGreen(1Hz)OFFInitializing
Green ONGreen(2Hz)RedWire-syn poor connection or broken
Green(1Hz)OFFRedUndervoltage, Please check
Green(2Hz)OFFRedOvervoltage, please check
Green ONOFFRedInternal failure, repair or replace
OFFOFFOFFInternal failure, repair or replace

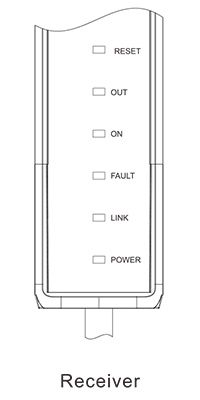

Receiver Indicator Specification
No-dead zone safety light curtainPowerLinkFaultONOUTResetFunction
Green ONGreen ONOFFGreen ONGreen ONOFFNormal working
Green ONGreen(1Hz)OFFOFFRed ONOFFInitializing
Green ONGreen(2Hz)OFFOFFRed ONOFFNot synchronized with the light
Green ONGreen ONOFFGreen ONRed ONYellow ONRESET

Green(1Hz)

OFFRedOFFRed ONOFFUndervoltage, please check power supply
Green(2Hz)OFFRedOFFRed ONOFF

Overvoltage, please check power supply

Green ONOFFRed(1Hz)OFFRed ONOFF

EDM fault

Green ONOFFRed(2Hz)OFFRed ONOFF2 Output Short-Circuit
Green ONOFFRed(4Hz)OFFRed ONOFFOutput Overload
Green ONOFFRedOFFRed ONOFFInternal failure, repair or replace
OFFOFFOFFOFFRed ONOFF

Internal failure, repair or replace


Option for Brackets

Installation picture

Bracket Name

Brackets Size

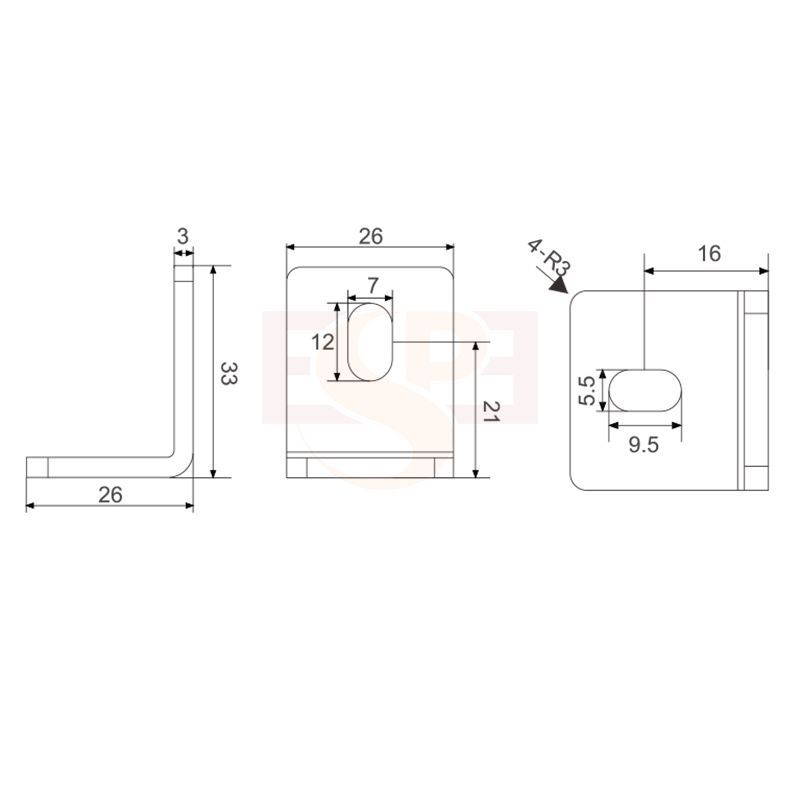

L side mountingbracket


L1 bracket (4pcs)

M5 Slider (4pcs)

M6 gasket (4pcs)

M6 spring washer (4pcs)

M6*16 screw (4pcs)

M6*8 screw (4pcs)

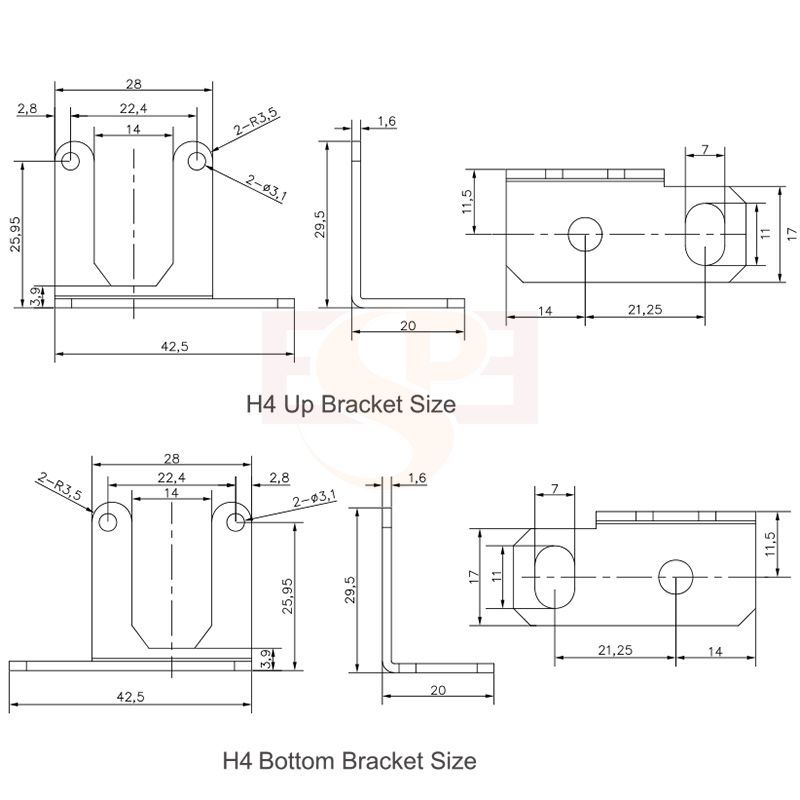

H4 up & bottom mounting bracket


Up & bottom bracket (4pcs)

M6 pad (4pcs)

M6 spring washer (4pcs)

M3*6 screw (4pcs)

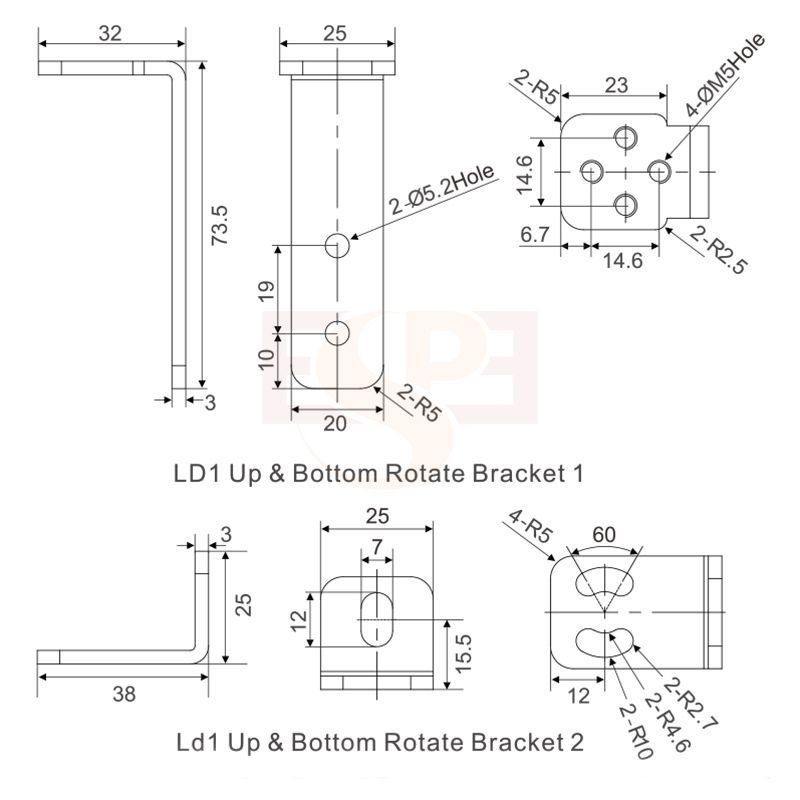

LD1 up & bottom rotate bracket

LD1 rotate brackets 1(4pcs)

LD1 rotate brackets 2 (4pcs)

M5 slider (8pcs)

M5 gasket (4pcs)

M6 spring washer (4pcs)

M6*16 screw (4pcs)

M5*6 screw (16pcs)


Beam space 10mm

BeamsProtective height(mm)Total height(mm)Model3D File
16150166EFP1610Download
20190206EFP2010Download
24230246EFP2410Download
28270286EFP2810Download
32310326EFP3210Download
36350366EFP3610Download
40390406EFP4010Download
44430446EFP4410Download
48470486EFP4810Download
52510526EFP5210Download
56550566EFP5610Download
60590606EFP6010Download
64630646EFP6410Download
68670686EFP6810Download
72710726EFP7210Download
76750766EFP7610Download
80790806EFP8010Download
84830846EFP8410Download
88870886EFP8810Download
92910926EFP9210Download
96950966EFP9610Download
1009901006EFP10010Download
10410301046EFP10410Download
10810701086EFP10810Download
11211101126EFP11210Download
11611501166EFP11610Download
12011901206EFP12010Download
12412301246EFP12410Download
12812701286EFP12810Download
13213101326EFP13210Download
13613501366EFP13610Download
……………………
16015901606EFP16010Download

Beam space 20mm

BeamsProtective height(mm)Total height(mm)Model3D File
8140156EFP0820Download
10180196EFP1020Download
12220236EFP1220Download
14260276EFP1420Download
16300316EFP1620Download
18340356EFP1820Download
20380396EFP2020Download
22420436EFP2220Download
24460476EFP2420Download
26500516EFP2620Download
28540556EFP2820Download
30580596EFP3020Download
32620636EFP3220Download
34660676EFP3420Download
36700716EFP3620Download
38740756EFP3820Download
40780796EFP4020Download
42820836EFP4220Download
44860876EFP4420Download
46900916EFP4620Download
48940956EFP4820Download
50990996EFP5020Download
5210201036EFP5220Download
5410601076EFP5420Download
5611001116EFP5620Download
5811401156EFP5820Download
6011801196EFP6020Download
6212201236EFP6220Download
6412601276EFP6420Download
6613001316EFP6620Download
6813401356EFP6820Download
…………………………
8015801596EFP8020Download
