Technical Parameters
Parameter of safety light curtain | |
Power supply | DC10V~30V |
Capacity | <5W |
Beam space | 10mm、20mm、40mm |
Resolution | 15mm、25mm、45mm |
Beams | 10mm beam space:8, 12, 16……16020mm beam space:4, 6, 8……8040mm beam space: 4, 6, 8……40 |
Protective height | Protective height =(N-1)*beam space,N is beam quantity |
Wave length | 940nm |
Response time | Response time =(N * 0.1ms) + 0.4ms(N is beam quantity) |
Type of output(OSSD) | PNP/ NPN semiconductors, current <200mA, residual voltage: 1 V max, (Expect voltage influenced by lengthen wire) |
Protective circuit | Over voltage protection, power supply reverse polarity protection, over current protection |
Sensing distance | 0.1~0.5m、0.1~2m、0.1~4m (remark: if have light reflection, please let us know) |
Anti-optical interference | 10000Lux(angle >5°) |
Sensing method | Through-beam type |
Synchronization | Wire synchronization |
Enclosure material | Aluminum alloy |
Enclosure rating | IP54 |

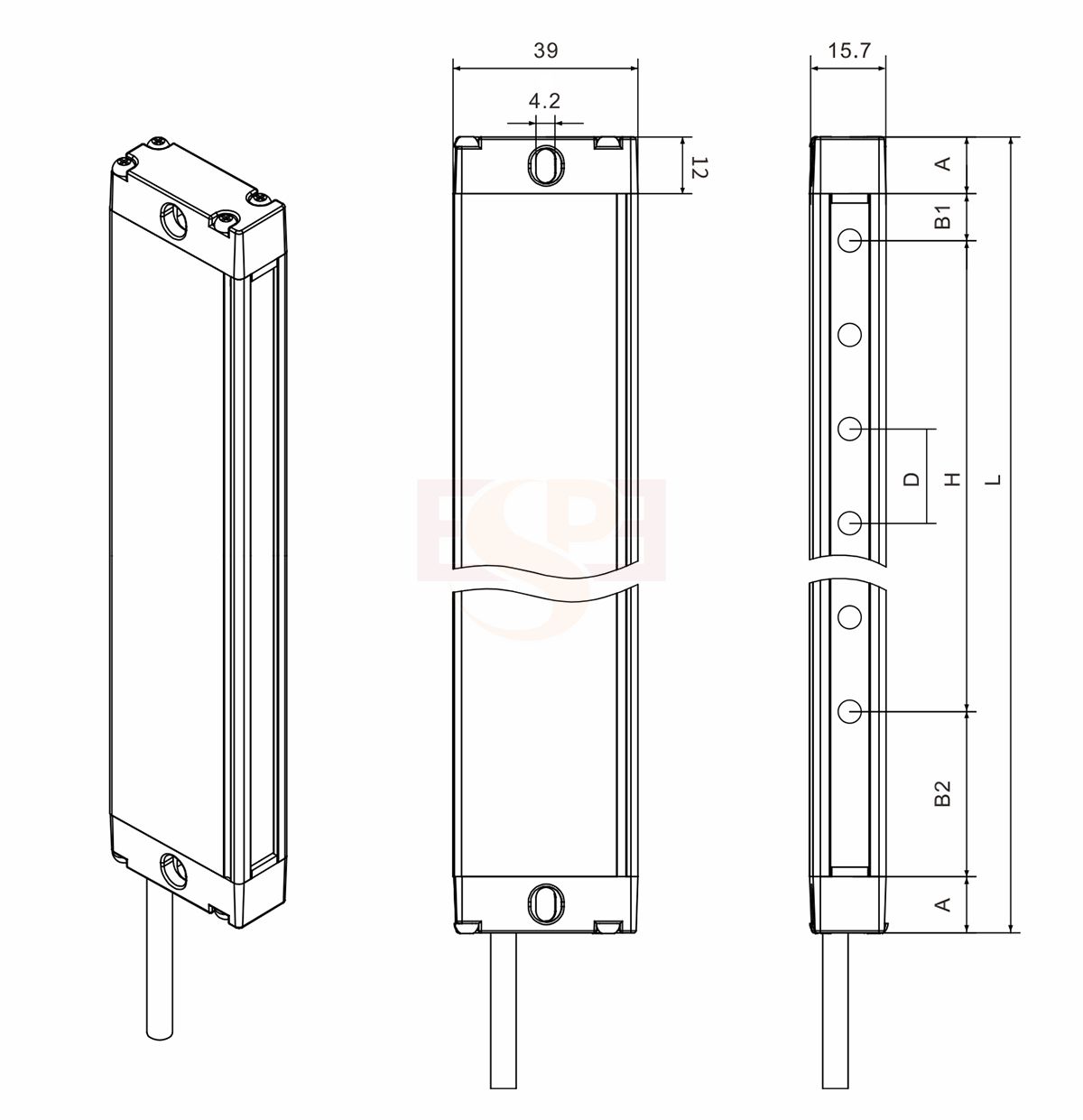

Housing cross-section | 39*15mm |
Vibration resistance | 10Hz~55Hz,amplitude0.35±0.05mm,20 times each in X、Y、Z direction |
Ambient operating temperature | -10℃-55℃(without freezing) |
Storage temperature | -30℃~70℃(without freezing) |
Ambient operating humidity | When temperature is 20℃,humidity max 85% |

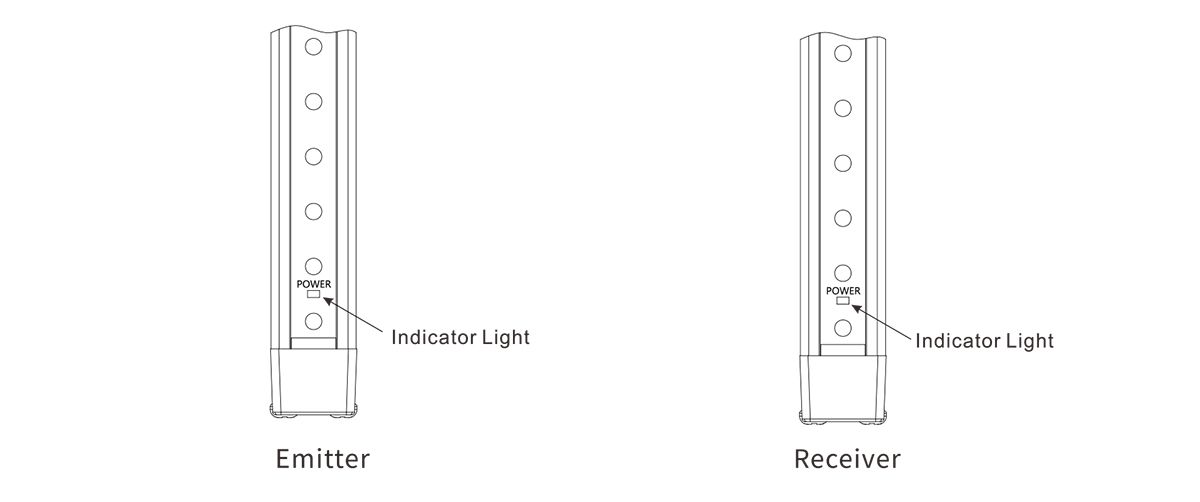

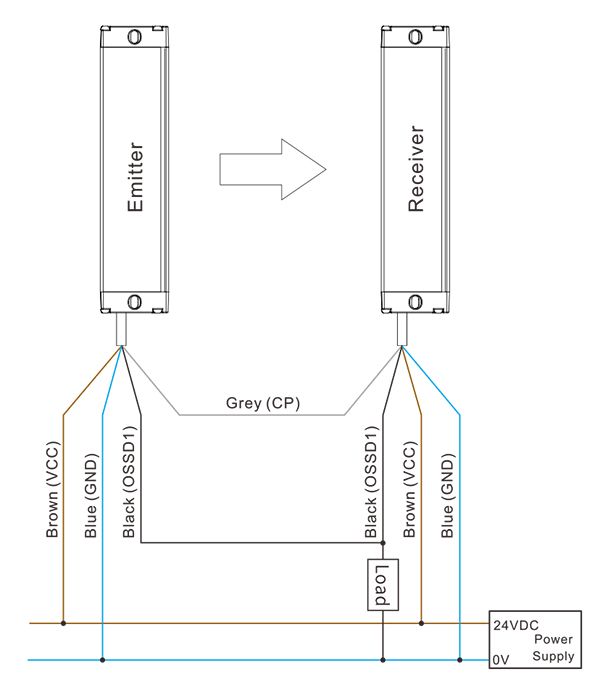

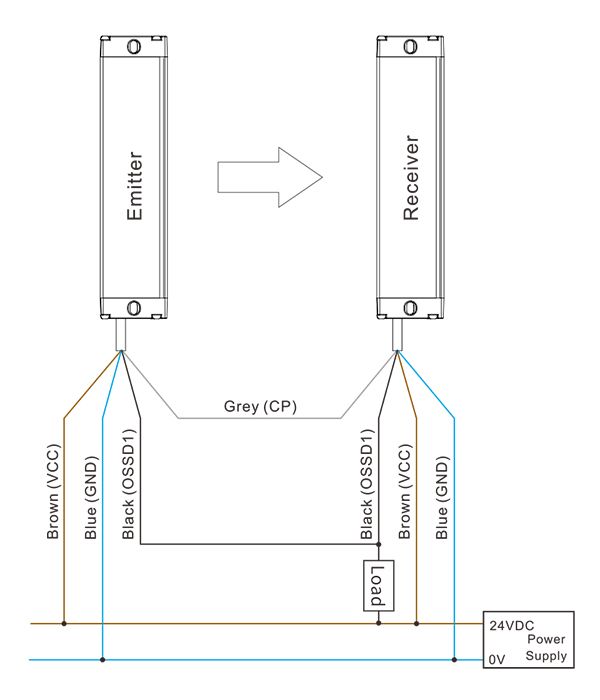

Wire Connection

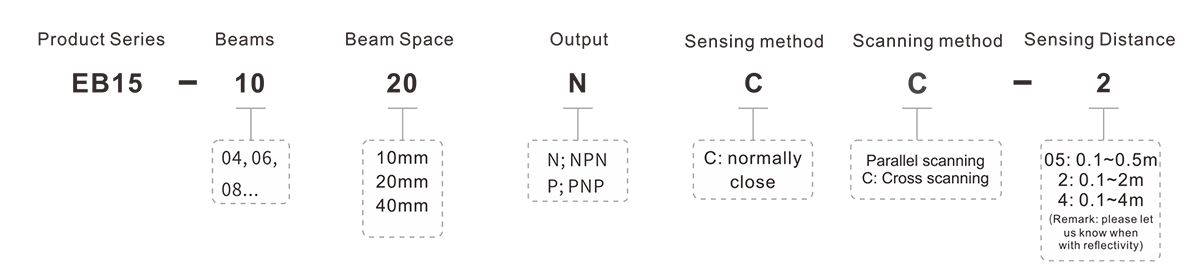

Beam space 10mm
Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
8 | 70 | 120 | EB15-0810 | Download |
12 | 110 | 160 | EB15-1210 | Download |
16 | 150 | 200 | EB15-1610 | Download |
20 | 190 | 240 | EB15-2010 | Download |
24 | 230 | 280 | EB15-2410 | Download |
28 | 270 | 320 | EB15-2810 | Download |
32 | 310 | 360 | EB15-3210 | Download |
36 | 350 | 400 | EB15-3610 | Download |
40 | 390 | 440 | EB15-4010 | Download |
44 | 430 | 480 | EB15-4410 | Download |
48 | 470 | 520 | EB15-4810 | Download |
52 | 510 | 560 | EB15-5210 | Download |
56 | 550 | 600 | EB15-5610 | Download |
60 | 590 | 640 | EB15-6010 | Download |
64 | 630 | 680 | EB15-6410 | Download |
68 | 670 | 720 | EB15-6810 | Download |
72 | 710 | 760 | EB15-7210 | Download |
76 | 750 | 800 | EB15-7610 | Download |
80 | 790 | 840 | EB15-8010 | Download |
84 | 830 | 880 | EB15-8410 | Download |
88 | 870 | 920 | EB15-8810 | Download |
92 | 910 | 960 | EB15-9210 | Download |
96 | 950 | 1000 | EB15-9610 | Download |
100 | 990 | 1040 | EB15-10010 | Download |
104 | 1030 | 1080 | EB15-10410 | Download |
108 | 1070 | 1120 | EB15-10810 | Download |
112 | 1110 | 1160 | EB15-11210 | Download |
116 | 1150 | 1200 | EB15-11610 | Download |
120 | 1190 | 1240 | EB15-12010 | Download |
124 | 1230 | 1280 | EB15-12410 | Download |
128 | 1270 | 1320 | EB15-12810 | Download |
…… | …… | …… | …… | |
160 | 1590 | 1640 | EB15-16010 | Download |
Beam space 20mm
Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
4 | 60 | 120 | EB15-0420 | Download |
6 | 100 | 160 | EB15-0620 | Download |
8 | 140 | 200 | EB15-0820 | Download |
10 | 180 | 240 | EB15-1020 | Download |
12 | 220 | 280 | EB15-1220 | Download |
14 | 260 | 320 | EB15-1420 | Download |
16 | 300 | 360 | EB15-1620 | Download |
18 | 340 | 400 | EB15-1820 | Download |
20 | 380 | 440 | EB15-2020 | Download |
22 | 420 | 480 | EB15-2220 | Download |
24 | 460 | 520 | EB15-2420 | Download |
26 | 500 | 560 | EB15-2620 | Download |
28 | 540 | 600 | EB15-2820 | Download |
30 | 580 | 640 | EB15-3020 | Download |
32 | 620 | 680 | EB15-3220 | Download |
34 | 660 | 720 | EB15-3420 | Download |
36 | 700 | 760 | EB15-3620 | Download |
38 | 740 | 800 | EB15-3820 | Download |
40 | 780 | 840 | EB15-4020 | Download |
42 | 820 | 880 | EB15-4220 | Download |
44 | 860 | 920 | EB15-4420 | Download |
46 | 900 | 960 | EB15-4620 | Download |
48 | 940 | 1000 | EB15-4820 | Download |
50 | 980 | 1040 | EB15-5020 | Download |
52 | 1020 | 1080 | EB15-5220 | Download |
54 | 1060 | 1120 | EB15-5420 | Download |
56 | 1100 | 1160 | EB15-5620 | Download |
58 | 1140 | 1200 | EB15-5820 | Download |
60 | 1180 | 1240 | EB15-6020 | Download |
62 | 1220 | 1280 | EB15-6220 | Download |
64 | 1260 | 1320 | EB15-6420 | Download |
…… | …… | …… | …… | |
80 | 1580 | 1640 | EB15-8020 | Download |
Beam space 40mm
Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
4 | 120 | 164 | EB15-0440 | Download |
6 | 200 | 244 | EB15-0640 | Download |
8 | 280 | 324 | EB15-0840 | Download |
10 | 360 | 404 | EB15-1040 | Download |
12 | 440 | 484 | EB15-1240 | Download |
14 | 520 | 564 | EB15-1440 | Download |
16 | 600 | 644 | EB15-1640 | Download |
18 | 680 | 724 | EB15-1840 | Download |
20 | 760 | 804 | EB15-2040 | Download |
22 | 840 | 884 | EB15-2240 | Download |
24 | 920 | 964 | EB15-2440 | Download |
26 | 1000 | 1044 | EB15-2640 | Download |
28 | 1080 | 1124 | EB15-2840 | Download |
30 | 1160 | 1204 | EB15-3040 | Download |
32 | 1240 | 1284 | EB15-3240 | Download |
34 | 1320 | 1364 | EB15-3440 | Download |
36 | 1400 | 1444 | EB15-3640 | Download |
38 | 1480 | 1524 | EB15-3840 | Download |
40 | 1560 | 1604 | EB15-4040 | Download |
