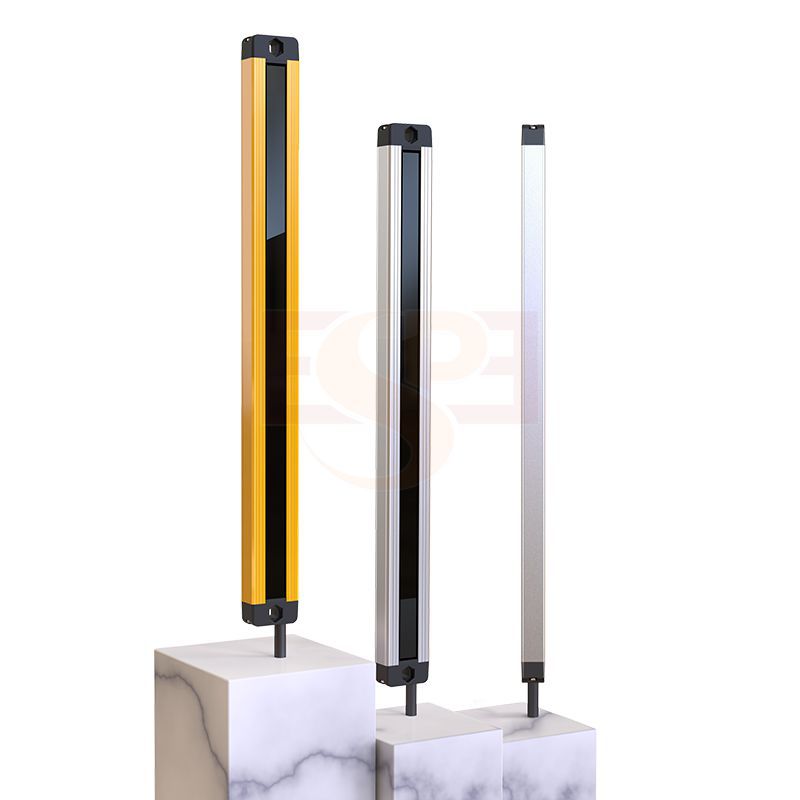

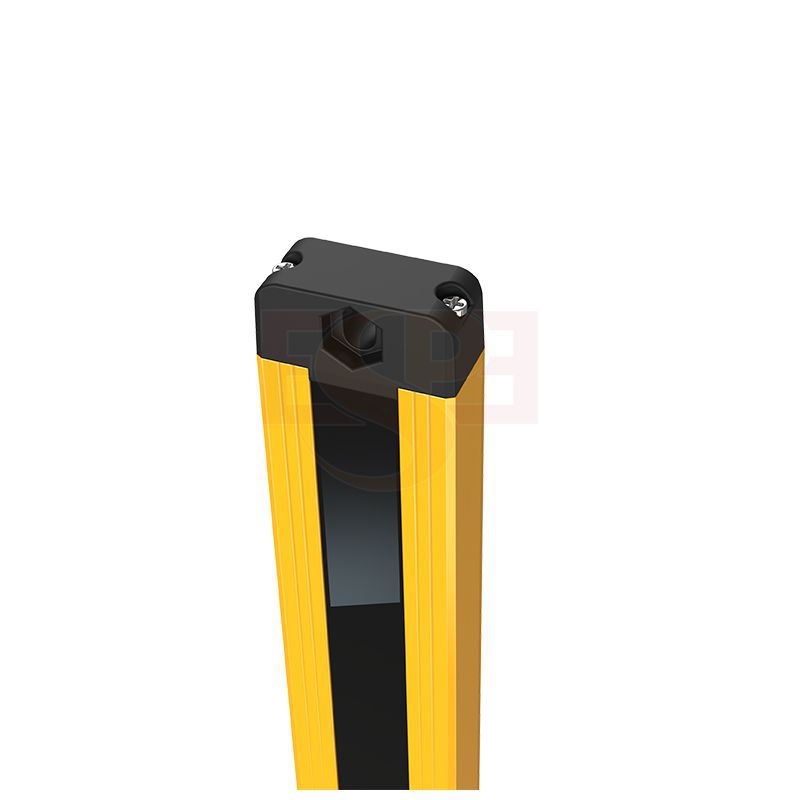

EB13 Ultra-thin Safety Light Curtain

Brand: ESPE

Model: EB13 Series

Product Feature:

1. Price range: $61-$681/set (Inquire to get latest price, goods can be finished within 2-3 working days.);

2. Self-inspection in whole process, excellent vibration resistance and performance stability;

3. Easy to align with optical axis, strong to fight against optical or electromagnetic interference;

4. Low power consumption design, short response time and high reliability.

Technical Parameters

Parameter of safety light curtain
Power supply	DC10V~30V
Capacity	<5W
Beam space	10mm, 20mm, 40mm
Resolution	15mm, 25mm, 45mm
Beams	10mm ：8, 12, 16……128 20mm ：4, 6, 8, 10……64 40mm ：4, 6, 8, 10……32
Protective height	Protective height =（N-1）*beam space，N is beam quantity
Wave length	940nm
Response time	Response time =(N* 0.1ms) + 0.4ms（N is beam quantity）
Type of output（OSSD）	PNP or NPN Load current ≤ 200mA, residual voltage ≤ 1V (except for voltage drop caused by cable extension)and leakage current ≤ 1mA.
Protective circuit	Overvoltage protection, power supply reverse polarity protection, over current
Sensing distance	0.1~0.5m、0.1~1m、0.1~2.5m(remark: if have light reflection, please let us know)
Anti-optical interference	10000Lux(angle >5°）
Sensing method	Thru-beam
Synchronization	Wire synchronization
Enclosure material	Aluminum alloy
Enclosure rating	IP54
Housing cross-section	28*13mm
Ambient operating temperature	-10℃-55℃（without freezing）
Storage temperature	-30℃～70℃（without freezing）
Ambient operating humidity	When temperature is 20℃，humidity max 85%

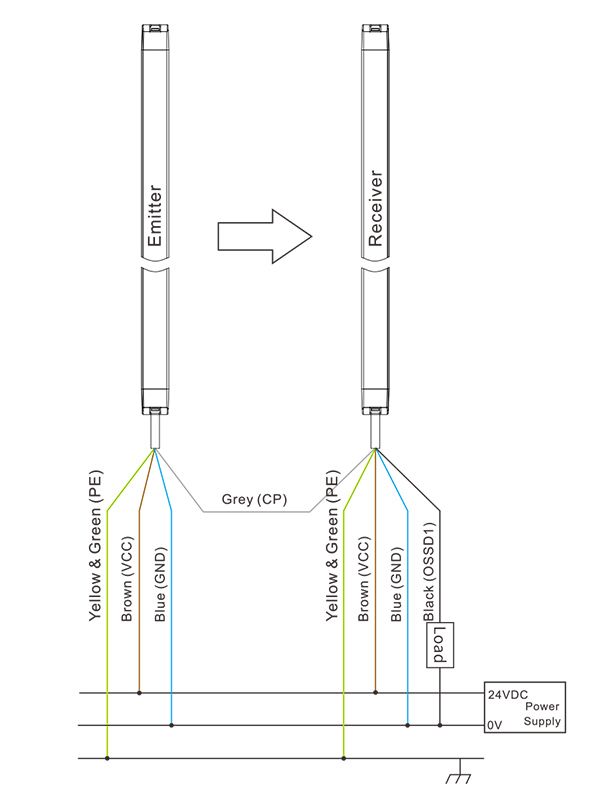

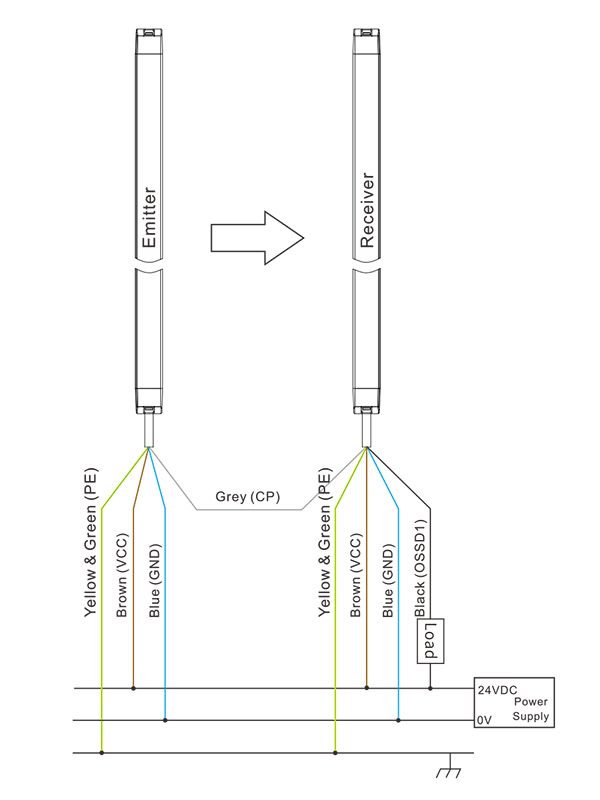

Wire Connection

NPN	PNP

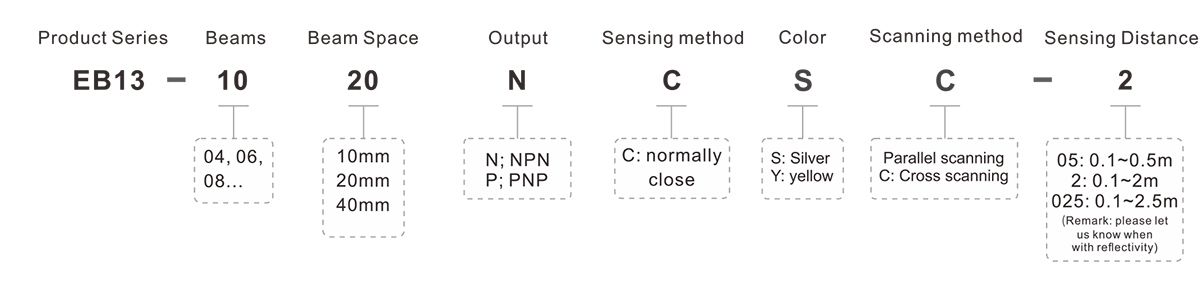

Explanation of Model Number

EB13 Ultra-thin Safety Light Curtain

Product Size

Economical Safety Light Curtain

A: Upper and bottom cover

B1: Upper stop-work range

B2: Bottom stop-work range

D: Beam space

H: Protective height

L: Total height

A=12mm;

When D=10mm,B1=5mm;B2=5mm

When D=20mm,B1=10mm;B2=10mm

When D=40mm,B1=10mm;B2=30mm

H is protective height:H=(beams-1)* beam space

L is total height: L=A+B1+B2+H

Option for Brackets

Installation picture

Bracket Name

Brackets Size

End screw fixing

Round M4*16 screw (4pcs)

Beam space10mm

Beam space20mm

Beam space40mm
