Technical Parameters
| Parameter of safety light curtain | |
| Supply voltage | DC10V~30V |
| Capacity | <5W |
| Beam space | 10mm, 20mm, 40mm |
| Resolution | 20mm, 30mm, 50mm |
| Beams | 10mm beam space:32, 36, 40……17620mm beam space: 16, 18, 20……8840mm beam space:8, 10, 12……44 |
| Protective height | Protective height =（N-1）*beam gap，N is beam quantity |
| Wave length | 940nm |
| Response time | Response time =(N * 0.1ms) + 0.4ms, N is beam quantity |
| Type of output（OSSD） | PNP/NPN semiconductors，current <200mA max, residual voltage: 1 V max. leakage current: 1mA max. (Expect voltage influenced by lengthen wire). |
| Protective circuit | Overload voltage protection, power supply reverse polarity protection, over current protection. |
| Sensing distance | 0.1~30m (If reflective light environment, please let us know in advanced) |
| Anti-optical interference | 10000Lux(I >5°) |
| Sensing method | Through-beam type |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Housing cross-section | 99.6*75mm |
| Vibration resistance | 10Hz～55Hz，double amplitude each in X、Y、Z directions for 20 times. |
| Ambient operating temperature | -10℃-55℃（with no freezing） |
| Storage temperature | -30℃～70℃（with no freezing） |
| Ambient operating humidity | When temperature is 20℃，humidity max 85% |

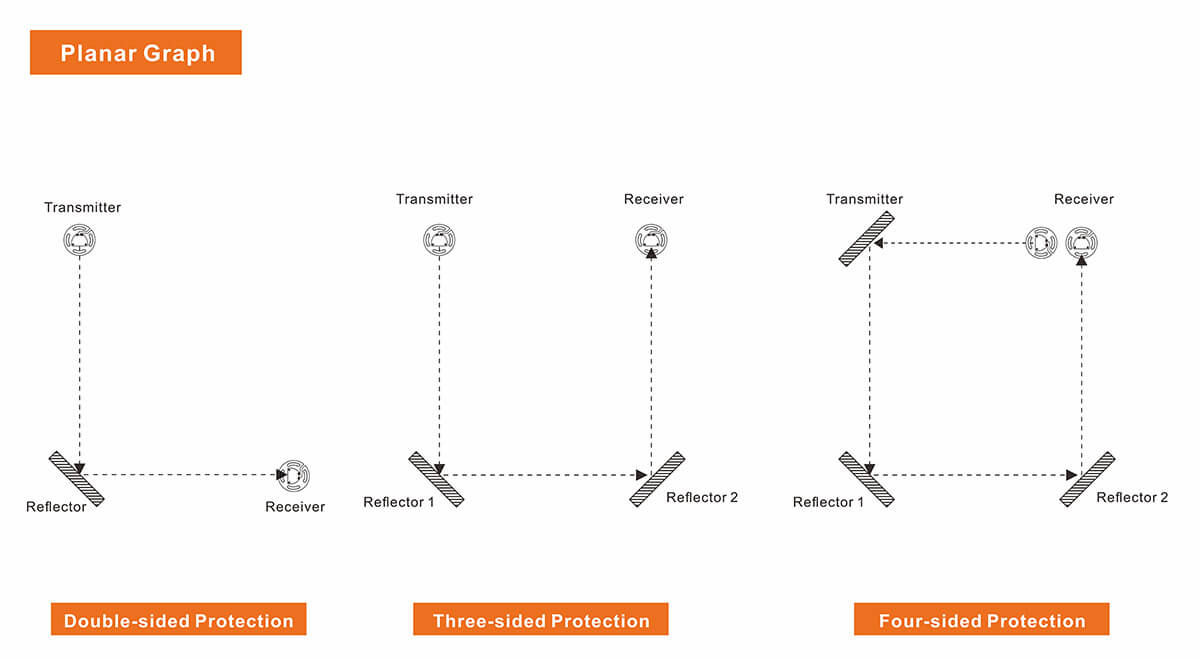

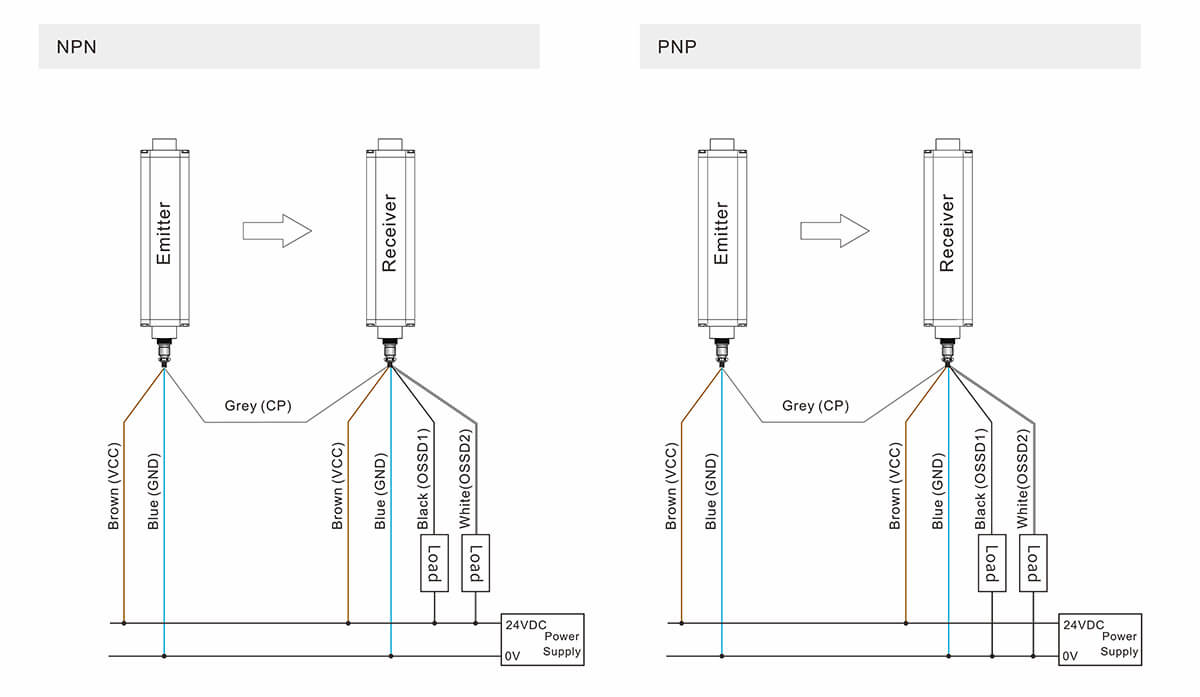

Wire Connection

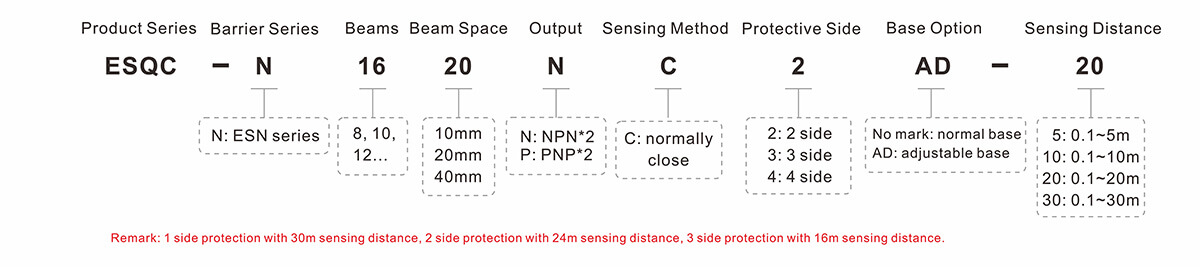

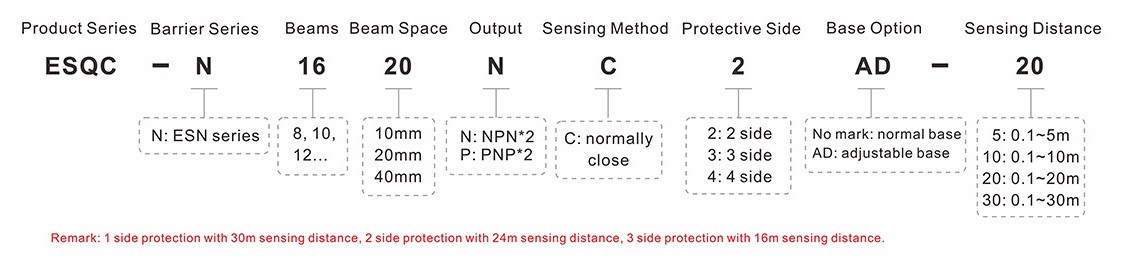

Explanation of Model Number

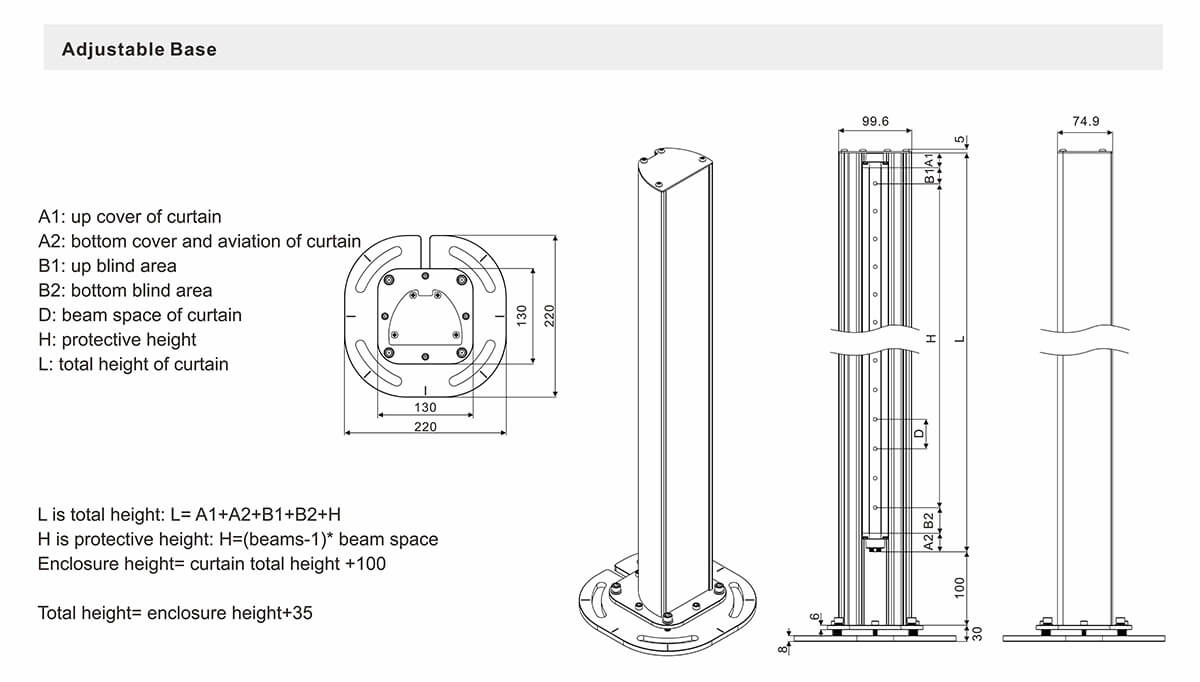

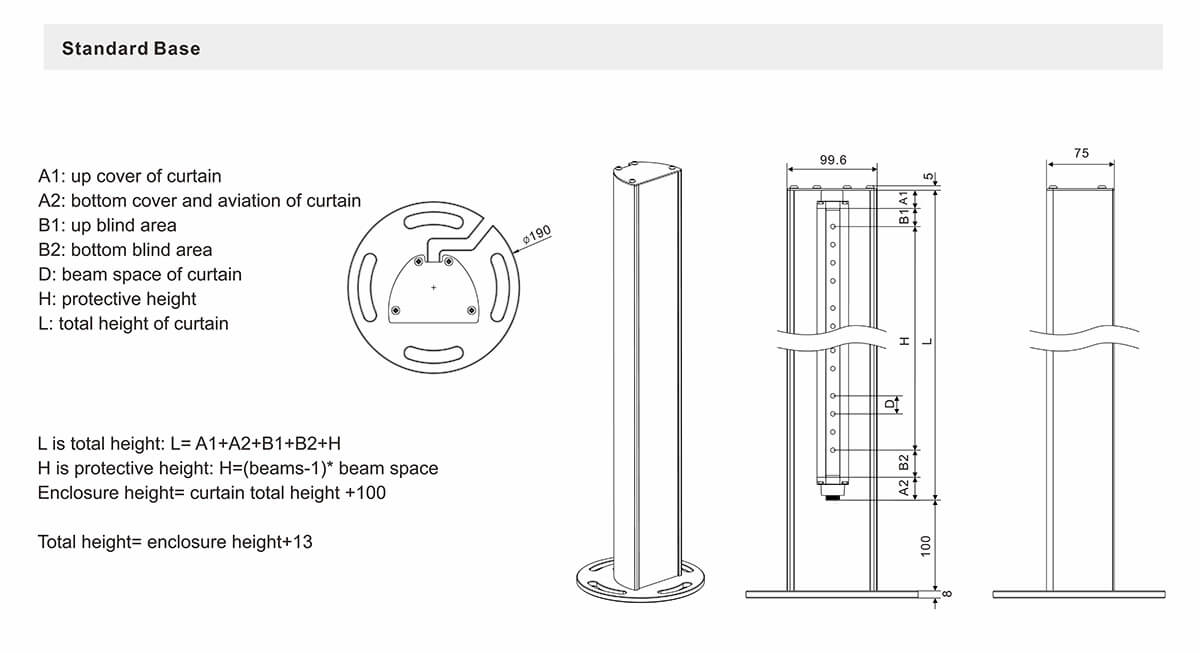

Product Size
A1: Upper cover A2: Bottom cover + aviation cap B1: Upper stop-work range B2: Bottom stop-work range D: Beam space H: Protective height | L: Total height of light curtain L(total height)=A1+A2+B1+B2+H (referning ESN or ESE size) H(protective height)=(beams-1)*beam space Height of column =L+100 |
Beam space 10mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 32 | 310 | 390 | ESQC-N3210 | Download |
| 36 | 350 | 430 | ESQC-N3610 | Download |
| 40 | 390 | 470 | ESQC-N4010 | Download |
| 44 | 430 | 510 | ESQC-N4410 | Download |
| 48 | 470 | 550 | ESQC-N4810 | Download |
| 52 | 510 | 590 | ESQC-N5210 | Download |
| 56 | 550 | 630 | ESQC-N5610 | Download |
| 60 | 590 | 670 | ESQC-N6010 | Download |
| 64 | 630 | 710 | ESQC-N6410 | Download |
| 68 | 670 | 750 | ESQC-N6810 | Download |
| 72 | 710 | 790 | ESQC-N7210 | Download |
| 76 | 750 | 830 | ESQC-N7610 | Download |
| 80 | 790 | 870 | ESQC-N8010 | Download |
| 84 | 830 | 910 | ESQC-N8410 | Download |
| 88 | 870 | 950 | ESQC-N8810 | Download |
| 92 | 910 | 990 | ESQC-N9210 | Download |
| 96 | 950 | 1030 | ESQC-N9610 | Download |
| 100 | 990 | 1070 | ESQC-N10010 | Download |
| 104 | 1030 | 1110 | ESQC-N10410 | Download |
| 108 | 1070 | 1150 | ESQC-N10810 | Download |
| 112 | 1110 | 1190 | ESQC-N11210 | Download |
| 116 | 1150 | 1230 | ESQC-N11610 | Download |
| 120 | 1190 | 1270 | ESQC-N12010 | Download |
| 124 | 1230 | 1310 | ESQC-N12410 | Download |
| 128 | 1270 | 1350 | ESQC-N12810 | Download |
| 132 | 1310 | 1390 | ESQC-N13210 | Download |
| 136 | 1350 | 1430 | ESQC-N13610 | Download |
| 140 | 1390 | 1470 | ESQC-N14010 | Download |
| 144 | 1430 | 1510 | ESQC-N14410 | Download |
| 148 | 1470 | 1550 | ESQC-N14810 | Download |
| 152 | 1510 | 1590 | ESQC-N15210 | Download |
| …… | …… | …… | …… | |
| 176 | 1750 | 1930 | ESQC-N17610 | Download |
Beam space 20mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 16 | 300 | 490 | ESQC-N1620 | Download |
| 18 | 340 | 530 | ESQC-N1820 | Download |
| 20 | 380 | 570 | ESQC-N2020 | Download |
| 22 | 420 | 610 | ESQC-N2220 | Download |
| 24 | 460 | 650 | ESQC-N2420 | Download |
| 26 | 500 | 690 | ESQC-N2620 | Download |
| 28 | 540 | 730 | ESQC-N2820 | Download |
| 30 | 580 | 770 | ESQC-N3020 | Download |
| 32 | 620 | 810 | ESQC-N3220 | Download |
| 34 | 660 | 850 | ESQC-N3420 | Download |
| 36 | 700 | 890 | ESQC-N3620 | Download |
| 38 | 740 | 930 | ESQC-N3820 | Download |
| 40 | 780 | 970 | ESQC-N4020 | Download |
| 42 | 820 | 1010 | ESQC-N4220 | Download |
| 44 | 860 | 1050 | ESQC-N4420 | Download |
| 46 | 900 | 1090 | ESQC-N4620 | Download |
| 48 | 940 | 1130 | ESQC-N4820 | Download |
| 50 | 980 | 1170 | ESQC-N5020 | Download |
| 52 | 1020 | 1210 | ESQC-N5220 | Download |
| 54 | 1060 | 1250 | ESQC-N5420 | Download |
| 56 | 1100 | 1290 | ESQC-N5620 | Download |
| 58 | 1140 | 1330 | ESQC-N5820 | Download |
| 60 | 1180 | 1370 | ESQC-N6020 | Download |
| 62 | 1220 | 1410 | ESQC-N6220 | Download |
| 64 | 1260 | 1450 | ESQC-N6420 | Download |
| 66 | 1300 | 1490 | ESQC-N6620 | Download |
| 68 | 1340 | 1530 | ESQC-N6820 | Download |
| 70 | 1380 | 1570 | ESQC-N7020 | Download |
| 72 | 1420 | 1610 | ESQC-N7220 | Download |
| 74 | 1460 | 1650 | ESQC-N7420 | Download |
| 76 | 1500 | 1690 | ESQC-N7620 | Download |
| …… | …… | …… | …… | |
| 88 | 1740 | 1930 | ESQC-N8820 | Download |
Beam space 40mm
| Beams | Protective Height (mm) | Total Height (mm) | Model | 3D File |
| 8 | 280 | 470 | ESQC-N0840 | Download |
| 10 | 360 | 550 | ESQC-N1040 | Download |
| 12 | 440 | 630 | ESQC-N1240 | Download |
| 14 | 520 | 710 | ESQC-N1440 | Download |
| 16 | 600 | 790 | ESQC-N1640 | Download |
| 18 | 680 | 870 | ESQC-N1840 | Download |
| 20 | 760 | 950 | ESQC-N2040 | Download |
| 22 | 840 | 1030 | ESQC-N2240 | Download |
| 24 | 920 | 1110 | ESQC-N2440 | Download |
| 26 | 1000 | 1190 | ESQC-N2640 | Download |
| 28 | 1080 | 1270 | ESQC-N2840 | Download |
| 30 | 1160 | 1350 | ESQC-N3040 | Download |
| 32 | 1240 | 1430 | ESQC-N3240 | Download |
| 34 | 1320 | 1510 | ESQC-N3440 | Download |
| 36 | 1400 | 1590 | ESQC-N3640 | Download |
| 38 | 1480 | 1670 | ESQC-N3840 | Download |
| 40 | 1560 | 1750 | ESQC-N4040 | Download |
| 42 | 1640 | 1830 | ESQC-N4240 | Download |
| 44 | 1720 | 1910 | ESQC-N4440 | Download |
