Area Sensor

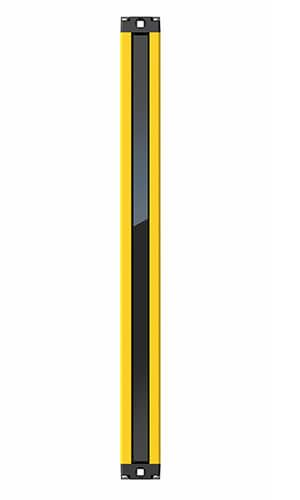

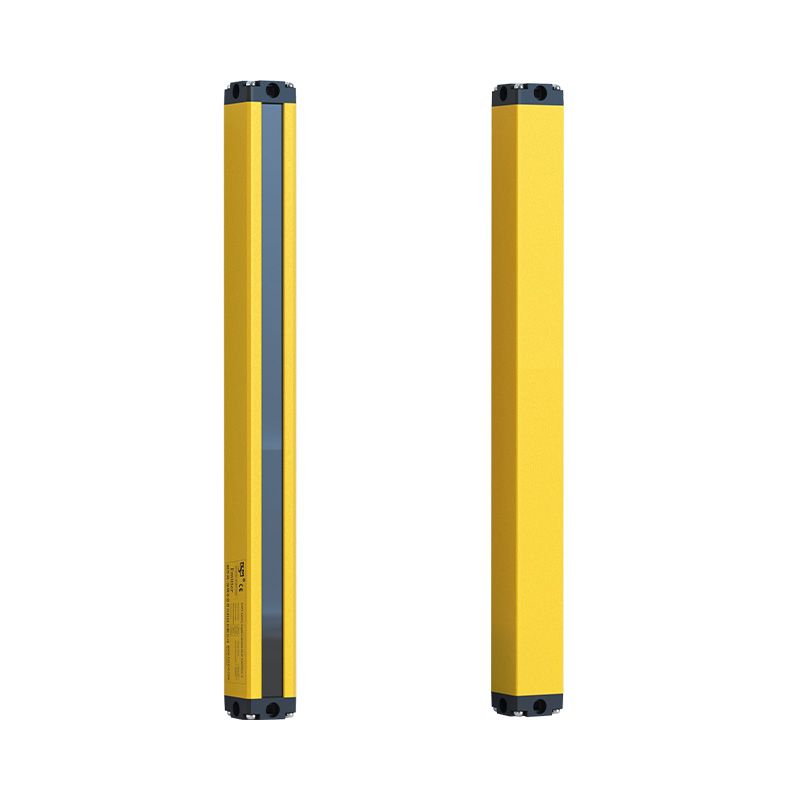

Area Sensor (Curtain)

Brand: ESPE

Model: ELD Series

Product Feature:

1. Price range: $53/set-$846/set(Inquire to get latest price,goods can be finished within 2-3 working days.);

2. Quick response time (quickestless than 1ms);

3. Wire-syn avoid interference of strong light;

4. End-cover installation is easy mounting.

Technical Parameters

Parameter of safety light curtain
Power supply	DC24V±20%
Capacity	<5W
Beam space	10mm, 20mm, 40mm
Resolution	15mm, 25mm, 45mm
Beams	10mm : 08, 12, 16……148 20mm : 4, 6, 8……74 40mm : 4, 6, 8……36
Protective height	Protective height =（N-1）*beam gap，N is beam quantity
Wave length	940nm
Response time	Response time =(N * 0.1ms) + 0.4ms, N is beam quantity
Type of output（OSSD）	PNP or NPN Load current ≤ 200mA, residual voltage ≤ 1V (except for voltage drop caused by cable extension)and leakage current ≤ 1mA.
Protective circuit	Overload voltage protection, power supply reverse polarity protection, over current protection.
Sensing distance	0.1~2m, 0.1~5m (Remark: please let us know when with reflectivity)
Anti-optical interference	10000Lux(angle＞5°)
Sensing method	Thru-beam
Synchronization	Wire synchronization
Enclosure material	Aluminum alloy
Enclosure rating	IP65
Housing cross-section	35*50mm
Vibration resistance	10Hz~55Hz，double amplitude each in X、Y、Z directions for 20 times.
Ambient operating temperature	-10℃-55℃（no freezing）
Storage temperature	-30℃~70℃（no freezing）
Ambient operating humidity	When temperature is 20℃，humidity max 85%

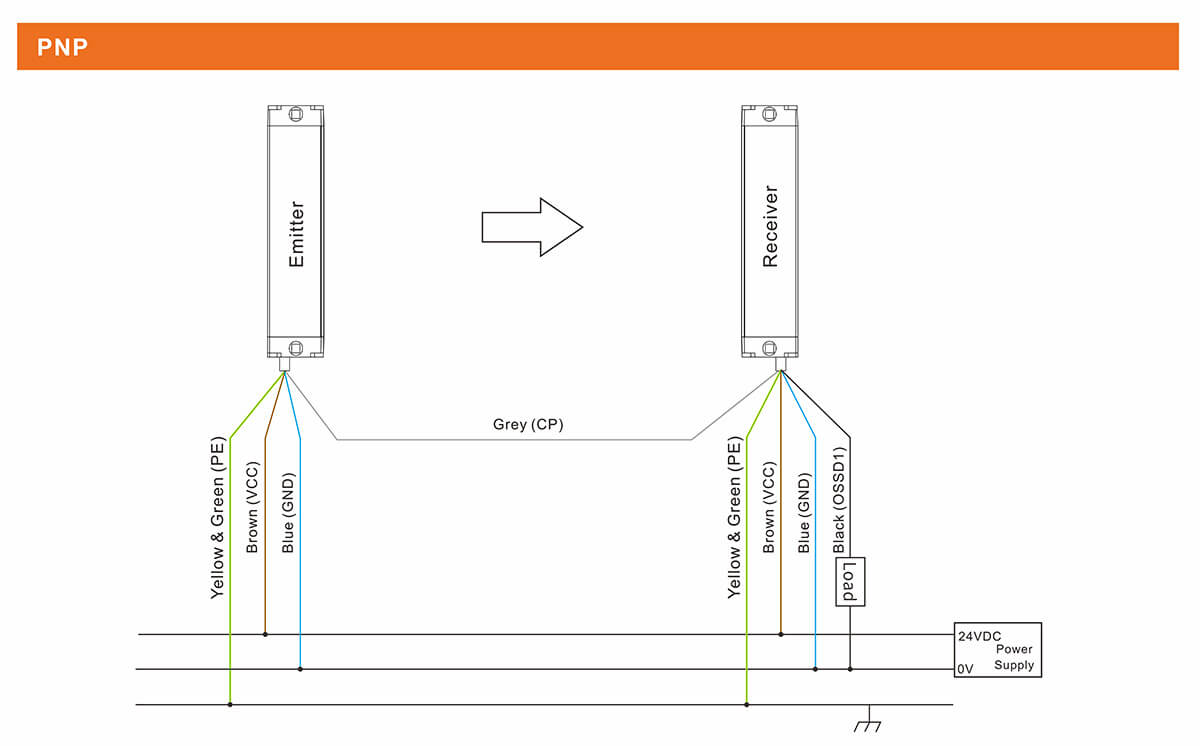

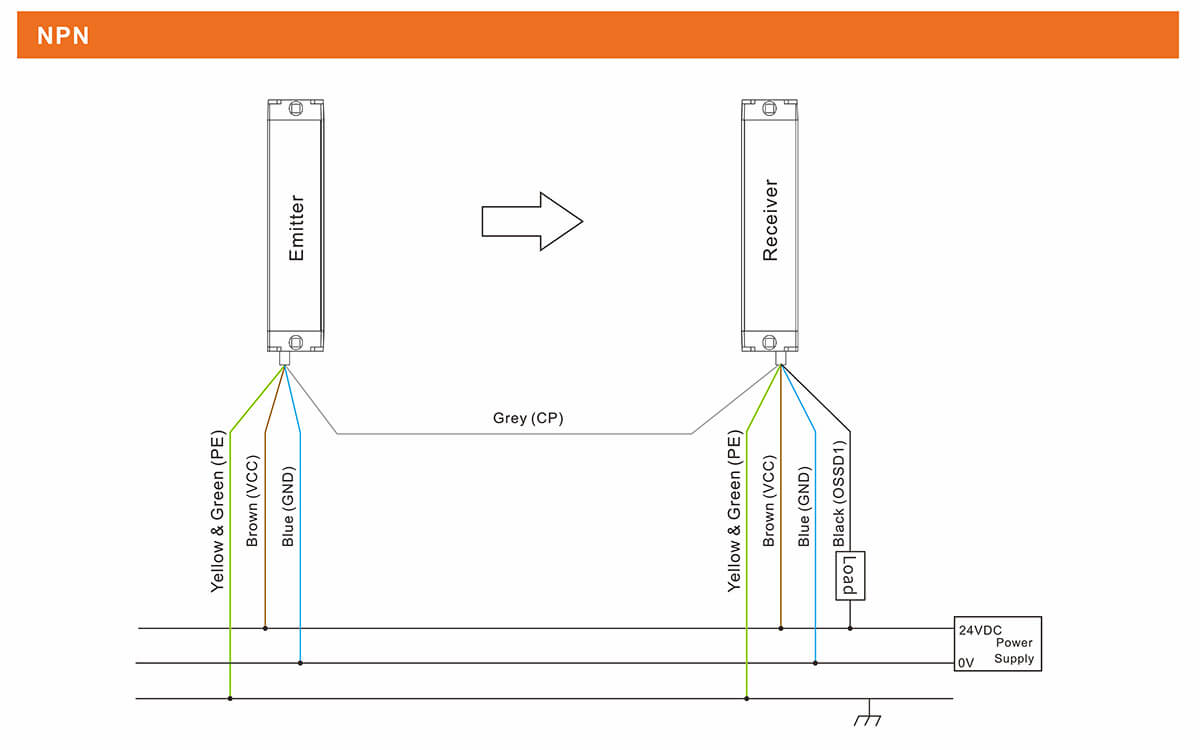

Wire Connection

Area Sensor (Curtain)

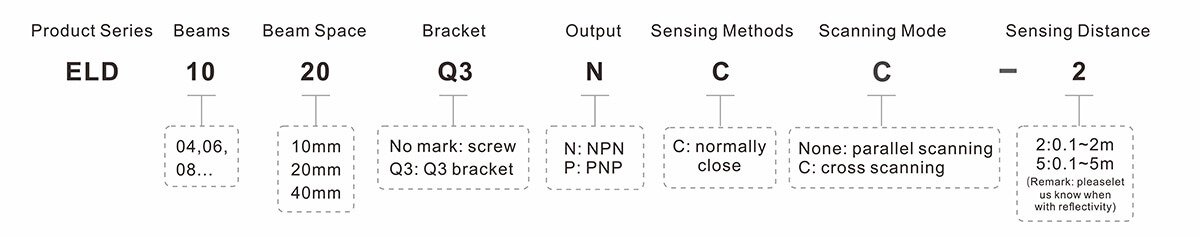

Model Selection(e.g.: ELD1020Q3NCC-2)

Area Sensor (Curtain)

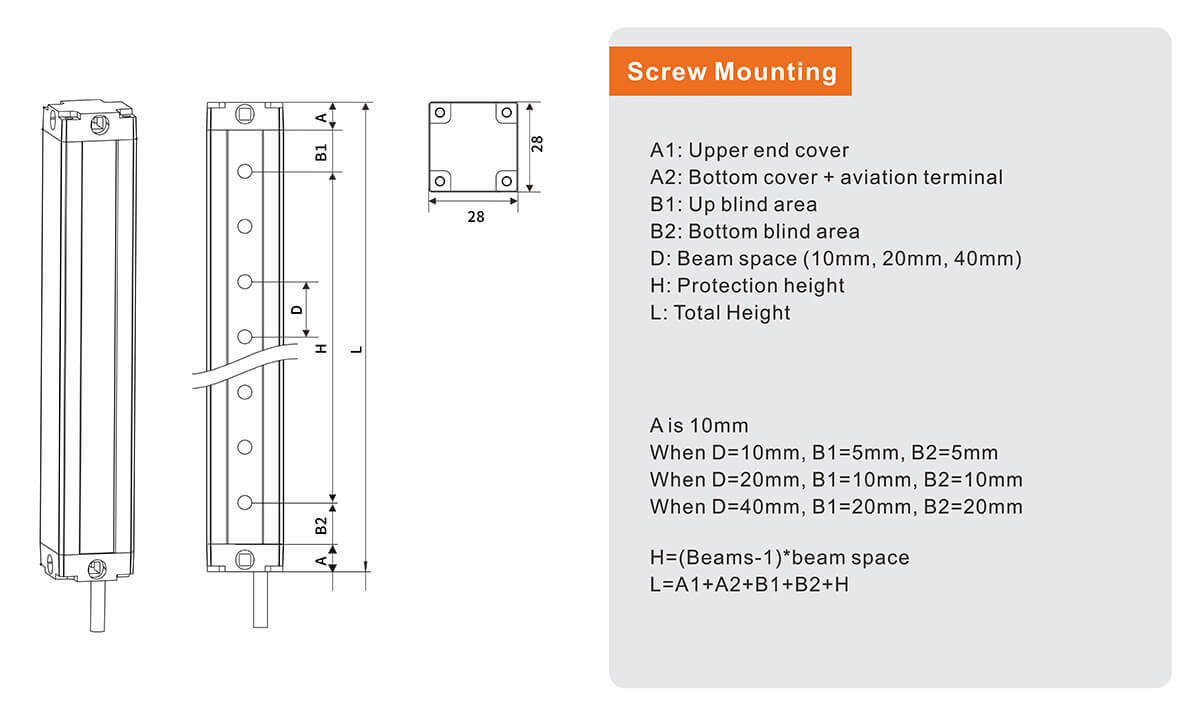

Product Size

Area Sensor (Curtain)

Option for Brackets

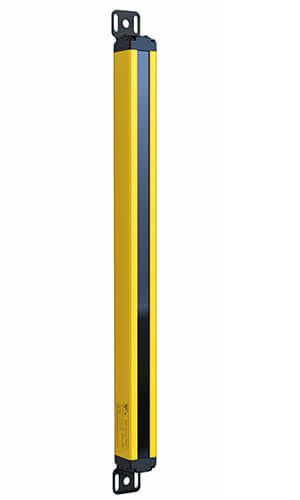

Installation picture

Accessories

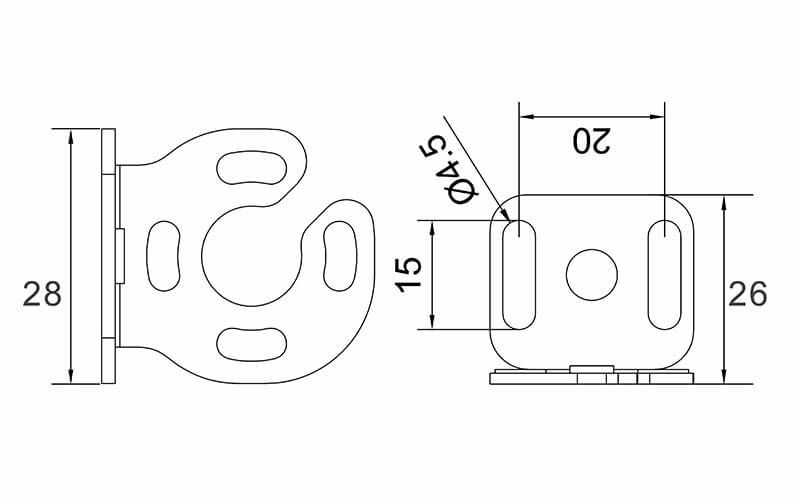

Brackets Size

Screw fixing (from front/side)

M4*30 screw (4pcs)

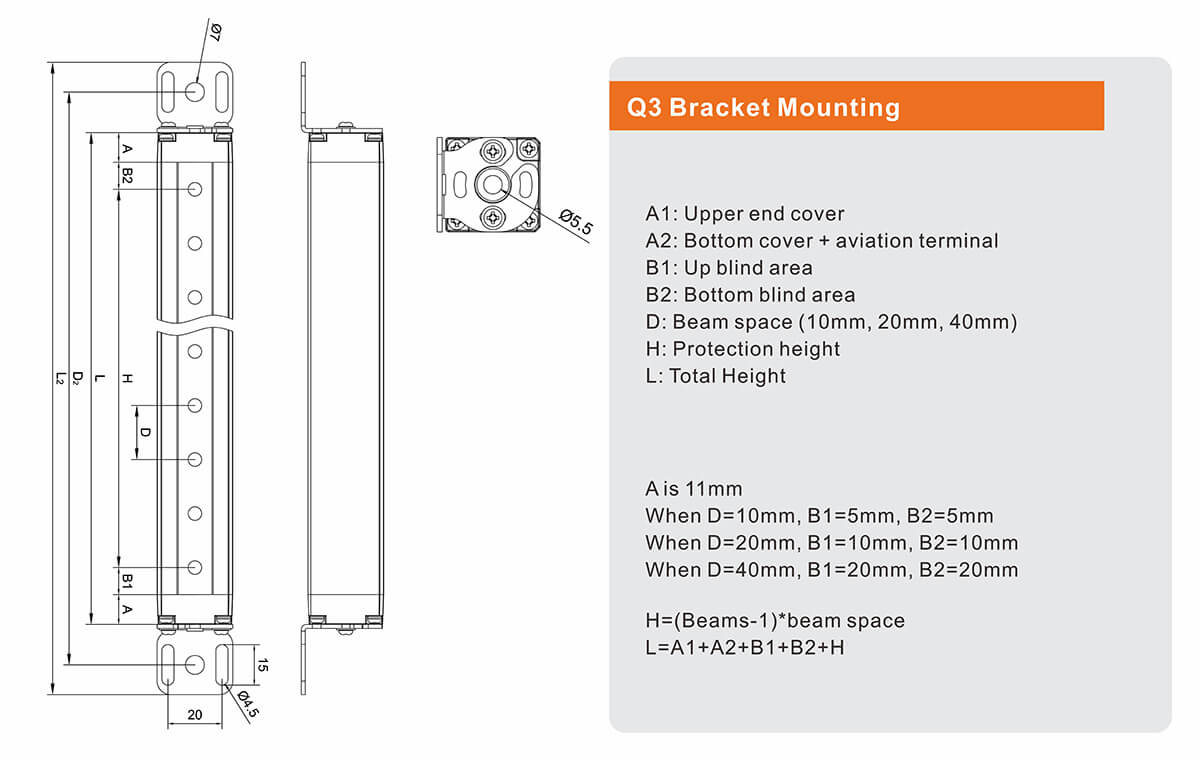

Q3 up & bottom mounting bracket

Up& bottom bracket(4pcs)

M6*16screw (4pcs)

M6 pad (4pcs)

M6springwasher (4pcs)

M3*6 screw (8pcs)

Beam space 10mm

Beam space 20mm

Beam space 40mm
