Technical Parameter

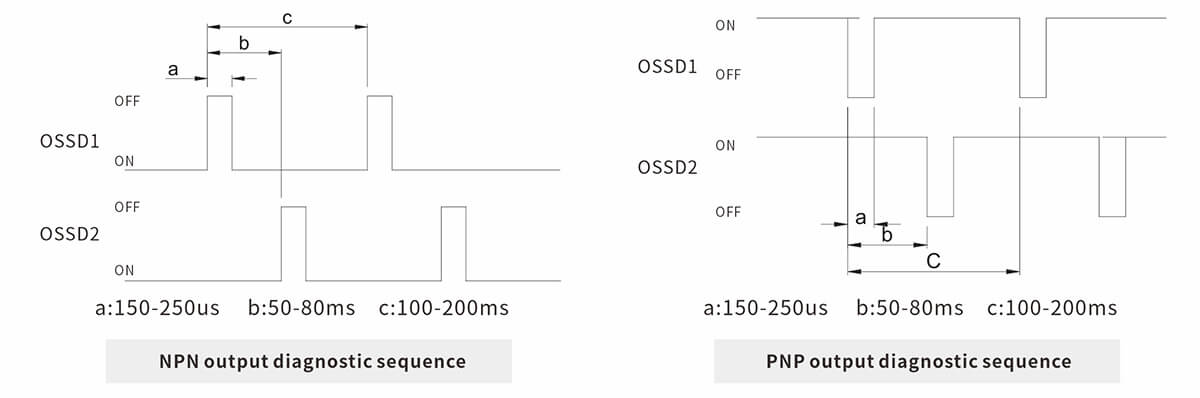

| Parameter of safety door switch | ||
| Standard | ISO13849-1 (Category 4 PLe); IEC/EN60947-5-3 | |
| Certificate | CE | |
| Locking model | Mechanical lock/ Power to lock | |
| Safety output | NPN*2/ PNP*2 | |
| Response time | Lock-unlock | 100ms (independent working) |
| Unlock-lock | Approximate 1mA | |
| Response time | Lock-unlock | 100ms (independent working) |
| Unlock-lock | Approximate 1mA | |
| Locking | Lock holding force | Over 2000N |
| Lock bolt insertion deviation | Less then 2mm | |
| Mechanical endurance | Over 1 million times(door operaing speed 1m/s) | |
| Mechanical endurance | Over 1 million times(door operaing speed 1m/s) | |
| Operating frequency | 1Hz | |
Minumum radius of revolving door | Over 220mm | |
| Manual unlocking | Front, back | |
| Cascade linking | Max 20 pieces | |
Control output (OSSD output) | Output type | Transistor output *2 |
| Maximum load current | ≤200mA | |
| Residual voltage (when it it on) | <2.5V@200mA | |
| Voltage when OFF | ≤2V @wire cable 5m | |
| Leakage current | ≤0.5mA | |
| Maximum load capacity | 2.2uF | |
| Load connection resistance | ≤2.5Ω | |
AUX output(unsafe output) | Output type | Transistor output |
| Output quantity | 1 | |
| Maximum load capacity | 50mA | |
| Residual voltage (when ON status) | ≤2.5V @50mA | |
External input (breaking current) | Safety input | 1.5mA*2 |
| Reset/ EDM input | About 10mA*1 | |
| Locking control input | About 10mA*1 | |
| Power | Power supply | DC24V±15% |
| Rated capacity | 4.6W (no load) | |
| Protection | Safety circuit protection, current limit,overload protection, overvoltageprotection, stop & restart when overheat, reverse polarity protection, transient noise protection, invalid pulse protectio | |
Environment resistance | Housing protection rate | IP65 |
Operating ambient temperature | -20°c-55°c (no freezing) | |
| Storage temperature | -25°c-70°c (no freezing) | |
Operating ambient humidity | 5%-95%RH | |
| Storage temperature | 5%-95%RH | |
| Vibraion resistance | 10Hz-55Hz, dounle amplitude 2.0mm, 5minutes each in X, Y and Z directions | |
| Shock resistance | 30g 6 times each in X, Y and Z directions | |
| Risk time | 100ms | |
| Restart time | 3.5s | |
| Material | Nylon/ zinc alloy/ stainless steel | |

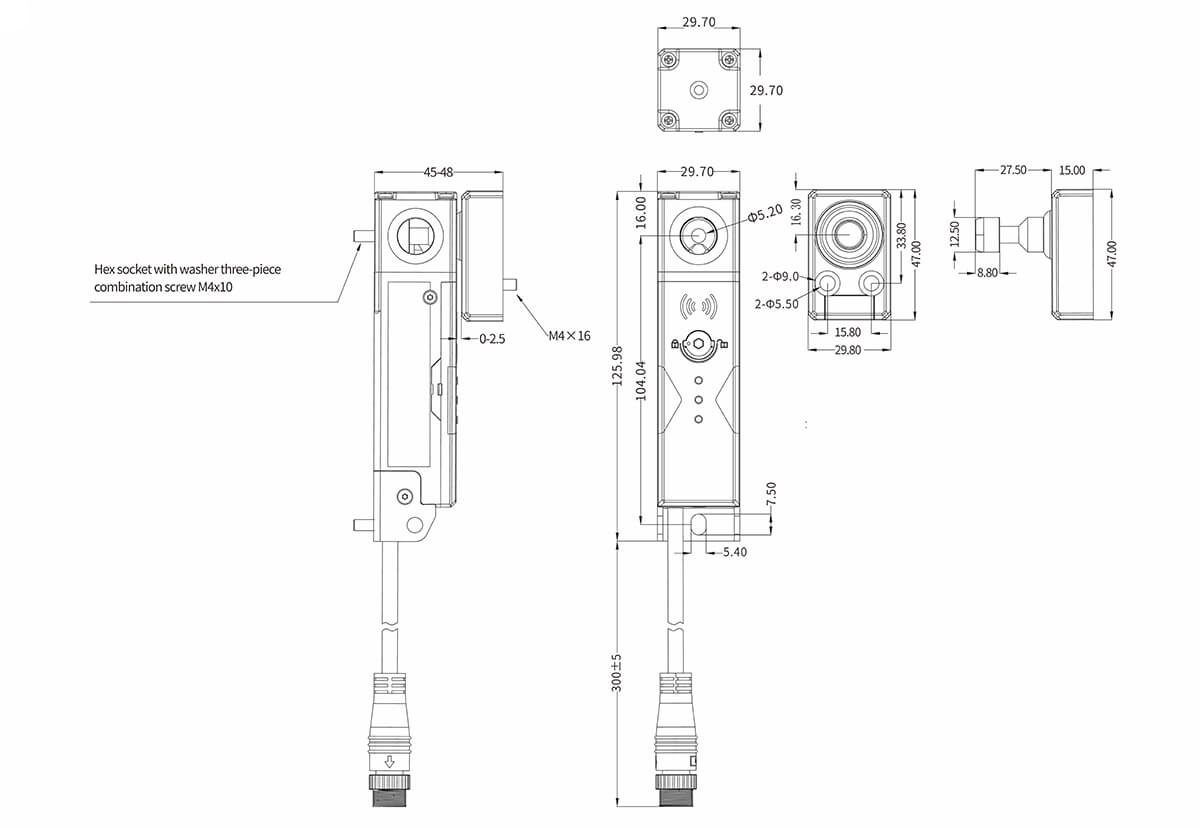

Product Size

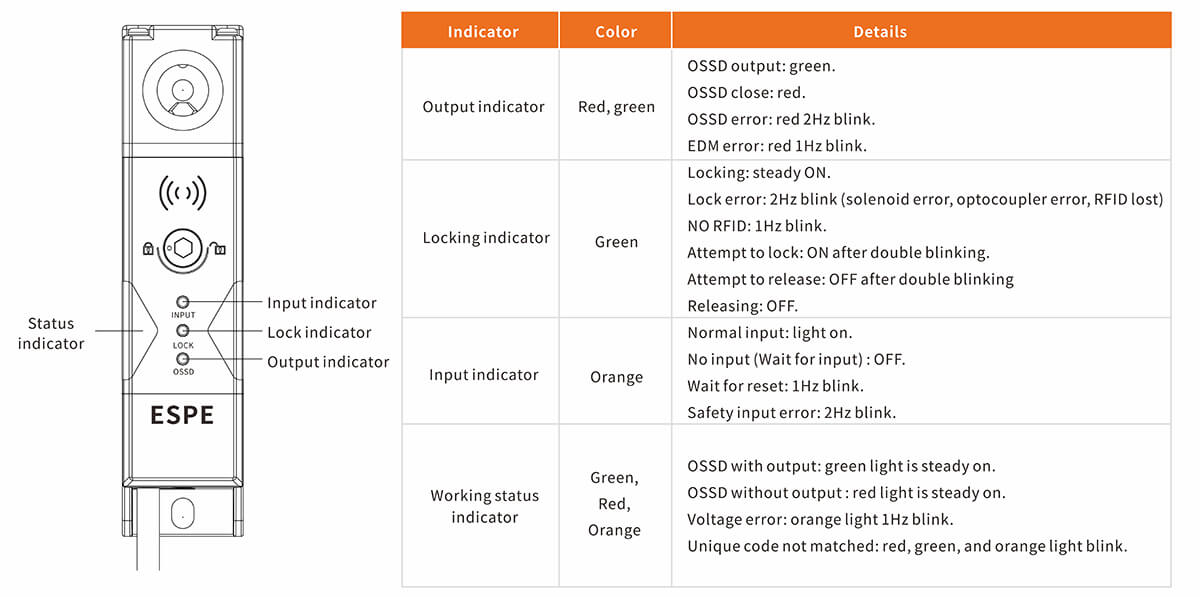

Indicator light

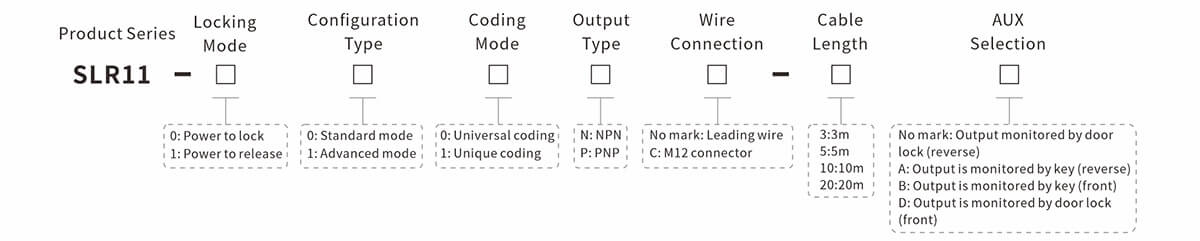

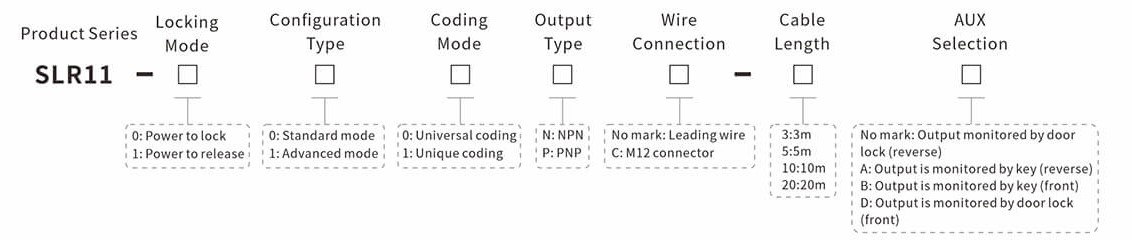

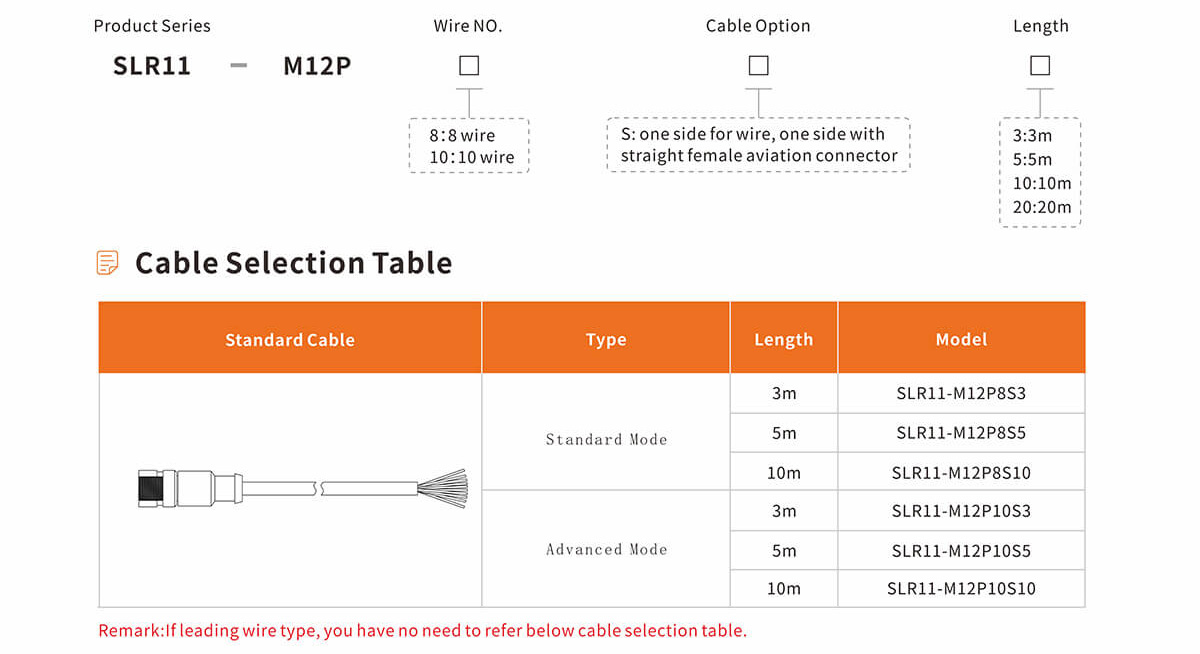

Model selection (eg.: SLR11-□□□□□-□)

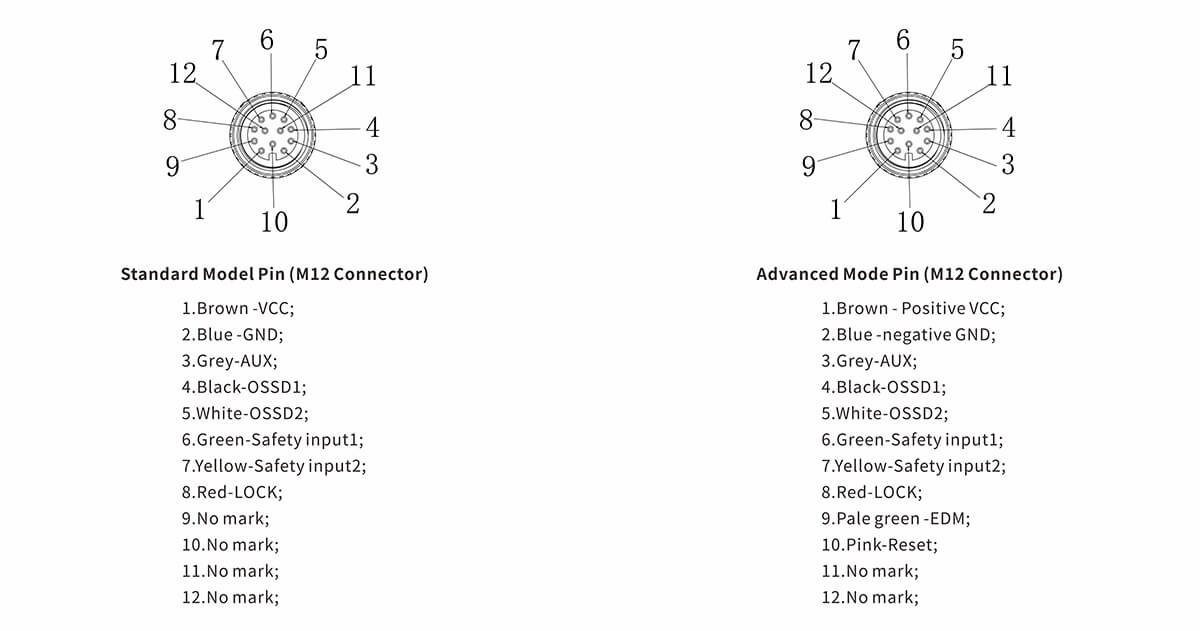

| Function of standard mode & advanced mode | ||||||
| Safety output | AUX output | Safety input | Lock input | EDM | Reset | |

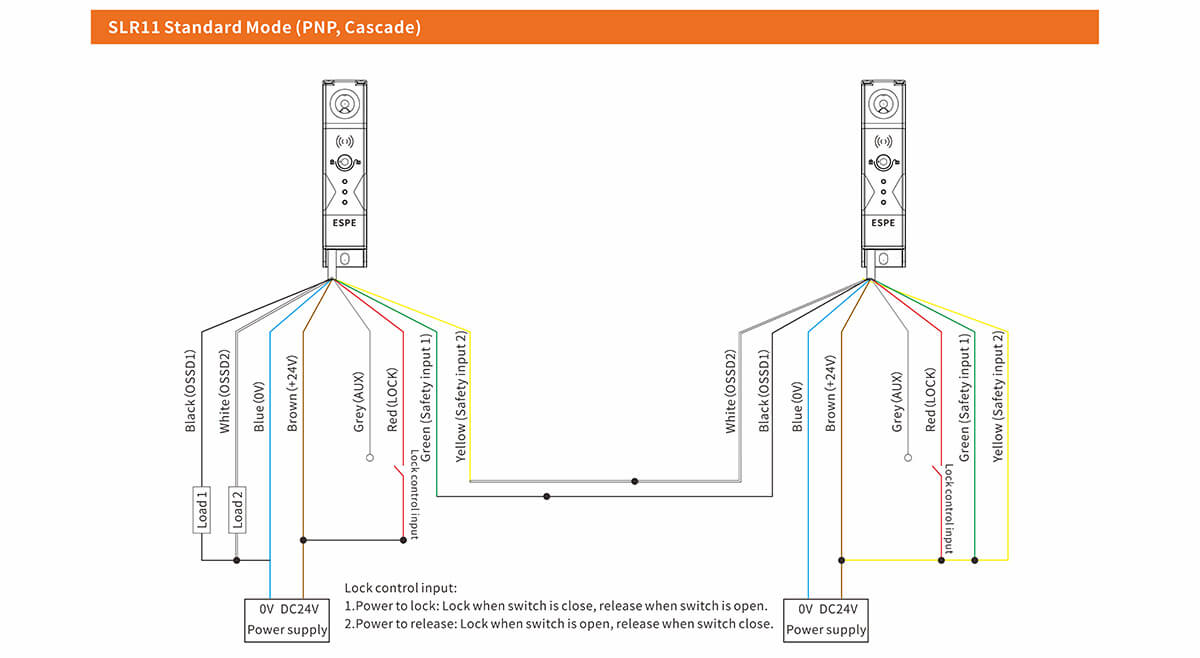

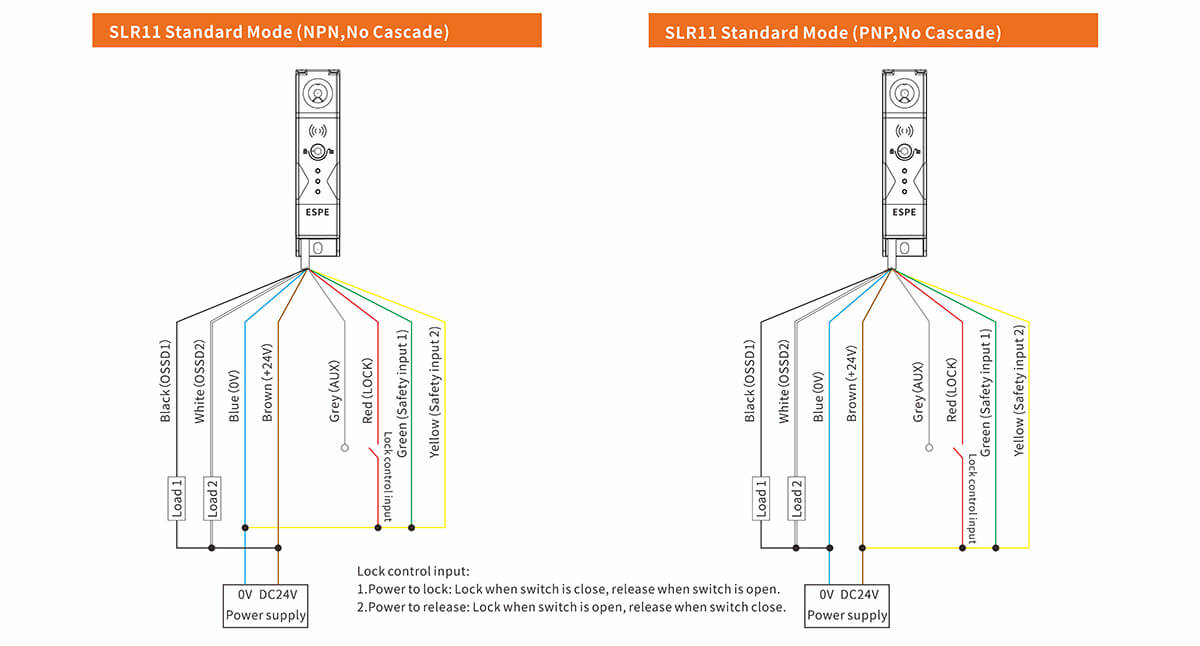

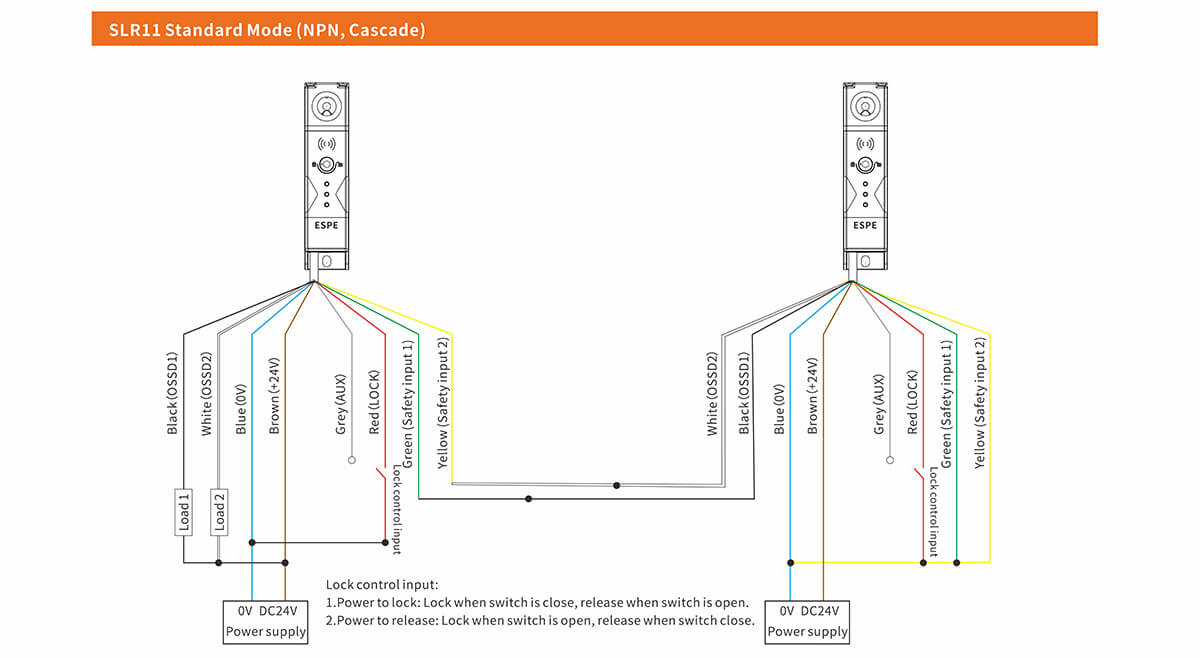

| Standard mode | ● | ● | ● | ● | — | — |

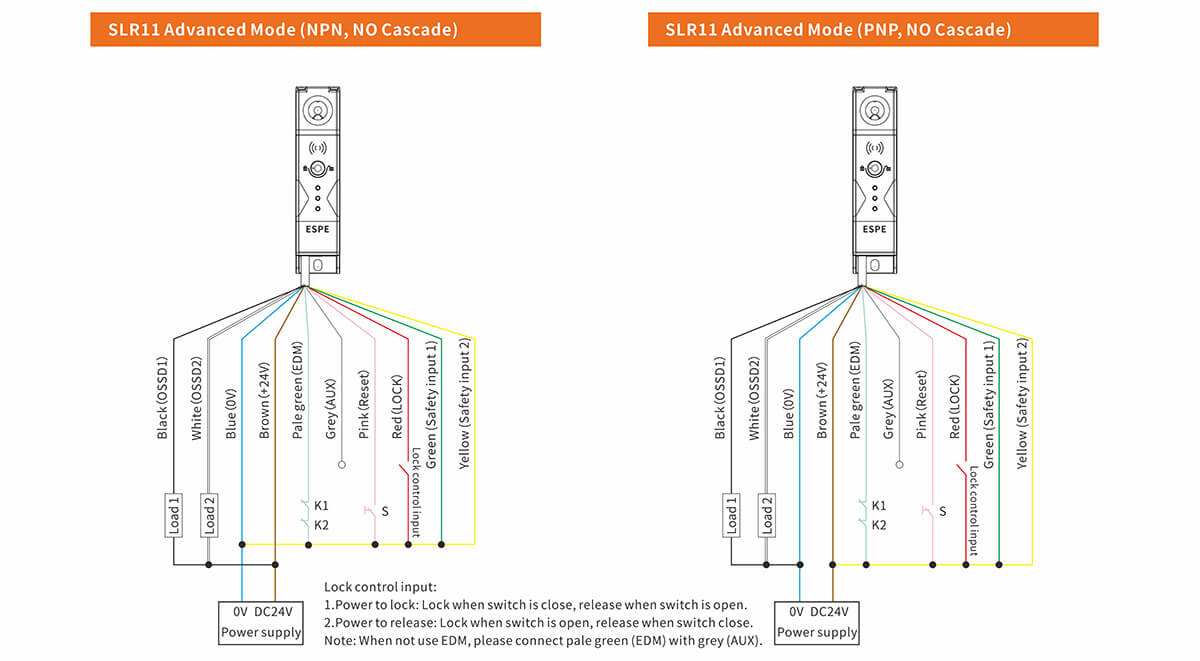

| Advanced mode | ● | ● | ● | ● | ● | ● |

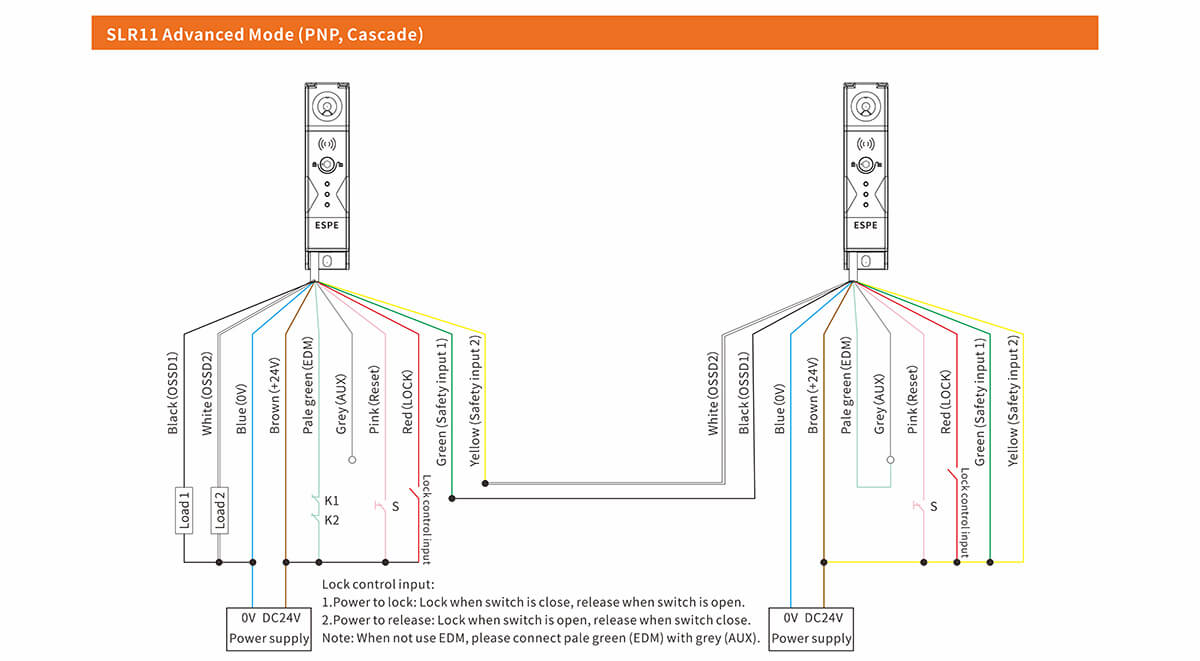

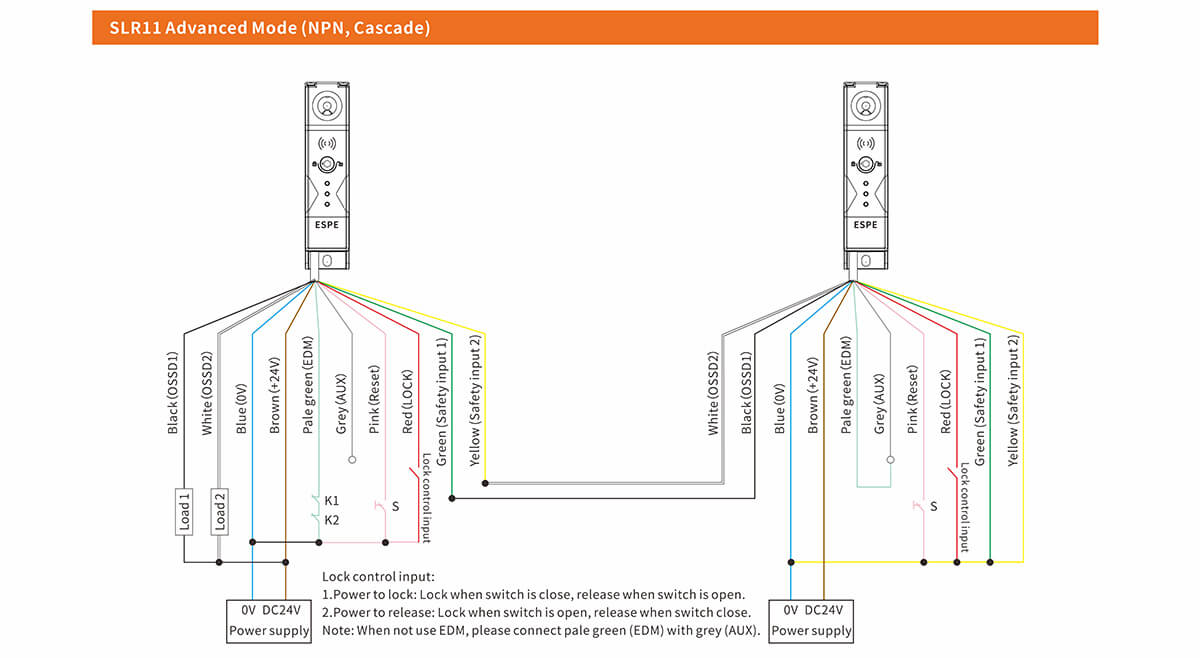

AUX Output
No mark: AUX outputs turning ON/OFF linked with the lock state.
| Door Status | Lock Status | OSSD Output | AUX Output |
| Open | Releasing | OFF | ON |
| Close | Releasing | OFF | ON |
| Close | Locking | ON | OFF |
A: AUX output turn ON/OFF linked with the door opening/closing.
| Door Status | Lock Status | OSSD Output | AUX Output |
| Open | Releasing | OFF | ON |
| Close | Releasing | OFF | OFF |
| Close | Locking | ON | OFF |
Installation
Direction of main unit and actuator
| Correction installation |
 |
| Incorrect installation direction |
 |
| Mutual interference |
| When multiple SLR11 used closely, they may malfunction due to mutual interference. In order to avoid mutual interference,please install interlock as below. |
 |

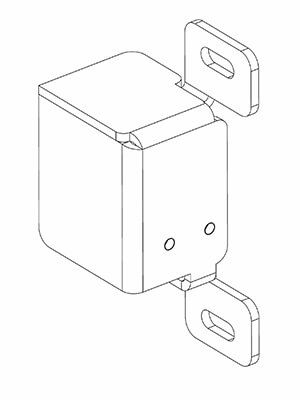

Option for Brackets

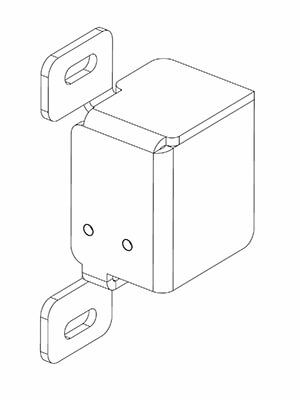

Bracket&Model
Size

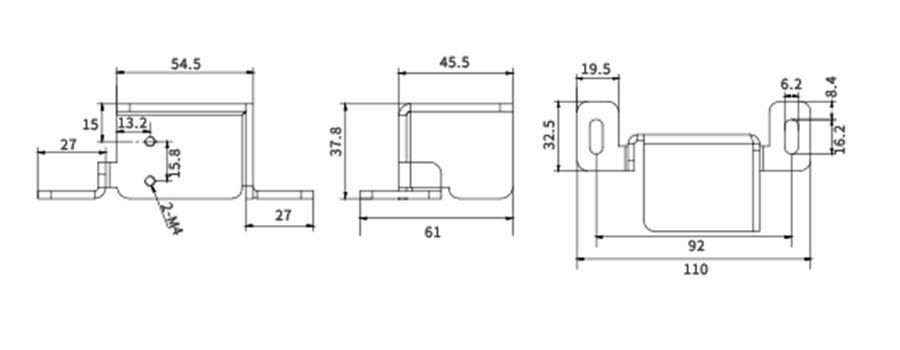

SR11-B01
Inside mounting brackets
SR11-BL01
Slide mounting bracket (left opening)
SR11-BR01
Slide mounting bracket (right opening)
SR11-BL02
Hinge mounting bracket (left opening)
SR11-BR02
Hinge mounting bracket (right opening)
Power to lock
| Locking mode | Configuration | Output | Coding mode | Model |
| Power to lock | Standard mode | NPN | Universal coding | SLR11-000N |
| Unique coding | SLR11-001N | |||
| PNP | Universal coding | SLR11-000P | ||
| Unique coding | SLR11-001P | |||
| Advanced mode | NPN | Universal coding | SLR11-010N | |
| Unique coding | SLR11-011N | |||
| PNP | Universal coding | SLR11-010P | ||
| Unique coding | SLR11-011P |
Power to unlock
| Locking mode | Configuration | Output | Coding mode | Model |
| Power to unlock | Standard type | NPN | Universal coding | SLR11-100N |
| Unique coding | SLR11-101N | |||
| PNP | Universal coding | SLR11-100P | ||
| Unique coding | SLR11-101P | |||
| Advanced mode | NPN | Universal coding | SLR11-110N | |
| Unique coding | SLR11-111N | |||
| PNP | Universal coding | SLR11-110P | ||
| Unique coding | SLR11-111P |
