SLM13 Safety Door Switch

SLM13 Safety Door Switch

SLM13 Safety Door Switch

SLM13 Safety Door Switch

SLM13 Safety Door Switch

SLM13 Safety Door Switch

SLM13 Safety Door Switch

Brand：ESPE


Model：SLM13 series (multiple contacts)


Product Feature:

1. Multiple and optional contacts constructure;

2. 1300N holding force;

3. IP67 protection rate;

4. PA66 fire retardant material;

5. Support general loadand micro-load.

INQUIRE NOW Download
  • Product Details
  • Model Selection Table

Technical Parameter

Parameter of safety door switch
Electromagnetic Tube
Rated voltage
DC24V
Power consumptionApproximately 4.8W* 1
Current consumptionApproximate 200mA*2
InsulationClass B (130­℃）
LED indicator
Rated voltageDC24V
Rated currentApprox. 1mA
Luminous color (LED)Green
Safety level (PLd)
CertificateCE TUV Rheinland
StandardEN 60947-5-1、GB/T 14048.5、EN ISO 14119、GB/T 18831、UL 508
Protection rateIP67
MaterialPA66 fire retardant
Mechanical lifespanOver 1,000,000 times
Electrical lifespanover 150, 000 times (AC 240V 3A, resistive load)
Using TypeAC-15DC-13
Rated operating voltage(Ue)240V24V
Rated operating current(Ie)
3A
2A
Electrical parameter
Contact resistance<25mΩ
Nominal discharge current (lth)10A
Rated insulation voltage (Ui)300V
Anti-electric shock levelClass II (double insulation)
Pulse withstand voltage (EN60947-5-1)2.5kv
Insulation resistance>100mΩ
Short-circuit protection10A, 250V requires a quick-break fuse
Vibration resistance10-55HZ, double amplitude 1.5mm
Compact resistanceDurability 1000m/s²
Conditional short-circuit current100A (EN 60947-5-1)
Space of contactAbove 2 *2mm
Action characteristic
Direct opening travelOver 10mm
Allowed operating speed0.1m/s-0.5m/s
Allowed operating frequencyMaximum 30 times/minute
Holding force1300N
Environment
Operating environment3 (EN 60947-5-1)
Operating temperature-10 to 55°C ( no freezing)
Operating humidity
<95% RH

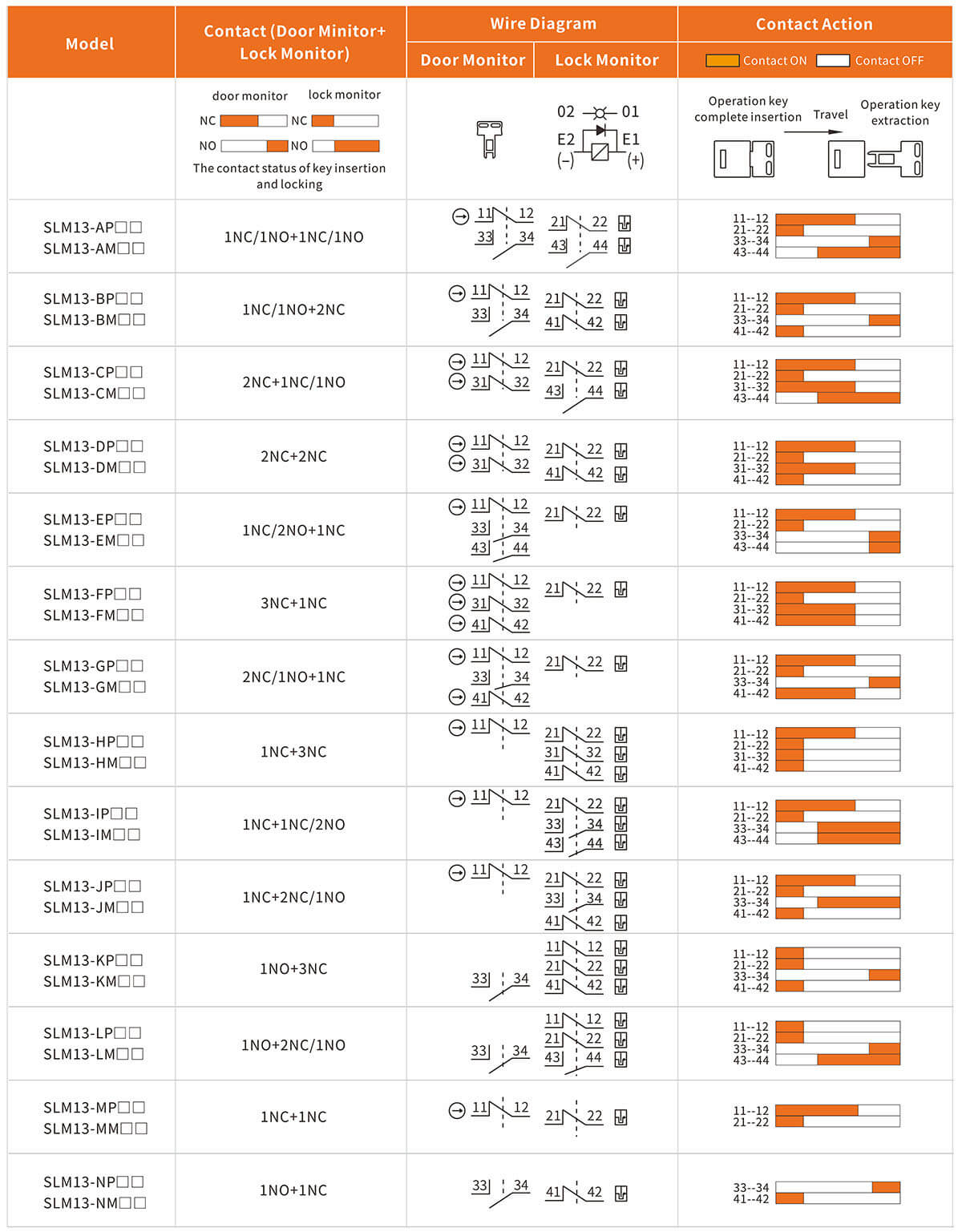

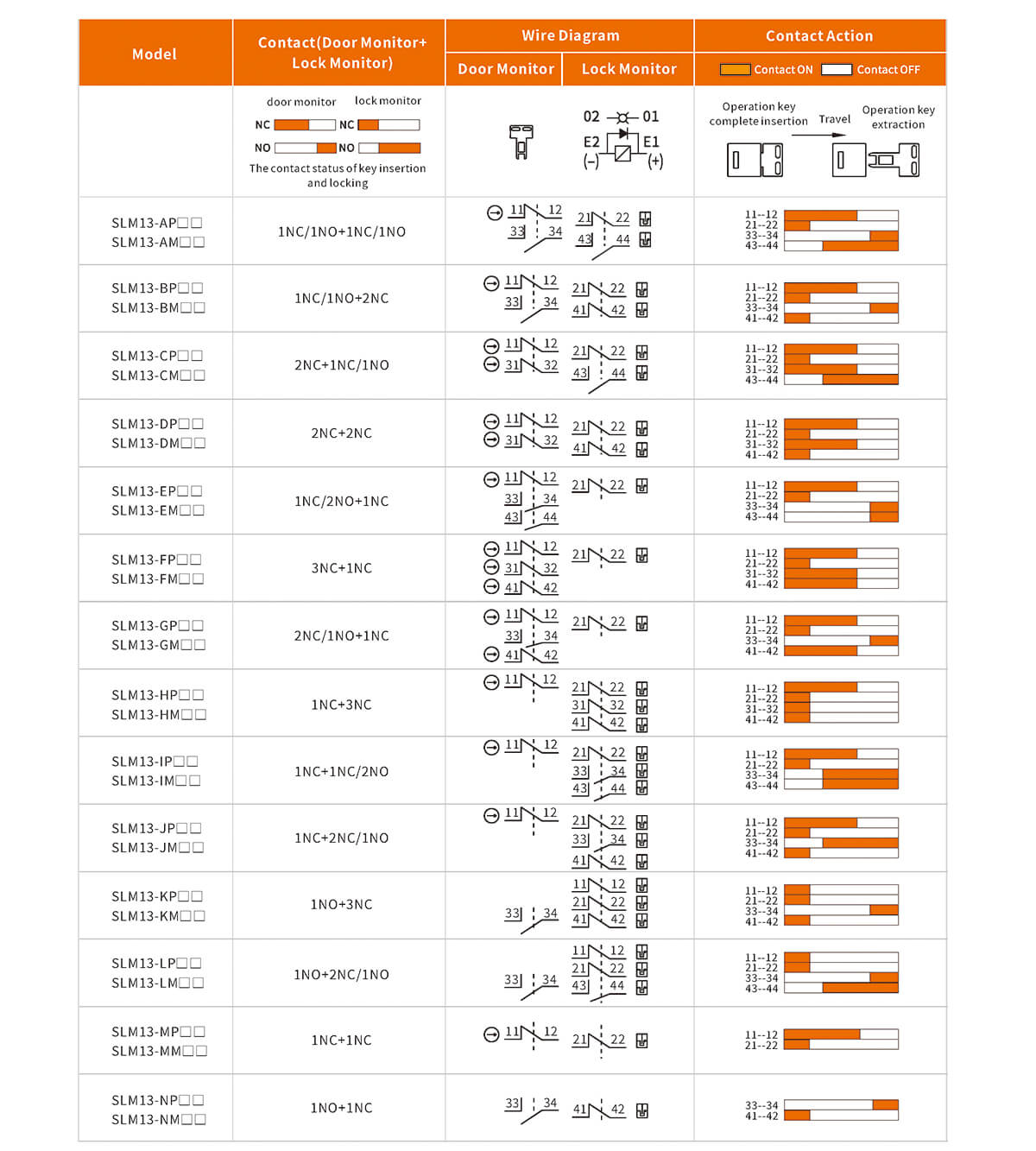

Contacts action

SLM13 Safety Door Switch

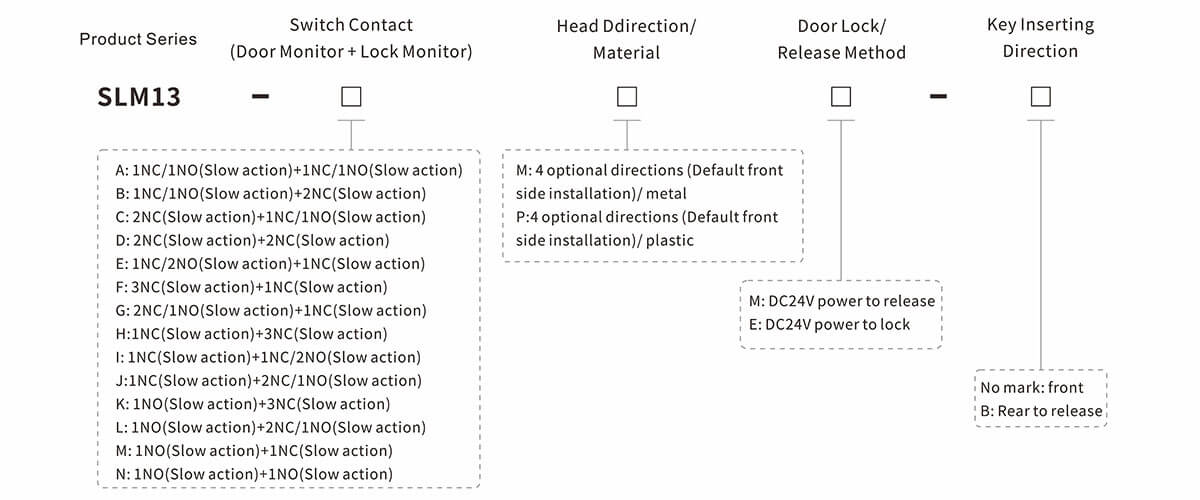

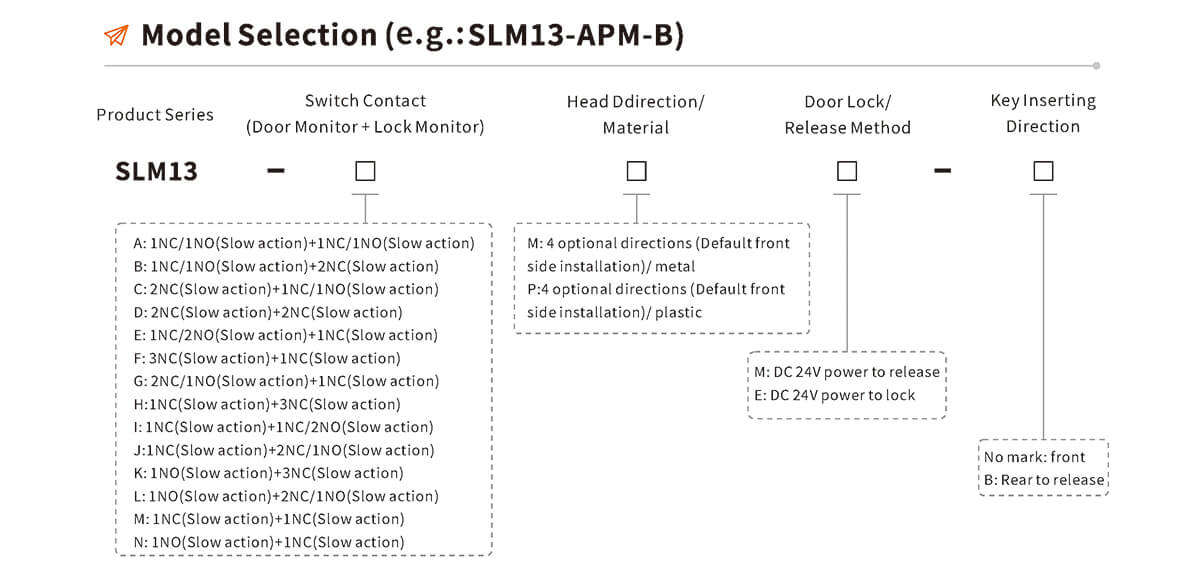

Model selection (eg.: SLM13-APM-B)

SLM13 Safety Door Switch

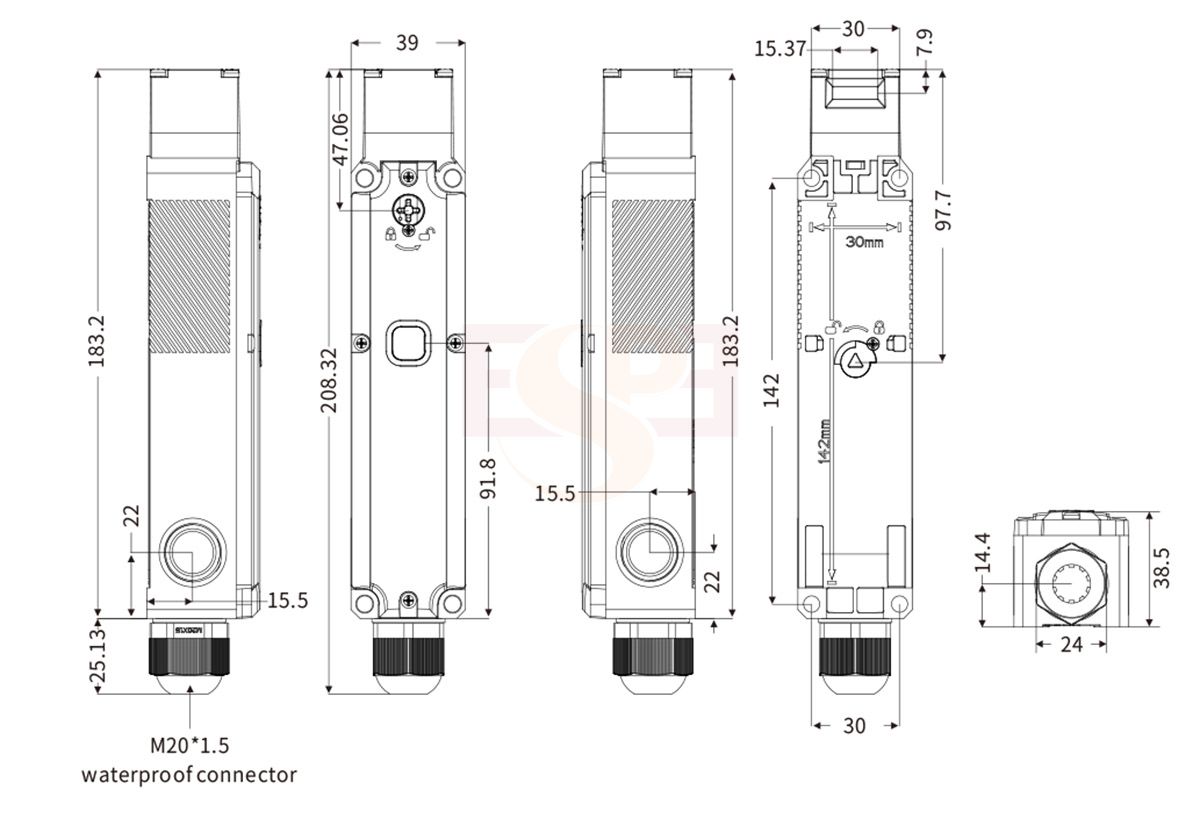

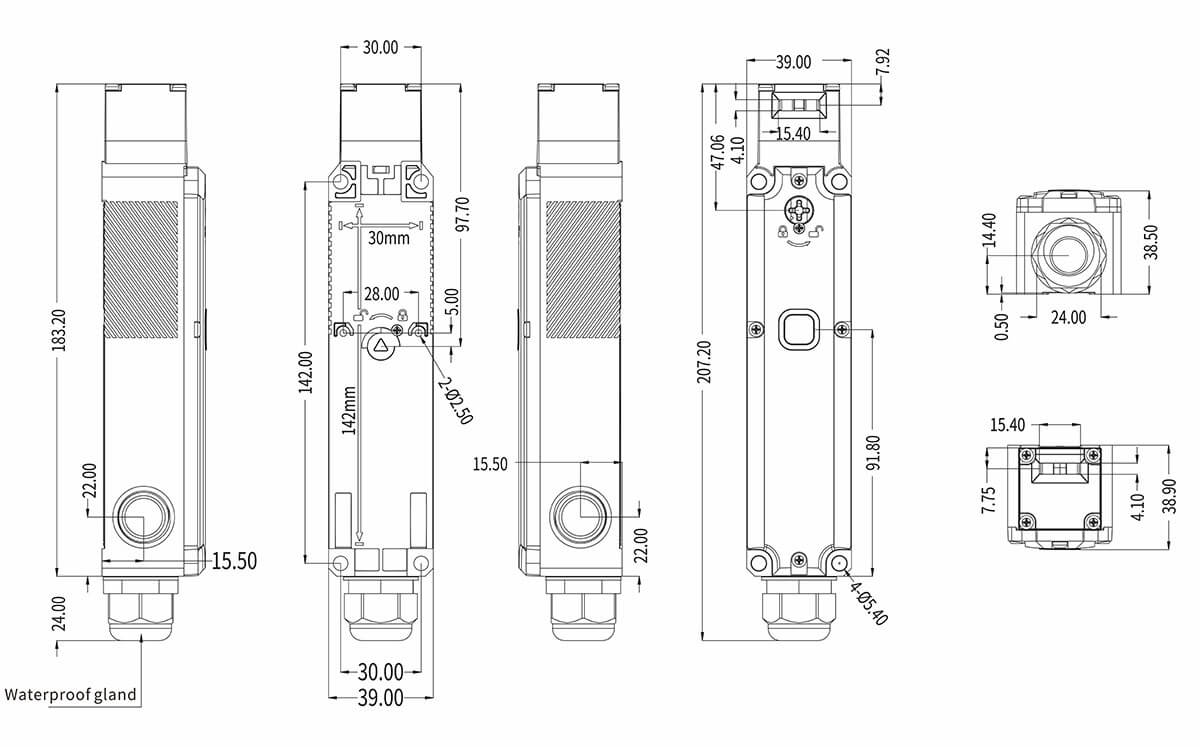

Product Size


SLM13 Safety Door Switch

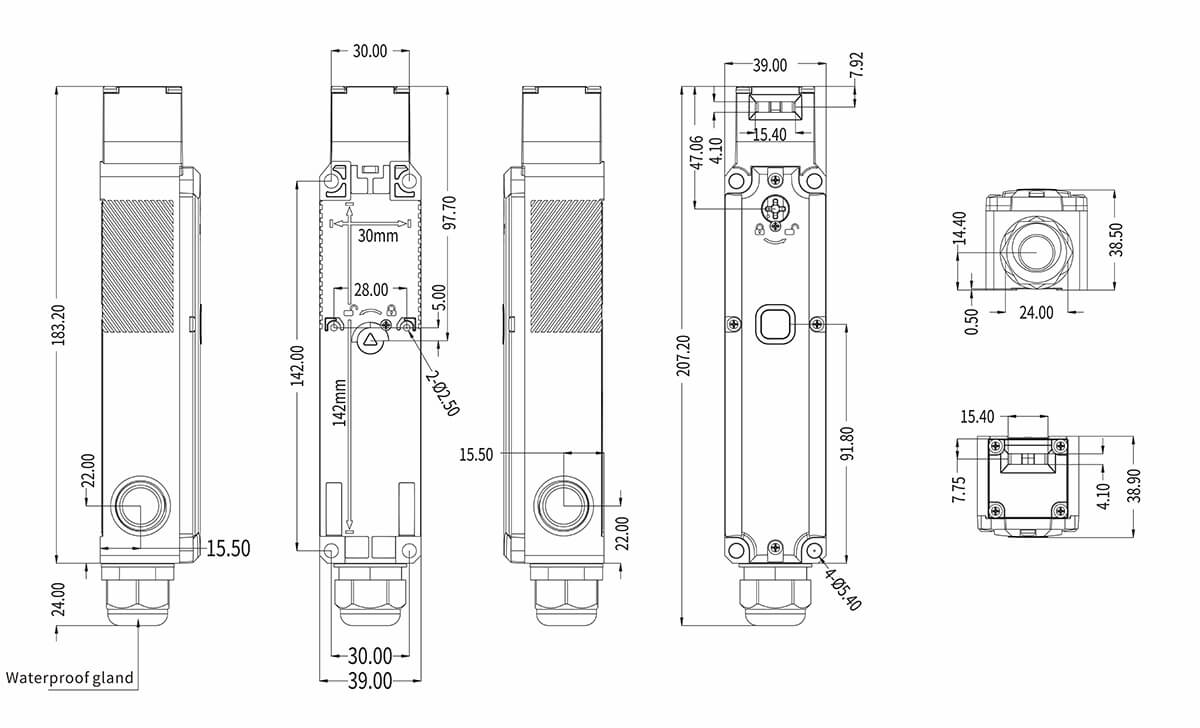

Note: This is a size diagram for a rear release function.

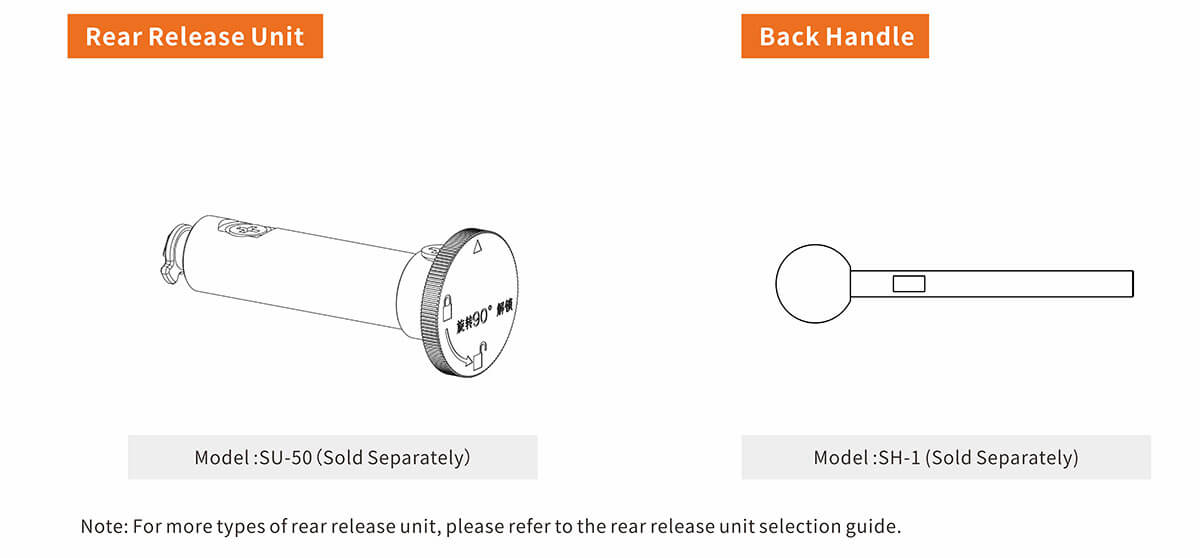

 Rear Release Unit

SLM13 Safety Door Switch

  Installation and Matching Instruction

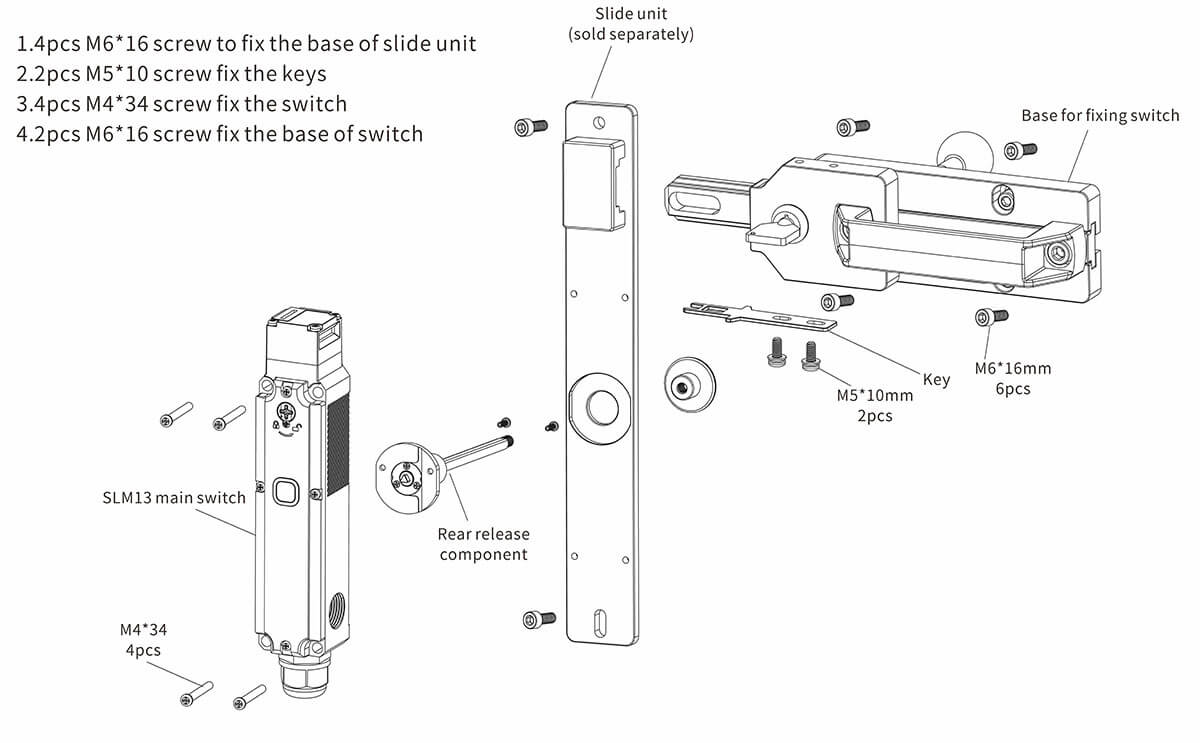

  Diagram of EMB-M04 safety bolt with a rotating rear release unit.

SLM13 Safety Door Switch

 Installation and MatchingInstruction

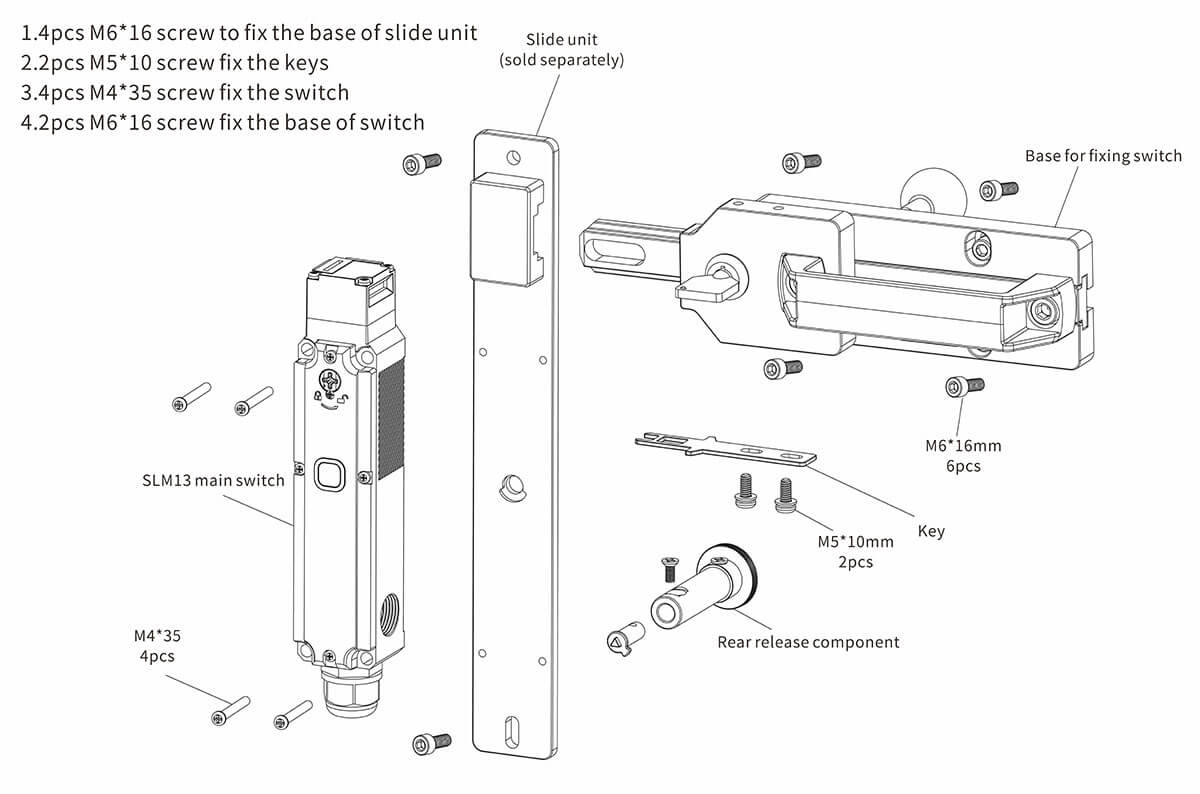

 Diagram of EMB-M05 safety bolt with a rotating rear release unit.

SLM13 Safety Door Switch

Option for Brackets

Installation picture

Bracket Name

Brackets Size

Loosen 4 screw on top of head, rotate the head to the right key inserting position and then install it.

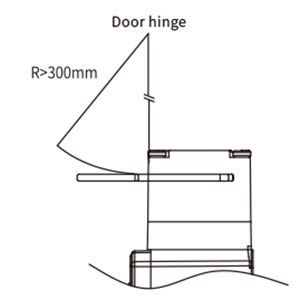

When install on side hung door, it should be over than semidiameter



Please install the safety switch door and insertion key under range 1-3.5mm



The installation of operation key allows ±1mm error within the key insertion center of the hole



No rearrelease unit (Plastic)

Magnetic voltage /

 indicato

Lock/ Release

 method

Contact type (door

 monitor + lock monitor)

Connector

 size

Model

Electromagnetic

DC24V

Green LED


Power torelease

1NC/1NO+1NC/1NOM20*1.5SLM13-APE
1NC/1NO+2NCM20*1.5SLM13-BPE
2NC+1NC/1NOM20*1.5SLM13-CPE
2NC+2NCM20*1.5SLM13-DPE
1NC/2NO+1NCM20*1.5SLM13-EPE
3NC+1NCM20*1.5SLM13-FPE
2NC/1NO+1NCM20*1.5SLM13-GPE
1NC+3NCM20*1.5SLM13-HPE
1NC+1NC/2NOM20*1.5SLM13-IPE
1NC+2NC/1NOM20*1.5SLM13-JPE
1NO+3NCM20*1.5SLM13-KPE
1NO+2NC/1NOM20*1.5SLM13-LPE
1NC+1NC
M20*1.5SLM13-MPE
1NO+1NCM20*1.5SLM13-NPE

Power to lock

1NC/1NO+1NC/1NOM20*1.5SLM13-APM
1NC/1NO+2NCM20*1.5SLM13-BPM
2NC+1NC/1NOM20*1.5SLM13-CPM
2NC+2NCM20*1.5SLM13-DPM
1NC/2NO+1NCM20*1.5SLM13-EPM
3NC+1NCM20*1.5SLM13-FPM
2NC/1NO+1NCM20*1.5SLM13-GPM
1NC+3NCM20*1.5SLM13-HPM
1NC+1NC/2NOM20*1.5SLM13-IPM
1NC+2NC/1NOM20*1.5SLM13-JPM
1NO+3NCM20*1.5SLM13-KPM
1NO+2NC/1NOM20*1.5SLM13-LPM
1NC+1NC
M20*1.5SLM13-MPM
1NO+1NCM20*1.5SLM13-NPM


No rearrelease unit (Metal)

Magnetic voltage /

 indicato

Lock/ Release

 method

Contact type (door

 monitor + lock monitor)

Connector

 size

Model

Electromagnetic

DC24V

Green LED


Power torelease

1NC/1NO+1NC/1NOM20*1.5SLM13-AME
1NC/1NO+2NCM20*1.5SLM13-BME
2NC+1NC/1NOM20*1.5SLM13-CME
2NC+2NCM20*1.5SLM13-DME
1NC/2NO+1NCM20*1.5SLM13-EME
3NC+1NCM20*1.5SLM13-FME
2NC/1NO+1NCM20*1.5SLM13-GME
1NC+3NCM20*1.5SLM13-HME
1NC+1NC/2NOM20*1.5SLM13-IME
1NC+2NC/1NOM20*1.5SLM13-JME
1NO+3NCM20*1.5SLM13-KME
1NO+2NC/1NOM20*1.5SLM13-LME
1NC+1NC
M20*1.5SLM13-MME
1NO+1NCM20*1.5SLM13-NME

Power to lock

1NC/1NO+1NC/1NOM20*1.5SLM13-AMM
1NC/1NO+2NCM20*1.5SLM13-BMM
2NC+1NC/1NOM20*1.5SLM13-CMM
2NC+2NCM20*1.5SLM13-DMM
1NC/2NO+1NCM20*1.5SLM13-EMM
3NC+1NCM20*1.5SLM13-FMM
2NC/1NO+1NCM20*1.5SLM13-GMM
1NC+3NCM20*1.5SLM13-HMM
1NC+1NC/2NOM20*1.5SLM13-IMM
1NC+2NC/1NOM20*1.5SLM13-JMM
1NO+3NCM20*1.5SLM13-KMM
1NO+2NC/1NOM20*1.5SLM13-LMM
1NC+1NC
M20*1.5SLM13-MMM
1NO+1NCM20*1.5SLM13-NMM


Rearrelease unit (Plastic)

Magnetic voltage/

 indicator

Lock/ Release

 method

Contact type (door

monitor + lock monitor)

Connector

 size

Model

Electromagnetic

DC24V

Green LED


Power to release

1NC/1NO+1NC/1NOM20*1.5SLM13-APE-B
1NC/1NO+2NCM20*1.5SLM13-BPE-B
2NC+1NC/1NOM20*1.5SLM13-CPE-B
2NC+2NCM20*1.5SLM13-DPE-B
1NC/2NO+1NCM20*1.5SLM13-EPE-B
3NC+1NCM20*1.5SLM13-FPE-B
2NC/1NO+1NCM20*1.5SLM13-GPE-B
1NC+3NCM20*1.5SLM13-HPE-B
1NC+1NC/2NOM20*1.5SLM13-IPE-B
1NC+2NC/1NOM20*1.5SLM13-JPE-B
1NO+3NCM20*1.5SLM13-KPE-B
1NO+2NC/1NOM20*1.5SLM13-LPE-B
1NC+1NCM20*1.5SLM13-MPE-B
1NO+1NCM20*1.5SLM13-NPE-B

Power to lock

1NC/1NO+1NC/1NOM20*1.5SLM13-APM-B
1NC/1NO+2NCM20*1.5SLM13-BPM-B
2NC+1NC/1NOM20*1.5SLM13-CPM-B
2NC+2NCM20*1.5SLM13-DPM-B
1NC/2NO+1NCM20*1.5SLM13-EPM-B
3NC+1NCM20*1.5SLM13-FPM-B
2NC/1NO+1NCM20*1.5SLM13-GPM-B
1NC+3NCM20*1.5SLM13-HPM-B
1NC+1NC/2NOM20*1.5SLM13-IPM-B
1NC+2NC/1NOM20*1.5SLM13-JPM-B
1NO+3NCM20*1.5SLM13-KPM-B
1NO+2NC/1NOM20*1.5SLM13-LPM-B
1NC+1NCM20*1.5SLM13-MPM-B
1NO+1NCM20*1.5SLM13-NPM-B


Rearrelease unit (Metal)

Magnetic voltage/

 indicator

Lock/ Release

 method

Contact type (door

monitor + lock monitor)

Connector

 size

Model

Electromagnetic

DC24V

Green LED


Power to release

1NC/1NO+1NC/1NOM20*1.5SLM13-AME-B
1NC/1NO+2NCM20*1.5SLM13-BME-B
2NC+1NC/1NOM20*1.5SLM13-CME-B
2NC+2NCM20*1.5SLM13-DME-B
1NC/2NO+1NCM20*1.5SLM13-EME-B
3NC+1NCM20*1.5SLM13-FME-B
2NC/1NO+1NCM20*1.5SLM13-GME-B
1NC+3NCM20*1.5SLM13-HME-B
1NC+1NC/2NOM20*1.5SLM13-IME-B
1NC+2NC/1NOM20*1.5SLM13-JME-B
1NO+3NCM20*1.5SLM13-KME-B
1NO+2NC/1NOM20*1.5SLM13-LME-B
1NC+1NCM20*1.5SLM13-MME-B
1NO+1NCM20*1.5SLM13-NME-B

Power to lock

1NC/1NO+1NC/1NOM20*1.5SLM13-AMM-B
1NC/1NO+2NCM20*1.5SLM13-BMM-B
2NC+1NC/1NOM20*1.5SLM13-CMM-B
2NC+2NCM20*1.5SLM13-DMM-B
1NC/2NO+1NCM20*1.5SLM13-EMM-B
3NC+1NCM20*1.5SLM13-FMM-B
2NC/1NO+1NCM20*1.5SLM13-GMM-B
1NC+3NCM20*1.5SLM13-HMM-B
1NC+1NC/2NOM20*1.5SLM13-IMM-B
1NC+2NC/1NOM20*1.5SLM13-JMM-B
1NO+3NCM20*1.5SLM13-KMM-B
1NO+2NC/1NOM20*1.5SLM13-LMM-B
1NC+1NCM20*1.5SLM13-MMM-B
1NO+1NCM20*1.5SLM13-NMM-B
