Technical Parameter
| Model | LGA60N4 | LGA60N5 |
| Working range | 0.1m~6m （＠1.8%） | |
| 0.1m~10m（＠10%） | ||
| 0.1m~30m（＠90%） | ||
| Working angular | 320° | |
| Workking principle | PRT（pulse ranging technology） | |
| Laser class | Class 1 （IEC60825-1:2014） | |
| Laser wavelength | 905nm | |
| Pulse time | 5ns | |
| Sampling rate | 144 Khz | 432KHz |
| Scan frequency | 10Hz、20Hz | 15Hz、30Hz |
| Ambient light immunity | <100000 Lux | xn700008> |
| Measurement accuracy | ±20mm | |
| Repeatability | ±20mm | |
| Angular resolution | 0.025°,0.025°,0.05°,0.1°,0.25°,0.5° | |
| Measurement resolution | 1mm | |
| Power supply | DC10V~30V | DC15V~30V |
| Working current | 90 mA | 120 mA |
| Rated consumption | <3W | <3W |

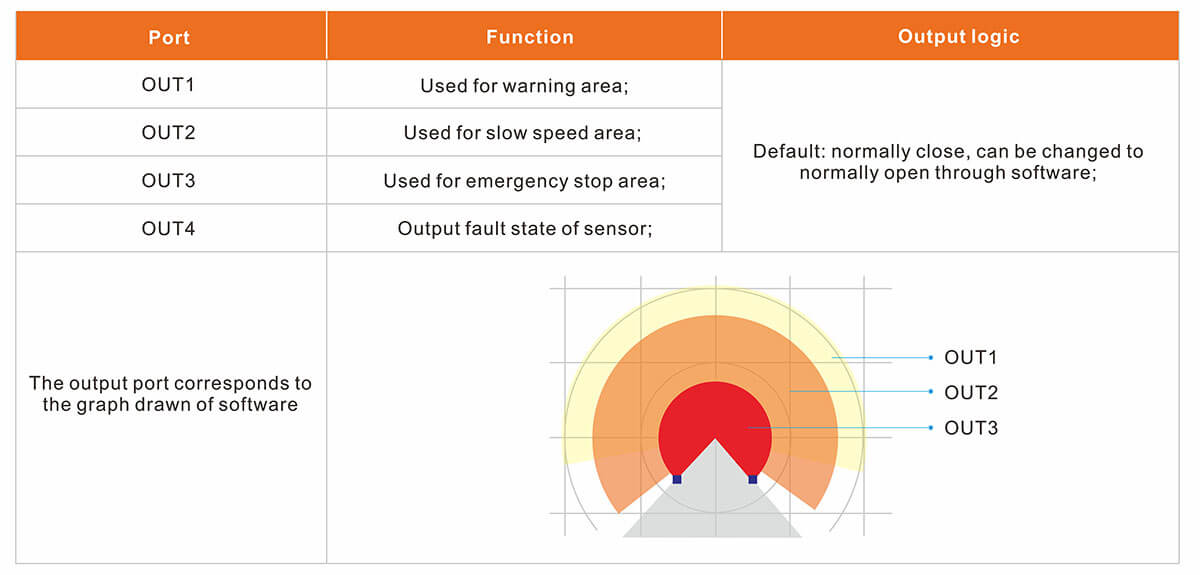

| Interface | 3 NPN output signal or fault of red & orange area) | 4 NPNinput,4 NPNoutput (output signal or fault of red & orange &yellow area) |
| Ethernet TCP/UDP | ||
| Working indicator | Green | |
| Outputindicator | Red,yellow,orange | |
| Ambient temperature | -10C-55℃ | -25℃-50C |
| Ambient humidity | Less than 80%RH | |
| Storage temperature | -25℃-70℃ | |
| Mechanical protection | IP65 | |
| Wire port | Rj45 ethernet | |
| Material | Aluminum alloy (base) | |
| PUMA (Scanning window) | ||
| Sine vibration testing | 10Hz-1000Hz,5g; 10 cycles for each axis(GBT2423.10-2019) | |
| Vibration resistance | 50-250Hz,RMS-42.4m/s2,5h testing for each axis (GBT 2423.56-2018) | |
| Shock resistance | 50g,3ms,5000 times impacts on each axis;(G8T2423.5-2019) | |
| Productsize | 60*60*83.5mm | 60*60*83.9mm |
| Cable length | 2m ethernet cable, 1.5m cable of power & IO | 1m ethernet cable, lm cable of power & IO |

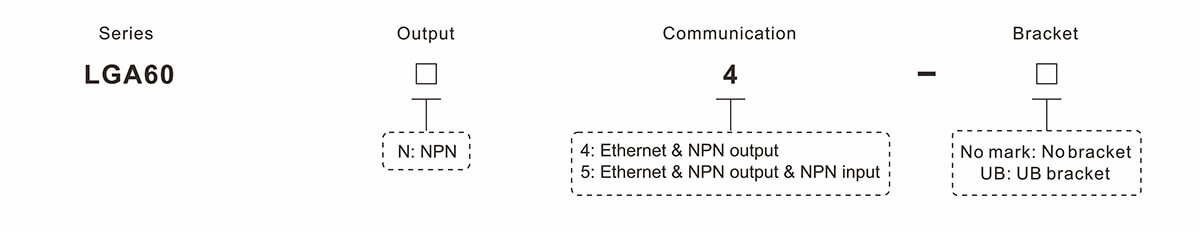

Explanation of Model Number
| Application case | |
 |  |
Battery change station Outdoor usefor vehicle guidance,battery positioning. | AGV navigation/obstacle avoidance AGVtrolley,navigation and obstacle avoidance integrated. |
 |  |
Industrial automation safety protection Area protection and warning in industrial automation application. | Area safety protection Areaprotection and warning in large and complicated application. |

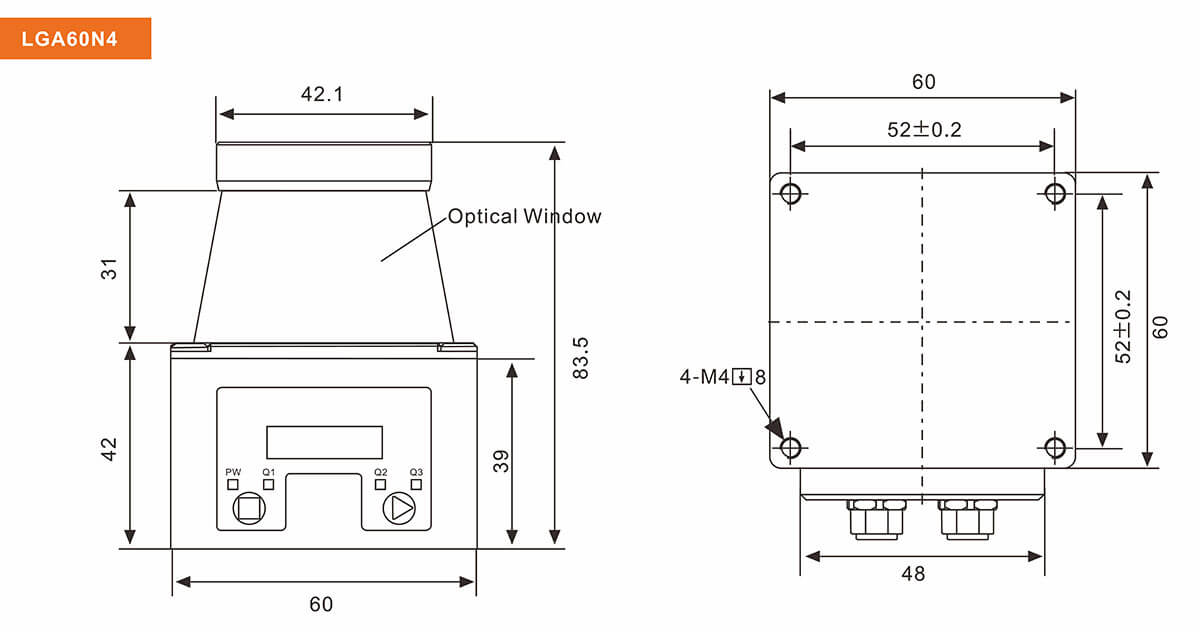

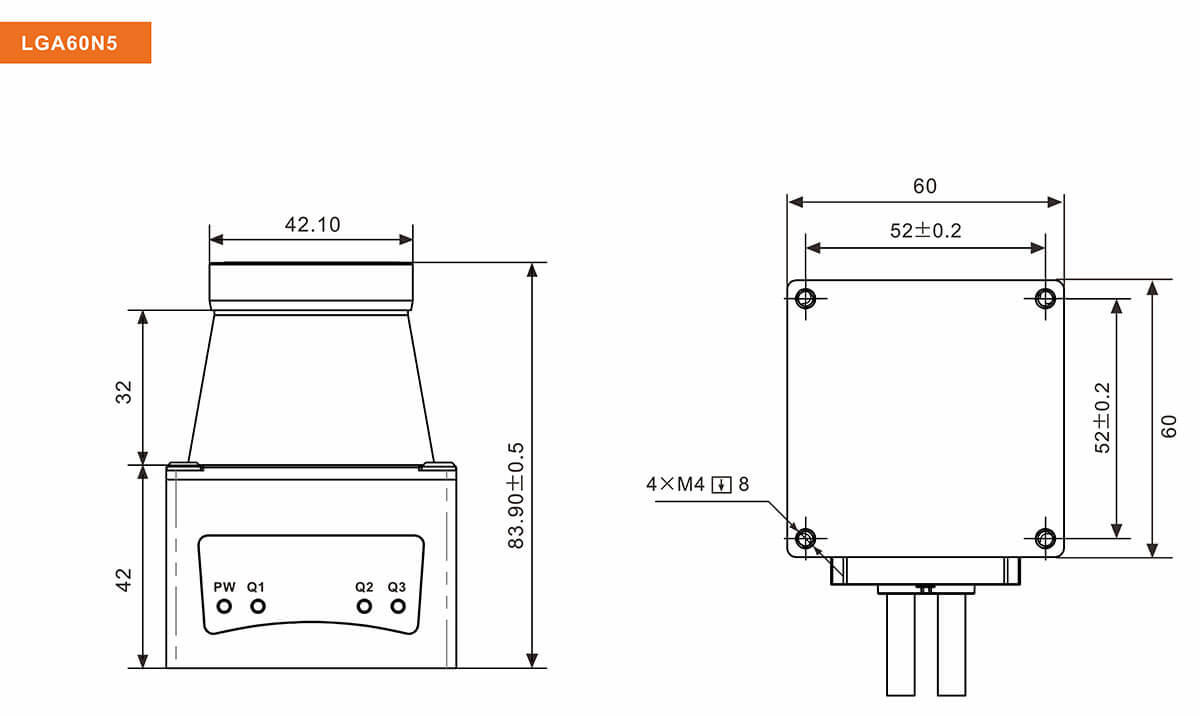

Product Size

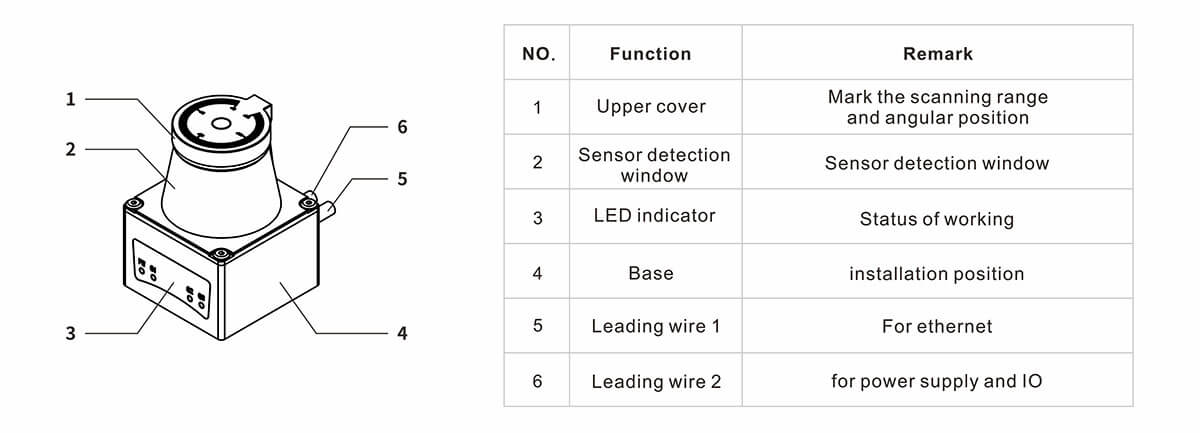

| Assembly unit specification | |||
 | Serial NO | Function | Remark |
| 1 | Upper cover | Mark the scanningrangeand angular position | |
| 2 | Sensor detection window | Sensor detection window | |
| 3 | LED indicator | Status of working | |
| 4 | Base | Installation position | |
| 5 | Wire 1 | Forethernet | |
| 6 | Wire 2 | For power supply and IO | |

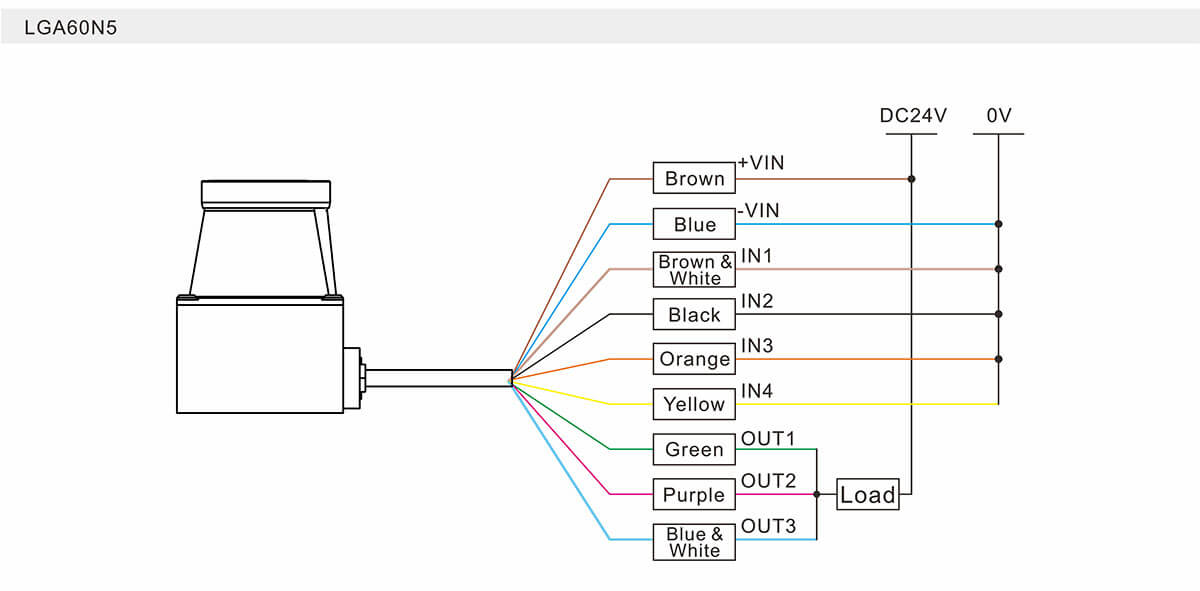

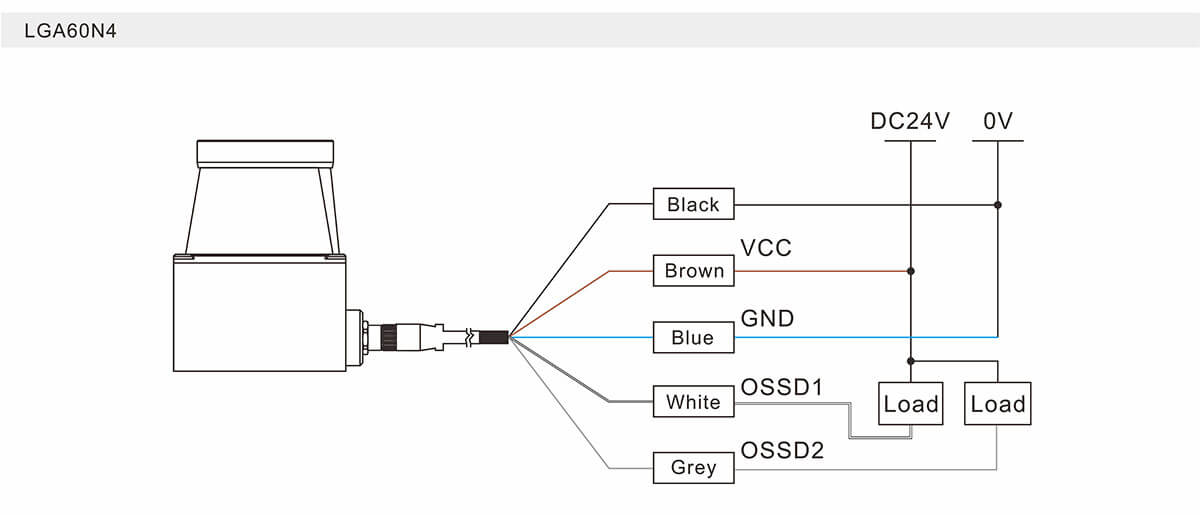

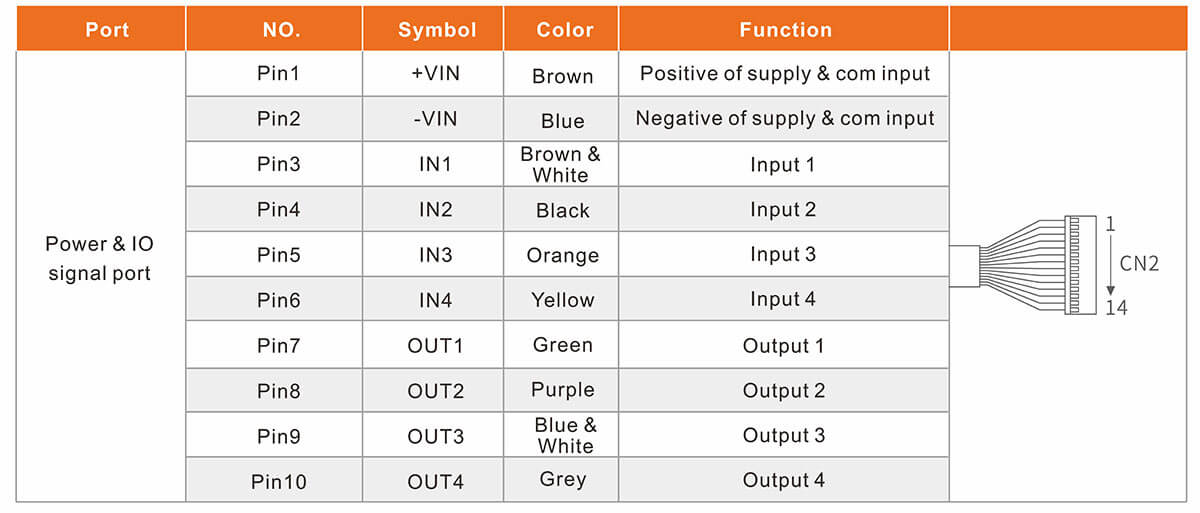

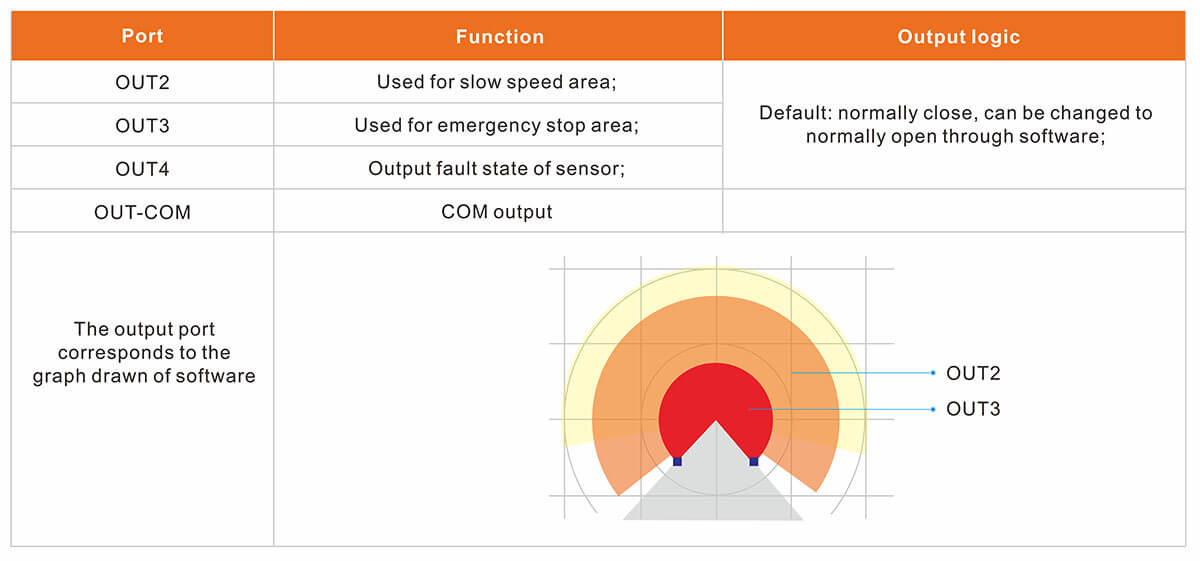

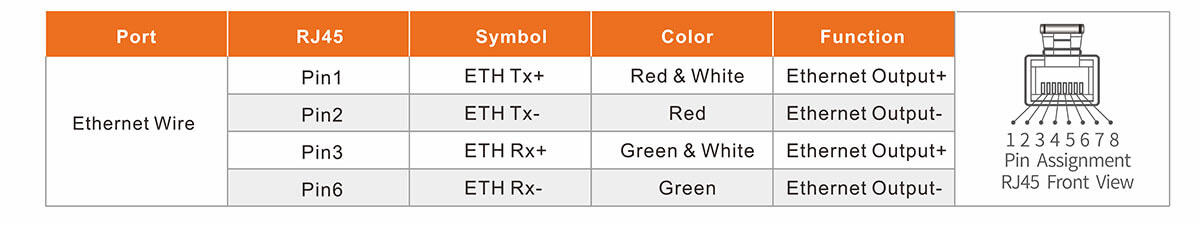

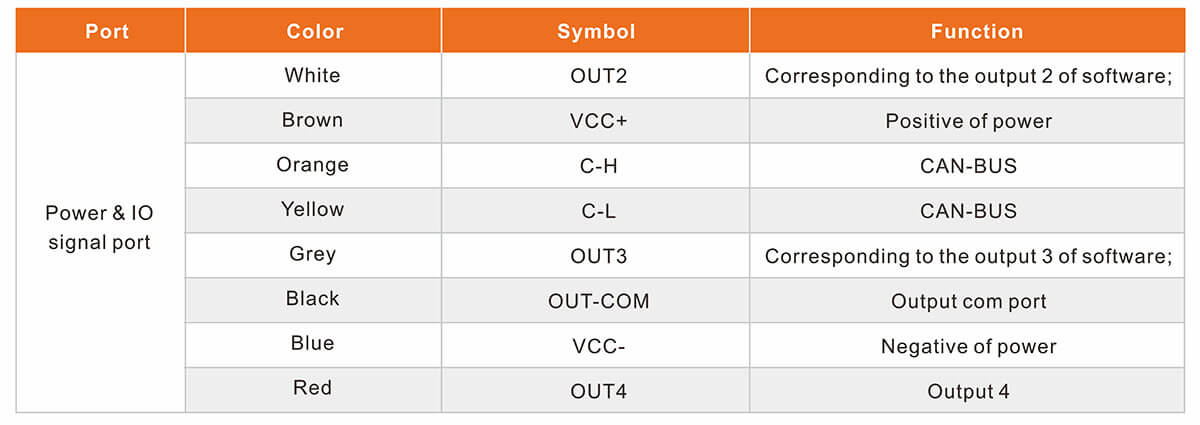

Connection diagram
| Application | |
 |  |
| Smallspace and complex protection area. | Movable protection area, AGVtrolley, gantry crane. |
 |  |
| Large protection area, high accuracy requirement. | Safety protection of welding application, even though various interference. |
Option for Brackets
Serial NO
Brackets
Ushape brackets-UB
Vibration absorb-JX
