In the field of industrial automation, the safety of personnel and equipment is the primary prerequisite for production. The ESV series type 4 safety light curtains, as a high-performance safety protection product, provide reliable safety assurance for various types of machinery and equipment with their superior safety, flexible configuration, and powerful functions. This article will comprehensively introduce the product features, technical parameters, selection guide, and installation methods of the ESV series safety light curtains, helping you choose the most suitable safety protection solution for your equipment.
Key Product Features: Why Choose the ESV Series?
The ESV series safety light curtains are designed in strict accordance with the highest international safety standards and integrate multiple advanced technologies to ensure stable operation in complex industrial environments.
1. Highest Safety Level Certification: The product complies with IEC61496-1/-2 Type 4 and ISO13849-1 Cat.4/PL e safety standards, providing the highest level of safety performance and effectively reducing equipment risks.
2. Comprehensive Self-Testing and Redundancy Design: The internal circuitry employs a periodic dual mutual testing mechanism, combined with dual-loop redundant output (OSSD). Each output channel has a self-diagnostic pulse, capable of real-time detection of output over-current, power short circuits, and mutual short circuits, ensuring that safety functions are always effective.
3. Advanced EDM External Device Monitoring: This function can dynamically monitor the signals of external devices (such as safety relays and contactors) connected to the raster output, promptly detecting faults in external components and preventing safety function failures due to relay contact sticking, building a deeper layer of security.
4. Flexible Synchronization and Reset Methods: Supports both optical and wired synchronization methods to adapt to different installation environments and wiring requirements. It also provides an interlocking reset function (manual/automatic selectable), facilitating integration into various safety control logic of the equipment.
5. Superior Anti-interference Capability: Utilizing an optical angle design of less than 2.5° and possessing an anti-light interference capability of up to 10,000 Lux, it effectively avoids interference from ambient light (such as sunlight and welding light), improving system stability.
6. Versatile Installation Adaptability: Offers both end cap mounting (Q2 bracket) and slider side mounting (L1 bracket) options, flexibly adapting to various mechanical structures, simplifying installation, and saving space.
Application Scenarios

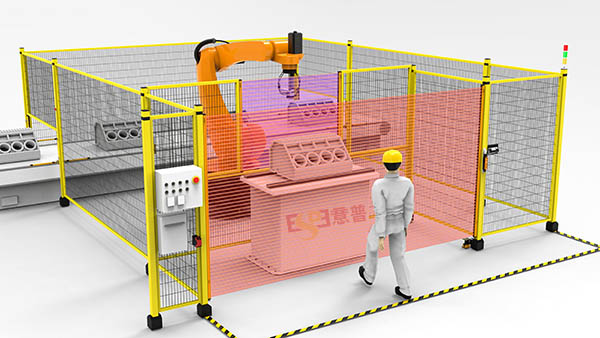

The ESV series type 4 safety light curtains are widely used in: Hazardous area protection for stamping equipment and injection molding machines Safety fencing for robot work cells Entrance protection for assembly lines and packaging lines Hazard isolation in logistics sorting systems Any industrial situation requiring protection to prevent personnel from contact with dangerous moving parts.
The ESV series of type 4 safety light curtains, with its top safety certifications, comprehensive self-diagnostic capabilities, flexible configuration options, and robust structural design, is the ideal choice for industrial safety protection. Whatever safety challenges your equipment faces, the ESV series provides a reliable, compliant, and easy-to-integrate solution. For more product information or customized solutions, please contact ESPE technical support team.
