Technical Parameters
| Parameter of safety light curtain | |
| Power supply | DC12V-30V |
| Capacity | <5W |
| Detection precision | 2.5mm, 5mm, 10mm, 20mm, 40mm |
| Beam space | 2.5mm: 32, 64, 96……480 5mm: 16, 24, 32……640 10mm: 16, 24, 32……400 20mm: 16, 24, 32··· …240 40mm: 8, 16, 24··· …120 |
| Detection height | Detection height= (N-1)* beam space, N is beam quantity |
| Wave length | 940nm |
| Output signal | Switch quantity: NPN , PNP Analog quantity: 0-5V, 0-10V, 4-20mA |
| Anti-optical interference | 10000Lux(angle>5°) |
| Communication method | Rs485, Rs232 Baud rate: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps Protocol: Modbus-RTU Data mode: active mode/ passive mode |
| Sensing method | Through-beam type |
| Sensing distance | 2.5mm space: 0.1-2m (remark: if have light reflection, please let us know) 5mm space: 0.1-4m (remark: if have light reflection, please let us know) 10mm space: 0.1-20m (remark: if have light reflection, please let us know) 20mm space: 0.1-20m (remark: if have light reflection, please let us know) 40mm space: 0.1-20m (remark: if have light reflection, please let us know) |
| Synchronization | Wire synchronization |
| Enclosure material | Aluminum alloy |
| Enclosure rating | IP65 |
| Sectional size | 35.8*45mm |
| Ambient operating temperature | -10°C-55°C(with no freezing) |
| Storage temperature | -30°C-70°C(with no freezing) |
| Ambient operating humidity | Whentemperatureis20°C, humidity max 85% |

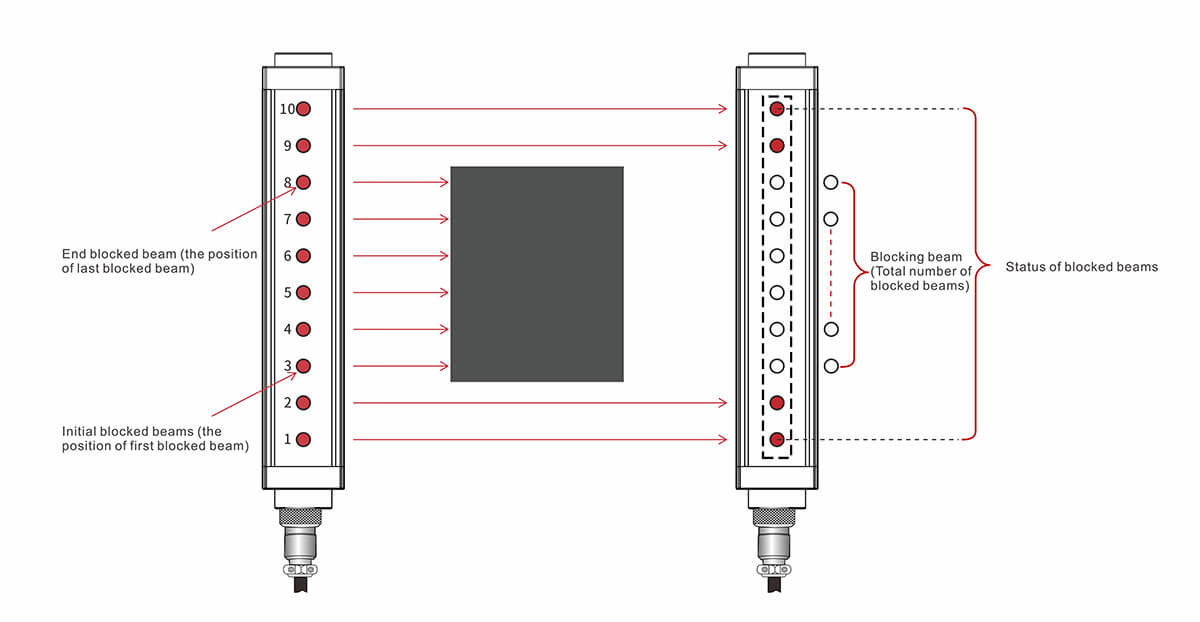

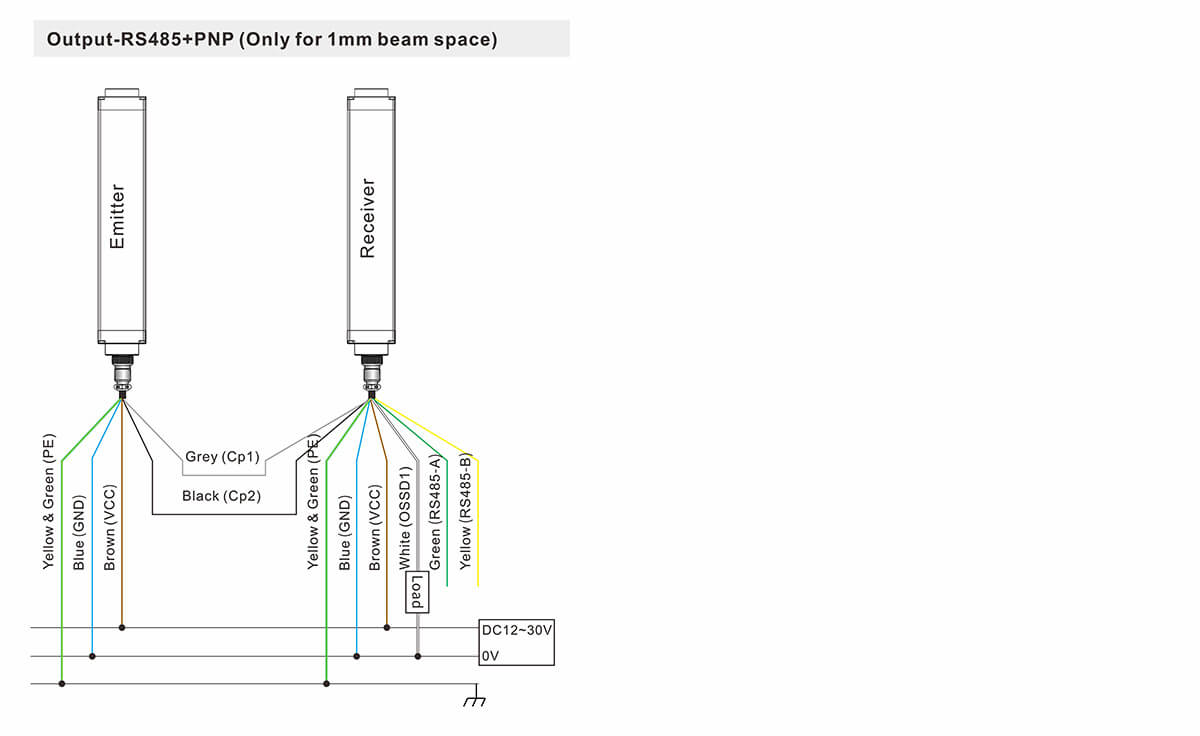

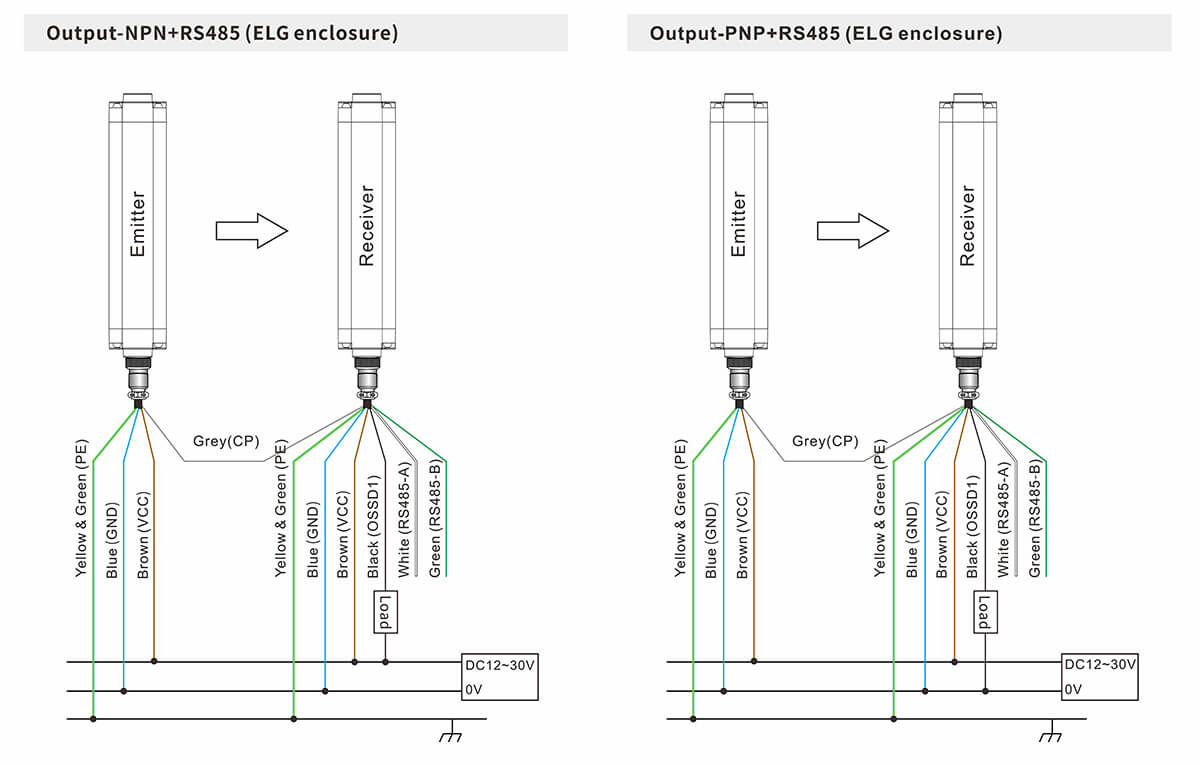

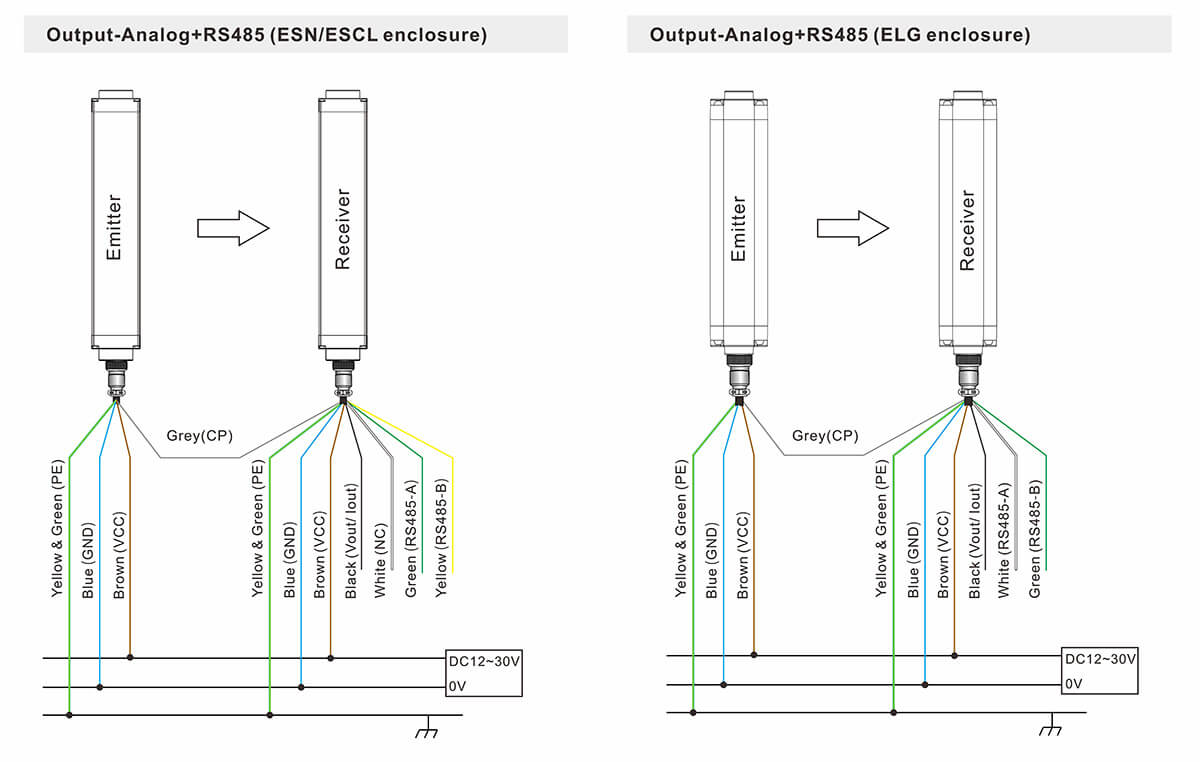

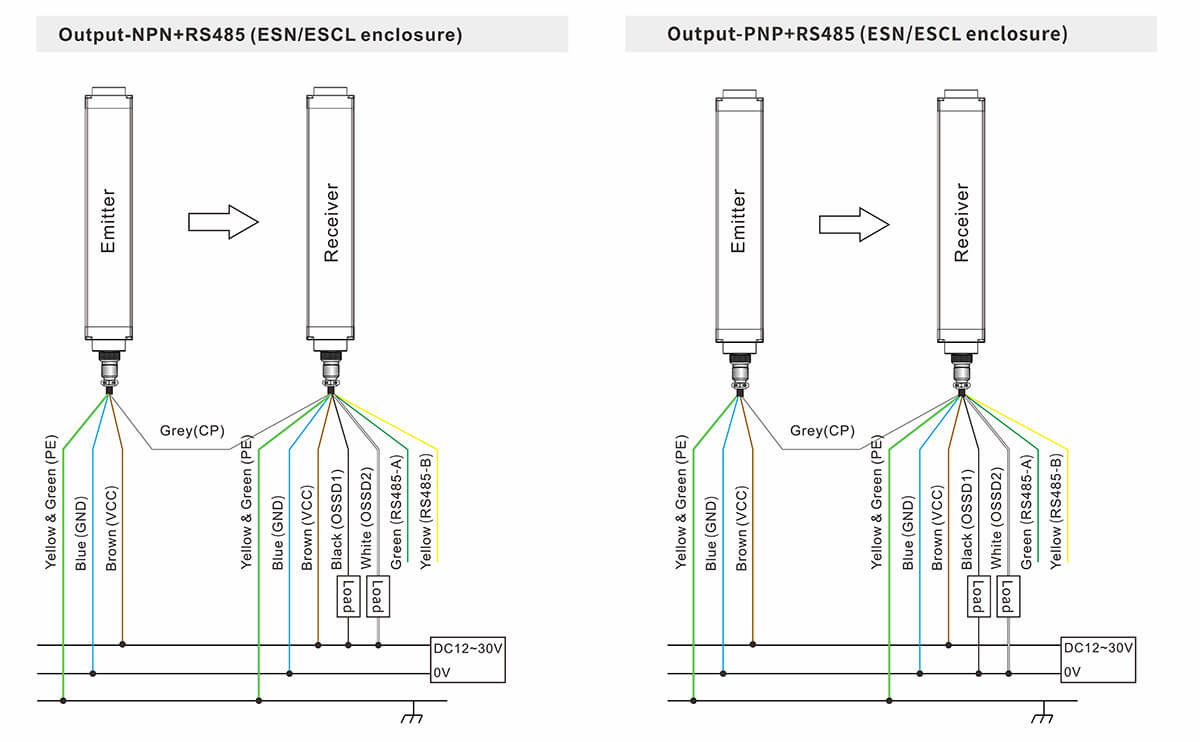

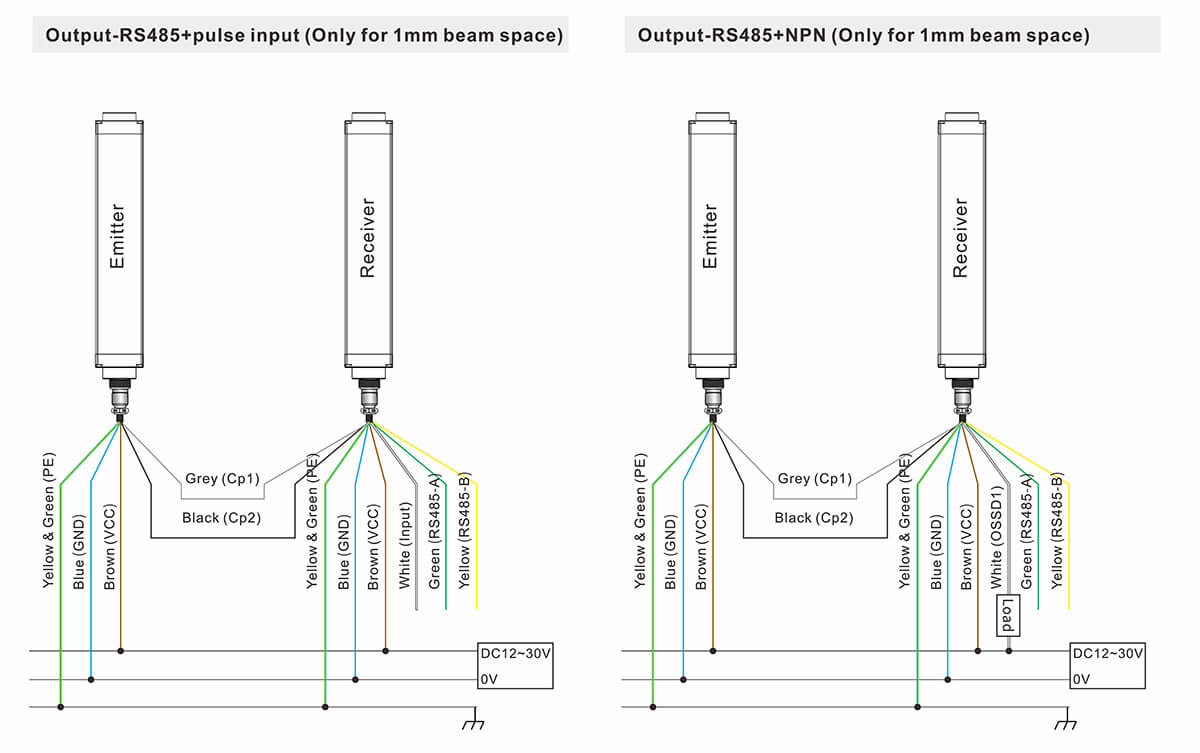

Wire Connection

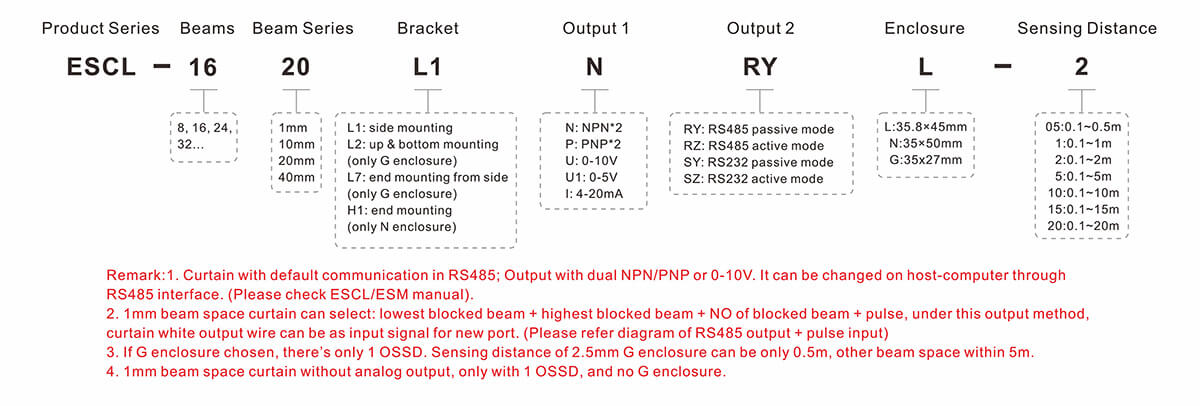

Explanation of Model Number

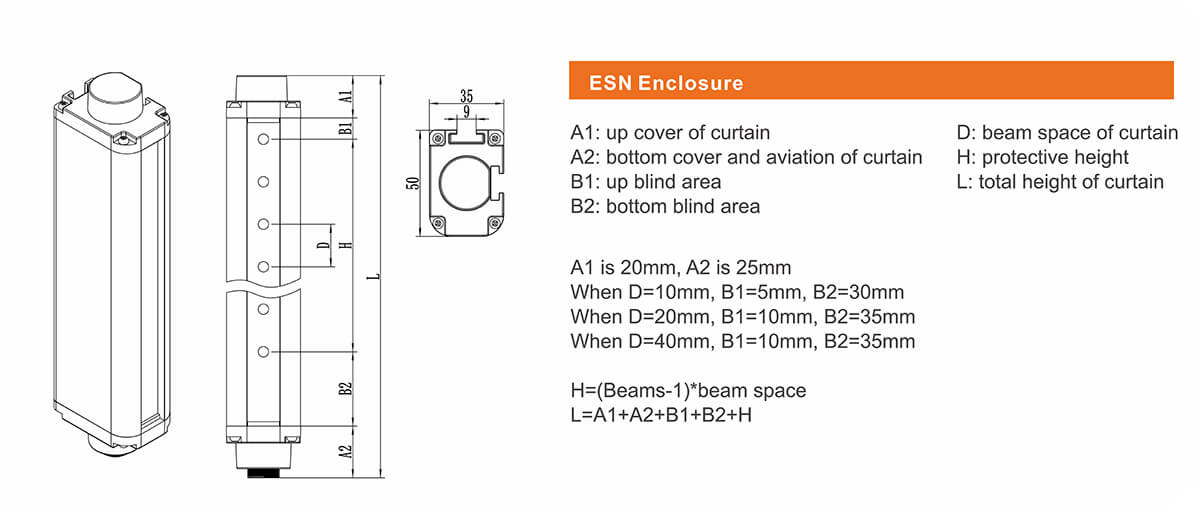

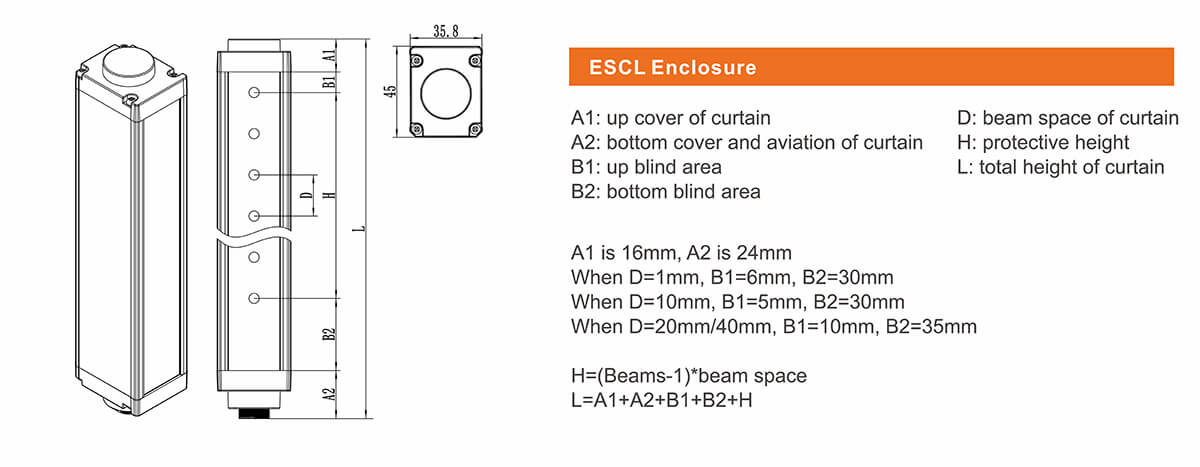

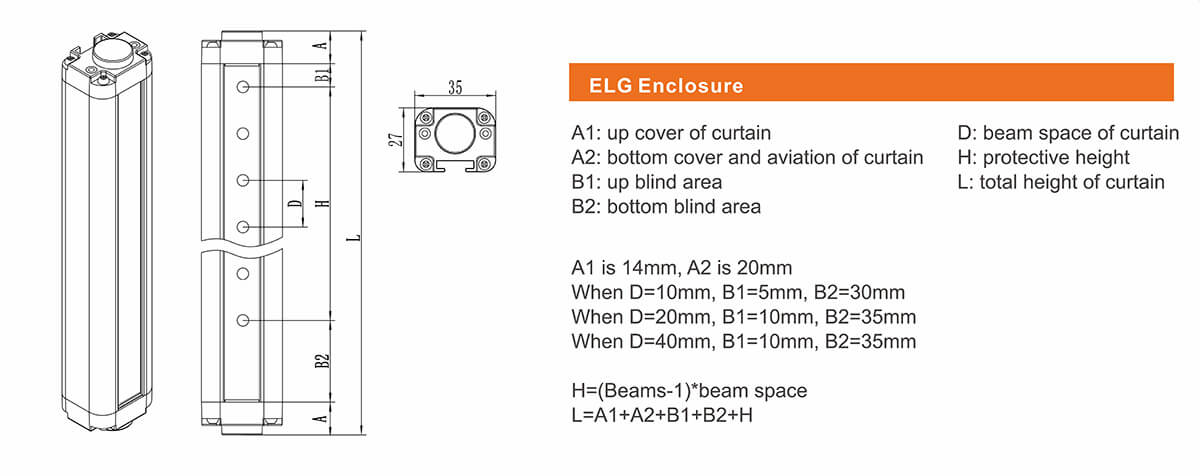

Product Size
A1: Upper cover A2:Bottom cover B1: Upper stop-work range B2: Bottom stop-work range D: Beam space H: Protective height L: Total height | A1=16mm;A2=24mm When D=2.5mm,B1=6.25mm,B2=81.25mm When D=5mm,B1=7.5mm.B2=42.5mm When D=10mm, B1=5mm,B2=30mm When D=20/40mm,B1=10mm,B2=35mm H is protective height: H=(beams-1) * beam space L is total height: L=A1+A2+B1+B2+H |

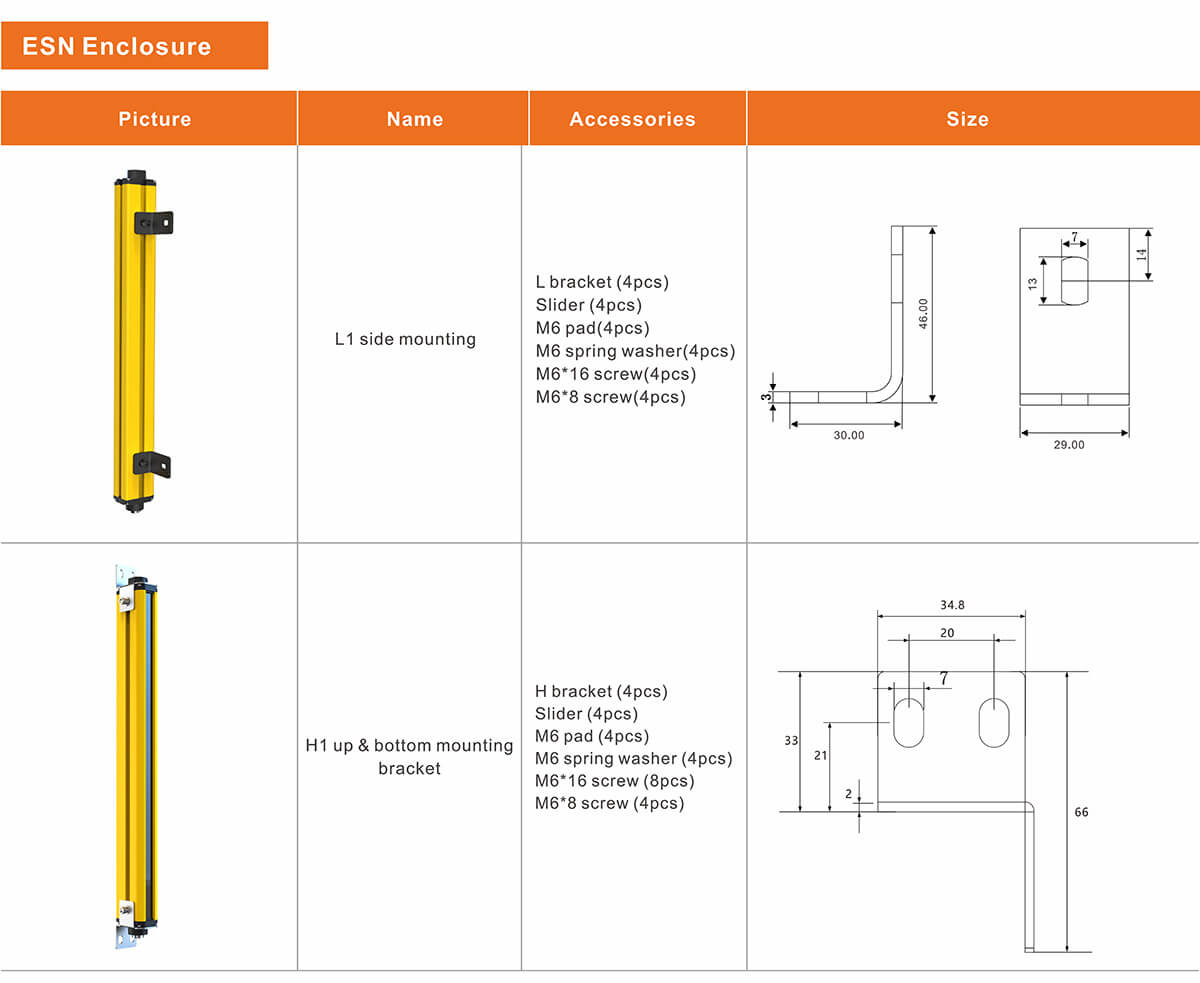

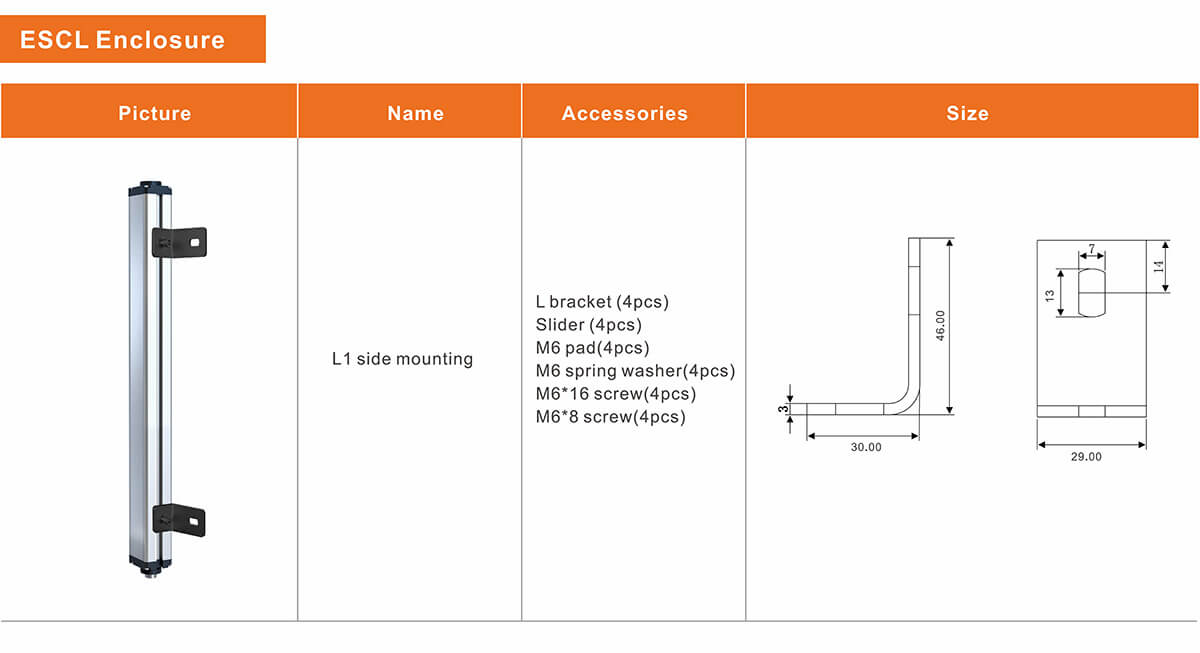

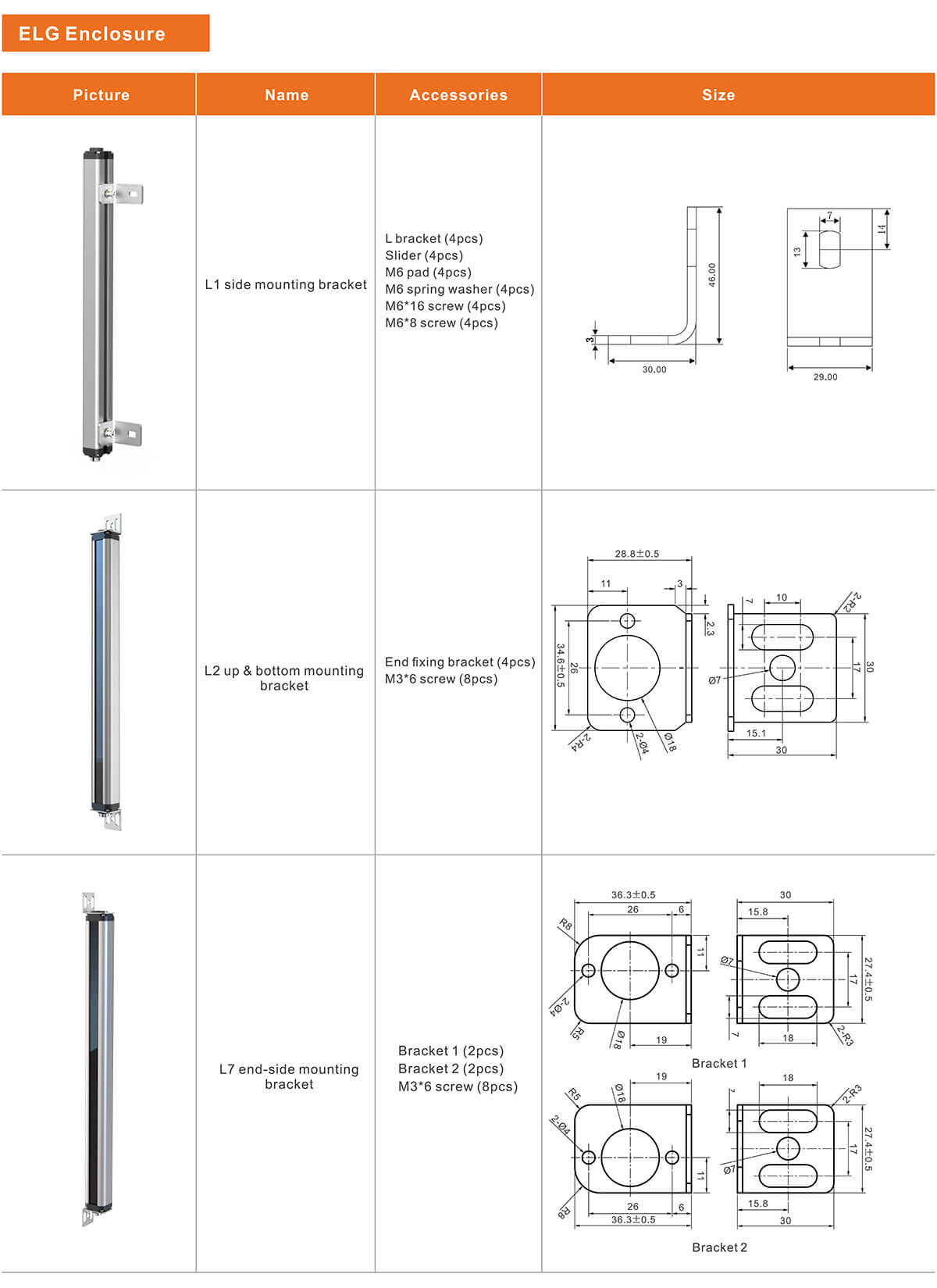

Option for Brackets
Installation picture
Bracket Name
Brackets Size
1. L type brackets(4 pcs)
2. Slide block (4pcs)
3. M6 grommet (4 pcs)
4. M6 pad(4 pcs)
5. M6*16 screw(4 pcs)
6. M6*8 screw(4 pcs)
Beam space 2.5mm
| Beams | Detection Height (mm) | Total Height (mm) | Model | 3D File |
| 64 | 157.5 | 285 | ESCL64025 | Download |
| 96 | 237.5 | 365 | ESCL96025 | Download |
| 128 | 317.5 | 445 | ESCL128025 | Download |
| 160 | 397.5 | 525 | ESCL160025 | Download |
| 192 | 477.5 | 605 | ESCL192025 | Download |
| 224 | 557.5 | 685 | ESCL224025 | Download |
| 256 | 637.5 | 765 | ESCL256025 | Download |
| 288 | 717.5 | 845 | ESCL288025 | Download |
| 320 | 797.5 | 925 | ESCL320025 | Download |
| 352 | 877.5 | 1005 | ESCL352025 | Download |
| 384 | 957.5 | 1085 | ESCL384025 | Download |
| 416 | 1037.5 | 1165 | ESCL416025 | Download |
| 448 | 1117.5 | 1245 | ESCL448025 | Download |
| 480 | 1197.5 | 1325 | ESCL480025 | Download |
Beam space 5mm
| Beams | Detection Height(mm) | Total Height(mm) | Model | 3D File |
| 16 | 75 | 165 | ESCL1605 | Download |
| 24 | 115 | 205 | ESCL2405 | Download |
| 32 | 155 | 245 | ESCL2405 | Download |
| 40 | 195 | 285 | ESCL4005 | Download |
| 48 | 235 | 325 | ESCL4805 | Download |
| 56 | 275 | 365 | ESCL5605 | Download |
| 64 | 315 | 405 | ESCL6405 | Download |
| 72 | 355 | 445 | ESCL7205 | Download |
| 80 | 395 | 485 | ESCL8005 | Download |
| 88 | 435 | 525 | ESCL8805 | Download |
| 96 | 475 | 565 | ESCL9605 | Download |
| 104 | 515 | 605 | ESCL10405 | Download |
| 112 | 555 | 645 | ESCL11205 | Download |
| 120 | 595 | 685 | ESCL12005 | Download |
| 128 | 635 | 725 | ESCL12805 | Download |
| 136 | 675 | 765 | ESCL13605 | Download |
| 144 | 715 | 805 | ESCL14405 | Download |
| 152 | 755 | 845 | ESCL15205 | Download |
| 160 | 795 | 885 | ESCL16005 | Download |
| 168 | 835 | 925 | ESCL16805 | Download |
| 176 | 875 | 965 | ESCL17605 | Download |
| 184 | 915 | 1005 | ESCL18405 | Download |
| 192 | 955 | 1045 | ESCL19205 | Download |
| 200 | 995 | 1085 | ESCL20005 | Download |
| 208 | 1035 | 1125 | ESCL20805 | Download |
| 216 | 1075 | 1165 | ESCL21605 | Download |
| 224 | 1115 | 1205 | ESCL22405 | Download |
| 232 | 1155 | 1245 | ESCL23205 | Download |
| 240 | 1195 | 1285 | ESCL24005 | Download |
| 248 | 1235 | 1325 | ESCL24805 | Download |
| 256 | 1275 | 1365 | ESCL25605 | Download |
Beam space 10mm
| Beams | Detection Height(mm) | Total Height(mm) | Model | 3D File |
| 16 | 150 | 225 | ESCL1610 | Download |
| 24 | 230 | 305 | ESCL2410 | Download |
| 32 | 310 | 385 | ESCL3210 | Download |
| 40 | 390 | 465 | ESCL4010 | Download |
| 48 | 470 | 545 | ESCL4810 | Download |
| 56 | 550 | 625 | ESCL5610 | Download |
| 64 | 630 | 705 | ESCL6410 | Download |
| 72 | 710 | 785 | ESCL7210 | Download |
| 80 | 790 | 865 | ESCL8010 | Download |
| 88 | 870 | 945 | ESCL8810 | Download |
| 96 | 950 | 1025 | ESCL9610 | Download |
| 104 | 1030 | 1105 | ESCL10410 | Download |
| 112 | 1110 | 1185 | ESCL11210 | Download |
| 120 | 1190 | 1265 | ESCL12010 | Download |
| 128 | 1270 | 1345 | ESCL12810 | Download |
| 136 | 1350 | 1425 | ESCL13610 | Download |
| 144 | 1430 | 1505 | ESCL14410 | Download |
| 152 | 1510 | 1585 | ESCL15210 | Download |
| 160 | 1590 | 1665 | ESCL16010 | Download |
| 168 | 1670 | 1745 | ESCL16810 | Download |
| 176 | 1750 | 1825 | ESCL17610 | Download |
| 184 | 1830 | 1905 | ESCL18410 | Download |
| 192 | 1910 | 1985 | ESCL19210 | Download |
| 200 | 1990 | 2065 | ESCL20010 | Download |
| 208 | 2070 | 2145 | ESCL20810 | Download |
| 216 | 2150 | 2225 | ESCL21610 | Download |
| 224 | 2230 | 2305 | ESCL22410 | Download |
| 232 | 2310 | 2385 | ESCL23210 | Download |
| 240 | 2390 | 2465 | ESCL24010 | Download |
| 248 | 2470 | 2545 | ESCL24810 | Download |
| 256 | 2550 | 2625 | ESCL25610 | Download |
Beam space 20mm
| Beams | Detection Height(mm) | Total Height(mm) | Model | 3D File |
| 16 | 300 | 385 | ESCL1620 | Download |
| 24 | 460 | 545 | ESCL2420 | Download |
| 32 | 620 | 705 | ESCL3220 | Download |
| 40 | 780 | 865 | ESCL4020 | Download |
| 48 | 940 | 1025 | ESCL4820 | Download |
| 56 | 1100 | 1185 | ESCL5620 | Download |
| 64 | 1260 | 1345 | ESCL6420 | Download |
| 72 | 1420 | 1505 | ESCL7220 | Download |
| 80 | 1580 | 1665 | ESCL8020 | Download |
| 88 | 1740 | 1825 | ESCL8820 | Download |
| 96 | 1900 | 1985 | ESCL9620 | Download |
| 104 | 2060 | 2145 | ESCL10420 | Download |
| 112 | 2220 | 2305 | ESCL11220 | Download |
| 120 | 2380 | 2465 | ESCL12020 | Download |
| 128 | 2540 | 2625 | ESCL12820 | Download |
| 136 | 2700 | 2785 | ESCL13620 | Download |
| 144 | 2860 | 2945 | ESCL14420 | Download |
| 152 | 3020 | 3105 | ESCL15220 | Download |
| 160 | 3180 | 3265 | ESCL16020 | Download |
| 168 | 3340 | 3425 | ESCL16820 | Download |
| 176 | 3500 | 3585 | ESCL17620 | Download |
| 184 | 3660 | 3745 | ESCL18420 | Download |
| 192 | 3820 | 3905 | ESCL19220 | Download |
| 200 | 3980 | 4065 | ESCL20020 | Download |
| 208 | 4140 | 4225 | ESCL20820 | Download |
| 216 | 4300 | 4385 | ESCL21620 | Download |
| 224 | 4460 | 4545 | ESCL22420 | Download |
| 232 | 4620 | 4705 | ESCL23220 | Download |
| 240 | 4780 | 4865 | ESCL24020 | Download |
Beam space 40mm
| Beams | Detection Height(mm) | Total Height(mm) | Model | 3D File |
| 8 | 280 | 365 | ESCL0840 | Download |
| 12 | 440 | 525 | ESCL1240 | Download |
| 16 | 600 | 685 | ESCL1640 | Download |
| 20 | 760 | 845 | ESCL2040 | Download |
| 24 | 920 | 1005 | ESCL2440 | Download |
| 28 | 1080 | 1165 | ESCL2840 | Download |
| 32 | 1240 | 1325 | ESCL3240 | Download |
| 36 | 1400 | 1485 | ESCL3640 | Download |
| 40 | 1560 | 1645 | ESCL4040 | Download |
| 44 | 1720 | 1805 | ESCL4440 | Download |
| 48 | 1880 | 1965 | ESCL4840 | Download |
| 52 | 2040 | 2125 | ESCL5240 | Download |
| 56 | 2200 | 2285 | ESCL5640 | Download |
| 60 | 2360 | 2445 | ESCL6040 | Download |
| 64 | 2520 | 2605 | ESCL6440 | Download |
| 68 | 2680 | 2765 | ESCL6840 | Download |
| 72 | 2840 | 2925 | ESCL7240 | Download |
| 76 | 3000 | 3085 | ESCL7640 | Download |
| 80 | 3160 | 3245 | ESCL8040 | Download |
| 84 | 3320 | 3405 | ESCL8440 | Download |
| 88 | 3480 | 3565 | ESCL8840 | Download |
| 92 | 3640 | 3725 | ESCL9240 | Download |
| 96 | 3800 | 3885 | ESCL9640 | Download |
| 100 | 3960 | 4045 | ESCL10040 | Download |
| 104 | 4120 | 4205 | ESCL10440 | Download |
| 108 | 4280 | 4365 | ESCL10840 | Download |
| 112 | 4440 | 4525 | ESCL11240 | Download |
| 116 | 4600 | 4685 | ESCL11640 | Download |
| 120 | 4760 | 4845 | ESCL12040 | Download |
